IEC 60840:2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV) – Test methods and requirements

This International Standard IEC 60840:2011 specifies test methods and requirements for power cable systems, cables alone and accessories alone, for fixed installations and for rated voltages above 30 kV (Um = 36 kV) up to and including 150 kV (Um = 170 kV).

The requirements apply to single-core cables and to individually screened three-core cables and to their accessories for usual conditions of installation and operation, but not to special cables and their accessories, such as submarine cables, for which modifications to the standard tests may be necessary or special test conditions may need to be devised.

This standard does not cover transition joints between cables with extruded insulation and paper insulated cables.

LISUN supplies the fully test solutions for the following IEC 60840:2011, please see the below excel table:

IEC 60840:2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV) – Test methods and requirements	LISUN MODEL
Clause 5 Precautions against water penetration in cables	JL-X
Clause 12.5.14 Water penetration test
Clause 8.2 Frequency and waveform of power frequency test voltages	PFM61000-8A
Clause 8.3 Waveform of lightning impulse test voltages	SG61000-5
Clause 10.12&12.4.7&13.2.5 Lightning impulse voltage test
Clause 10.10 Measurement of capacitance	LS6515EN
Clause 12.4.3 Bending test	SW-6
Clause 12.4.6 Heating cycle voltage test	GDJS-015B
Clause 13.2.4 Heating cycle voltage test
Clause 13.3.2.4 Heating cycle test without voltage
Clause 12.5 Non-electrical type tests on cable components and on complete cable and Table 5,7&8
Tensile strength and elongation at break	PULL-2000KG

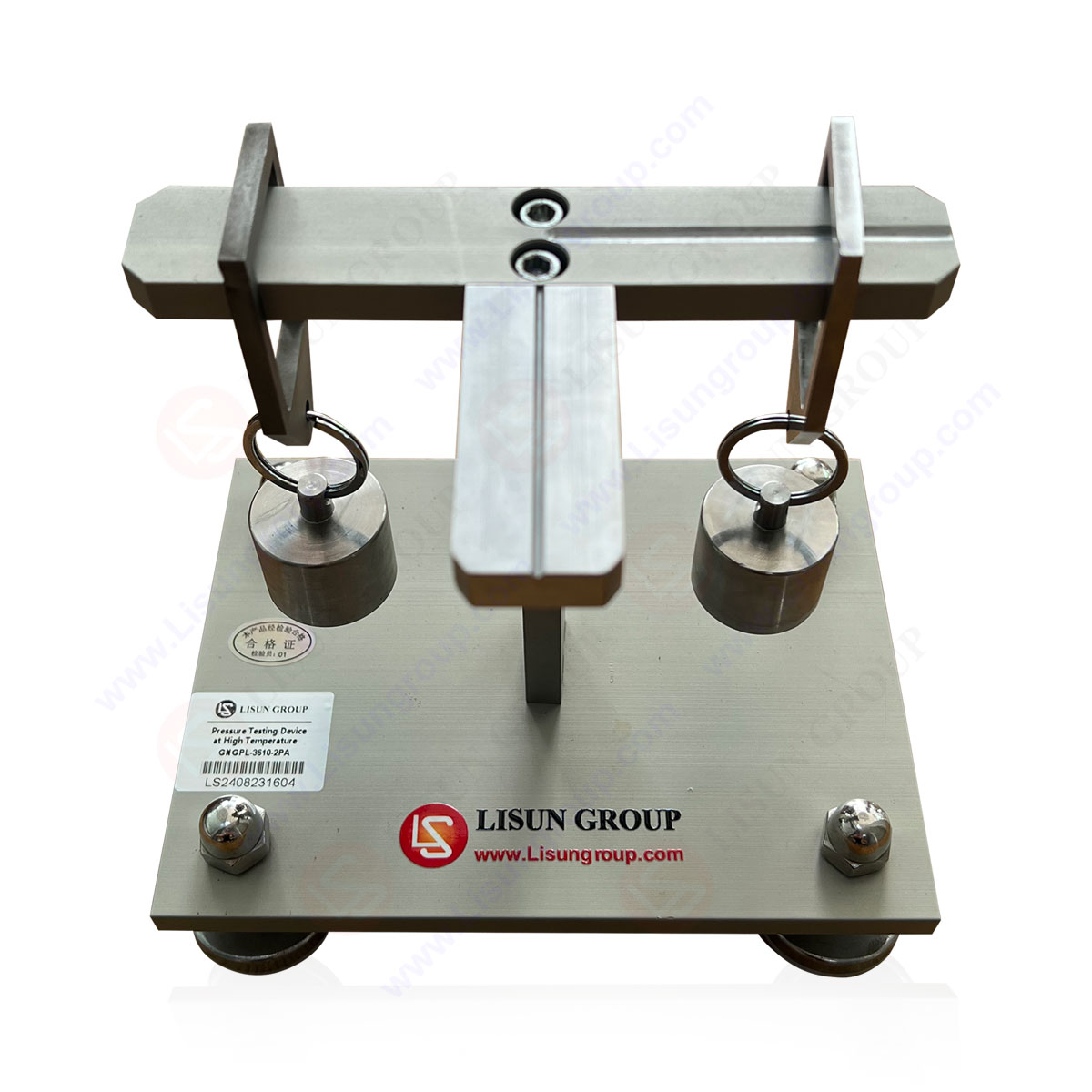

Pressure test at high temperature	GNGPL-3610-2PA
Clause 12.5.6 Pressure test at high temperature onoversheaths
Cold elongation test at low temperature	LS-B40
Cold impact test at low temperature	DWC-1
Loss of mass in air oven	GW-500
Clause 12.5.4.3 Oven aging treatment
Heat shock test	LS-B38
Ozone resistance test	OTC-150A
Hot set test	RSB-WC
Clause 12.5.13 Test under fire conditions
