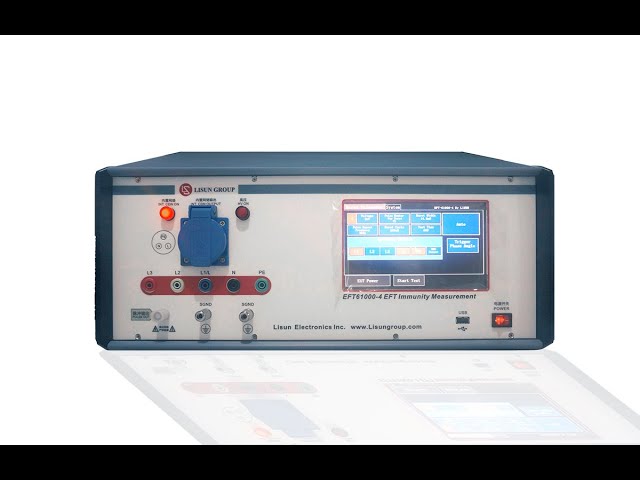

The EFT61000-4 EFT immunity tester is specially designed according to the characteristics and requirements of EFT measurement and it is an ideal disturbance source of EMS measurement. It has fine performance, such as high stability, high reliability, easy to use etc. It meets the standards requirements of IEC 61000-4-4, EN 61000-4-4, GB/T17215.301, GB/T17215.322 and GB/T17626.4. EFT61000-4 has LCD touch screen in both English and Chinese.
Q1: During EFT test, the test room power supply will trip

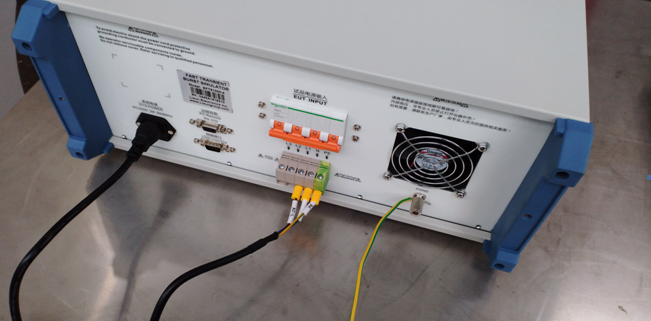

A1: The power supply needs to be connected to the isolation transformer first, and then connected to the “test object power input” on the back of the equipment through the isolation transformer. During the surge test, a large pulse will be returned to the power grid. If the isolation transformer is not connected, it is easy to cause the test room to trip.
Q2: During EFT test, the tested object cannot be lit
A2: After all wiring is completed, please confirm that the output switch of the isolation transformer is open.
Before the test, please confirm that the air switch at the “test object power input” on the back of the equipment has been turned on.
Q3: The device cannot be powered on
A3:
①. Check whether the fuse at the power socket on the back panel of the equipment is in good condition.
②. open the equipment cover plate, and there are several varistors inside the power socket. Please check whether all varistors are in good condition.
Note: it is recommended to use regulated current to supply power to the equipment. Unstable voltage may damage the fuse or varistor.
