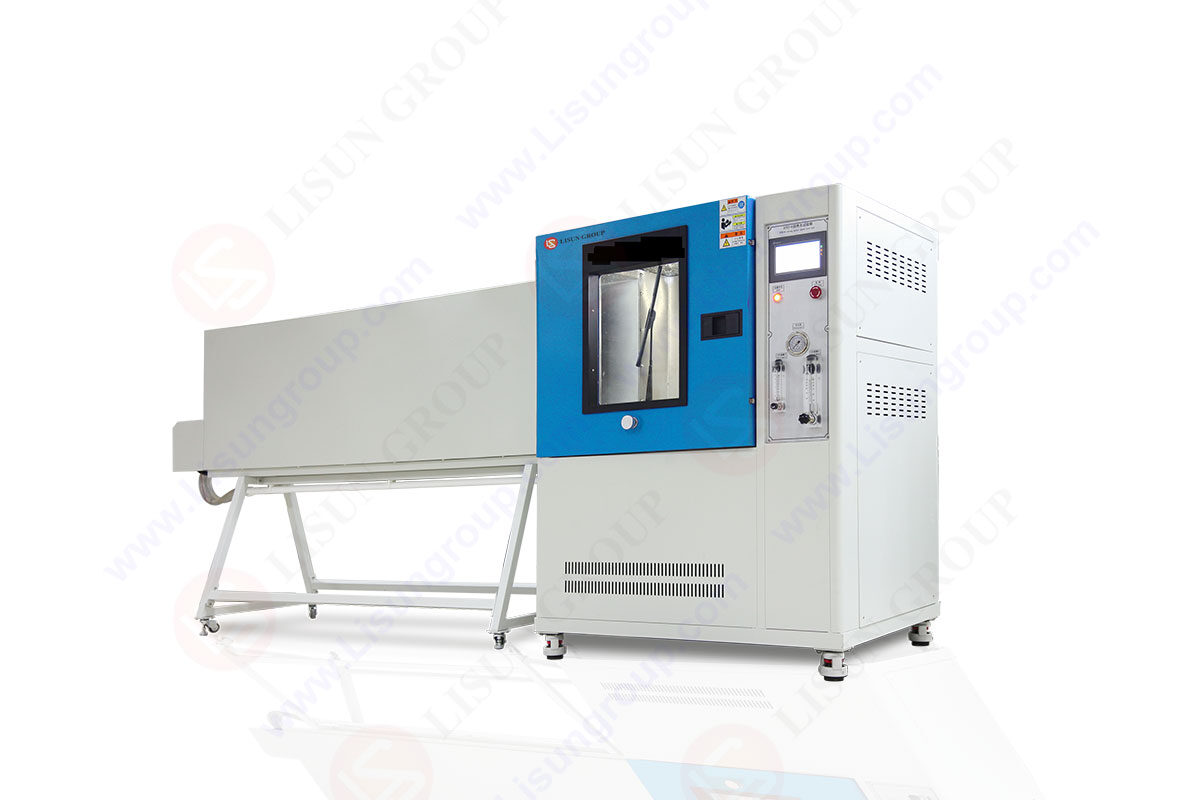

Advantages of ip34 & IP56waterproof test chamber

Ip34 & IP56 waterproof test chamber is an instrument of comprehensive rain test box. One equipment can realize the advantages of three different waterproof levels. It is applicable to the waterproof performance of IPX4, IPX5 and IPX6.

The application scope of Ip34 & IP56  waterproof test chamber includes but is not limited to smart phones, air conditioners, outdoor lamps, telephones, diving facilities, televisions, swimming pool equipment, video recorders, automobiles, automobile accessories and other electronic and electrical products.
1. The shell is made of domestic high-quality steel plate, and the surface is sprayed with baking varnish, which is beautiful and durable.
2. The inner box, turntable and wading part are all made of SUS304 # stainless steel plate, which ensures no rust after long use.
3. The swing tube drive adopts domestic high-quality stepping motor. The swing tube speed and angle are accurate and adjustable, and there is no out of step problem.
4. A filter is installed on the water supply pipe, which can filter impurities in the water to prevent nozzle blockage
5. Touch screen control function: the self-developed IPX waterproof level test operation interface can automatically test according to the waterproof level conditions in the standard terms by directly selecting the waterproof level
6. With water storage tank, water can be recycled

Test methods and steps of IPX6 waterproof test chamber:
The ipx6 test equipment, 6 of which is grade 6 waterproof, prevents the invasion of big waves, and prevents the damage of immersion appliances due to the invasion of big waves. It can prevent water spray with a water flow of 100 liters per minute for at least 3 minutes. The strong water spray test is usually adopted, and the test sample is judged as qualified if it can withstand the water spray with a water flow of 100 liters per minute for 3 minutes.

The ipx6 testing equipment is applicable to testing the waterproof performance of electrical and electronic products, LED outdoor lamps, diving products, electric cabinets, communications, digital equipment, vehicles and other products under the weather conditions simulating outdoor rain. The purpose is to test whether the product is waterproof and to facilitate the modification, design and ex factory use of the product.

The waterproof test conditions of IPX6 waterproof test chamber are that the inner diameter of the nozzle is 12.5 mm, and the water flow is 100 ± 5 liters/mm; The water pressure is adjusted according to the specified water flow, and the central part of the main water flow is 120mm round at 2.5m away from the nozzle; I The water spraying time is about 1 minute per square meter of the shell surface; The test time shall be at least 3 minutes.

Test steps of IPX6 waterproof test chamber:
1. First, determine the need to test the sample and clean the product shell, then check whether the power supply and water supply are normal,
2. Open the box door handle, place the test sample on the sample rack, and then close the box door;
3. Enter the control interface to set the test, and then enter the test state according to the set operation mode;
4. During the test of the rain test chamber, observe the changes in the chamber. Turn on the light next to the instrument to understand the changes in the chamber through the window.
5. The control system will display the change of temperature and humidity in the test box (if there is no humidity requirement in the test, the humidity value will not be displayed;
6. Open the handle of the box door, take out the sample from the sample rack, check the sample after the test, and record the completion of the test; If there is no test sample, please turn off the power.

LISUN lauched JL-XC series waterproof test chambers are mainly used for small electronic and electrical products such as lamps, electrical cabinets, electrical components and so one. It is used for physical and other related properties checking under simulated climatic conditions. It determines whether the performance of the product meets the requirements or not after the test. It is very useful in the design, improvement, verification and factory inspection of the product. The JL-XC waterproof testing fully meets IEC60598-1,  IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208-2008 and GB7000.1.

JL-XC waterproof test chamber
