Application and Benefits of Walk-in Dust Test Chambers for IP5X Dustproof Testing

With the continuous development of technology, various electronic devices are becoming more and more widely used in our lives. Electronic devices usually need to be tested in a controlled environment to ensure their functionality and reliability. Walk-in dust test chambers are commonly used testing equipment that can perform dustproof performance tests on electronic devices according to the IP5X dustproof test standard. This article will introduce the application fields of walk-in dust test chambers and their advantages in the IP5X dustproof test, and provide an outlook on their future development.

LISUN SC-015 Dust-proof Test Chamber (Sand Dust Chamber) is applied to physical and other related performance tests for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products under simulated dust climate conditions. Verify whether the performance of the product meets the requirements through verification after the measurement, so as to facilitate the design, improvement, verification and factory inspection of the product. Fully meets IEC60529:1989 +A1:1999 +A2: 2013 <Degrees of protection provided by enclosures (IP Code)>,IEC60598-1,  GB2423.37-89 (Test L: dust test methods), GB4208, GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB7000.1 <Luminaires Part 1: General Requirements and Tests> 9.2.1, 9.2.2 and Figure 6, DIN40050 and IP5K0. The dust test chamber is applicable to the IP5X and IP6X dustproof test.

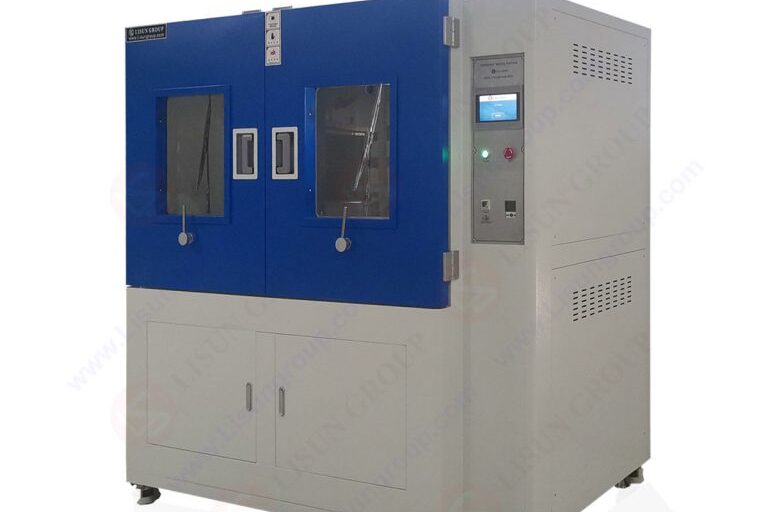

SC-015 Dustproof test chamber

I. IP5X Dustproof Test Standard
The IP5X dustproof test is a commonly used testing method for electronic devices to assess their protection against dust. This test standard is formulated by the International Electrotechnical Commission (IEC) and is widely applied in various industries.
1. Test conditions
IP5X dustproof test conditions include environmental temperature, humidity, and dust concentration, among others. The test requires placing the device in a dust chamber with a specific dust concentration under specific temperature and humidity conditions and conducting the test for a certain period of time.
2. Test procedure
In the IP5X dustproof test, the device is placed inside the dust chamber and exposed to a specific dust environment. The duration of the test depends on the requirements of the device and the testing objective.
3. Classification standard
Based on the results of the IP5X dustproof test, devices are classified into different levels to evaluate their dustproof performance. The levels range from IP50 to IP59, with a higher numerical value indicating better dustproof performance.

II. Advantages of Walk-in Dust Test Chambers
1. Equipment structure and working principle
Walk-in dust test chambers typically consist of a dust chamber, control system, and observation window, among others. The dust chamber is a sealed space that maintains constant temperature and humidity conditions. The control system enables precise control of dust concentration and test duration. The observation window allows testing personnel to observe the device during the test.

The working principle of walk-in dust test chambers involves extracting dust from the dust chamber using a fan, removing impurities through a filter, and then reintroducing the dust back into the dust chamber. This cyclic process ensures stable dust concentration and can be adjusted according to testing requirements.

2. Application fields
Walk-in dust test chambers are widely applied in various industries, including the electronics industry, automotive industry, medical industry, among others. Devices in these industries often need to work in harsh environments, making the requirements for their dustproof performance relatively high.

3. Advantages
The advantages of walk-in dust test chambers are mainly reflected in several aspects:
– Safety: Walk-in dust test chambers provide a closed testing environment, ensuring the safety of the testing process.
– Stability: With the control system, walk-in dust test chambers can maintain constant temperature, humidity, and dust concentration, ensuring the accuracy and repeatability of test results.
– Flexibility: Walk-in dust test chambers can be adjusted and customized according to the requirements of different devices, meeting the dustproof testing needs of various industries.
– Observability: Walk-in dust test chambers are equipped with observation windows, allowing testing personnel to observe the device’s condition during the test in real-time, improving the efficiency and accuracy of the testing.

III. Application Case of Walk-in Dust Test Chambers
1. Electronics industry
In the electronics industry, walk-in dust test chambers are widely used for dustproof testing of devices such as mobile phones, tablets, and televisions. These devices often need to work in various environments, making their dustproof performance highly demanding. Walk-in dust test chambers can simulate different dust environments, ensuring the reliability of devices in real working conditions.

2. Automotive industry In the automotive industry, walk-in dust test chambers are used for dustproof testing of in-vehicle electronic devices. In-vehicle electronic devices often face complex environments such as road dust and outdoor parking. Walk-in dust test chambers can simulate these environments, ensuring the reliability of in-vehicle electronic devices under various harsh conditions.

3. Medical industry
In the medical industry, walk-in dust test chambers are used for dustproof testing of medical equipment. Medical equipment often needs to work under strict hygiene standards, making their dustproof performance highly demanding. Walk-in dust test chambers can provide rigorous dust environments to ensure the hygiene and reliability of medical equipment during operation.

4. Other industries
Walk-in dust test chambers are also widely used in industries such as the food industry, aerospace industry, and optoelectronics industry. Devices in these industries also require dustproof testing to ensure their reliability and safety during operation.

IV. Future Development of Walk-in Dust Test Chambers
1. Technological innovation and development trends
With the development of technology, walk-in dust test chambers are constantly innovating and advancing. Future walk-in dust test chambers may adopt more advanced filtering technologies to improve the effectiveness of dust filtration. Additionally, more sensors may be incorporated into walk-in dust test chambers to monitor parameters such as temperature, humidity, and dust concentration in real-time, providing more accurate testing results.

2. Issues and challenges
Walk-in dust test chambers also face some issues and challenges during application. Firstly, the type and size of dust particles may affect the accuracy and reliability of the test results. Therefore, continuous improvement and optimization of dust filtration technologies are necessary for walk-in dust test chambers. Secondly, walk-in dust test chambers have a large volume and require significant space for installation, which may pose challenges in limited space environments.

3. Development prospects and recommendations
Walk-in dust test chambers have broad application prospects in various industries. With the development of technology and increasing demands, walk-in dust test chambers will continue to develop and progress. It is recommended that manufacturers of walk-in dust test chambers continue to focus on technological innovation and product quality to meet the growing market demands. Additionally, close cooperation with relevant industries to understand their needs and challenges, and providing customized solutions will contribute to further development of walk-in dust test chambers.
