Needle Flame Test Standard: Application and Overview of the LISUN ZY-3 Needle Flame Tester

The needle flame test standard is critical in ensuring the safety of various electrical and electronic products. It is widely applied across industries to assess the flammability of materials, particularly in testing lighting equipment, low-voltage electrical devices, household appliances, electric tools, electronic instruments, and electronic meters. This testing standard also extends to insulating materials, engineering plastics, and solid combustible materials. Among the equipment adhering to this standard is the LISUN ZY-3 Needle Flame Tester, which stands out for its accuracy, reliability, and adherence to international testing norms.

Introduction to Needle Flame Testing
The needle flame test standard evaluates the fire hazard posed by small flames that may arise during the operation of electrical or electronic devices. This test simulates the effect of small flames that can result from component failure or electrical faults within a product. By subjecting materials to this test, manufacturers can determine the material’s resistance to ignition, which is crucial in designing safer products.

The LISUN ZY-3 Needle Flame Tester is designed to replicate the needle flame conditions specified in international safety standards, such as IEC60695-2-2. This equipment is used in research and development labs, as well as in production quality assurance processes, to ensure materials meet the required fire resistance levels.

Structure of the Needle Flame Tester

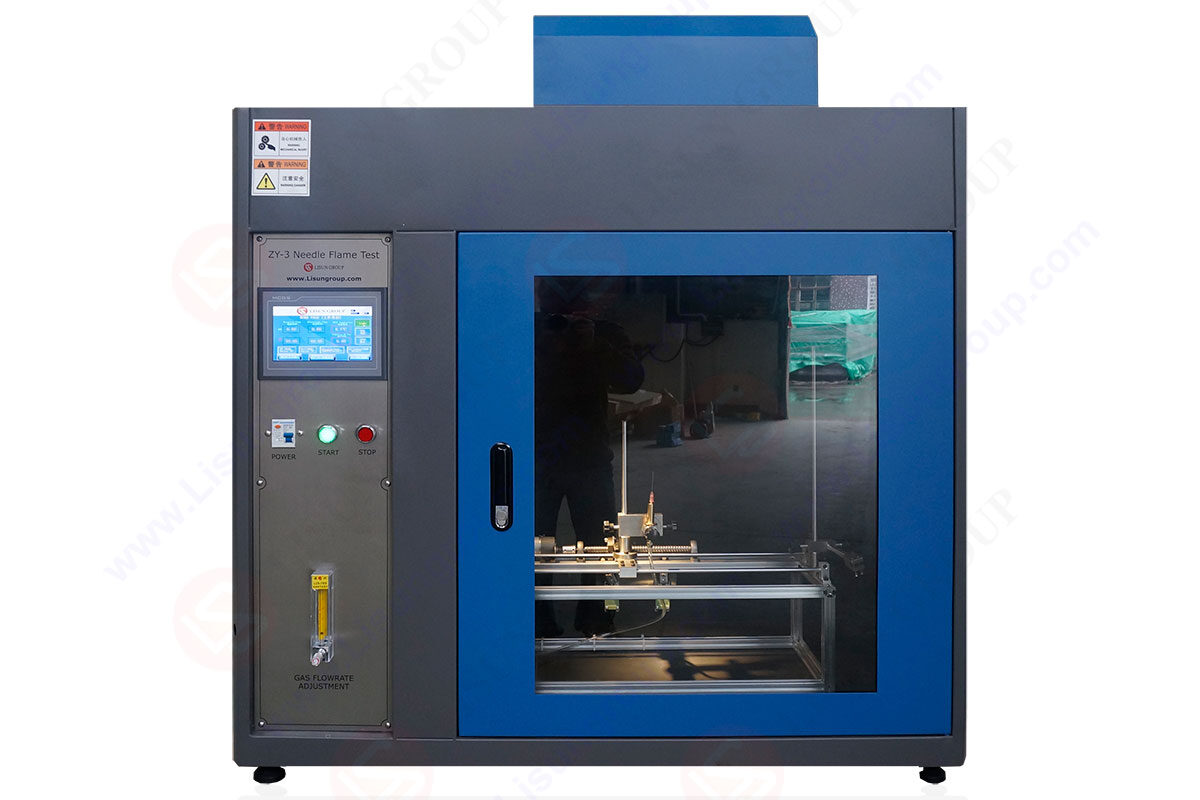

The LISUN ZY-3 Needle Flame Tester consists of three key components:
• Needle Flame Burner: This burner generates a small, controlled flame of a specific size and intensity. The flame is applied to the material under test to observe whether it ignites and how the material behaves when exposed to this flame.
• Working Chamber: The working chamber is a sealed space where the needle flame testing takes place. This chamber prevents external environmental factors from affecting the results and ensures that the test conditions meet the standard requirements.
• Temperature Measurement System: This system is crucial for measuring the temperature of the burner flame to ensure it complies with the required specifications. It is typically equipped with thermocouples that precisely monitor the flame temperature to maintain the consistency of the test.

Needle Flame Test Standard Procedure
The needle flame test standard procedure begins with conditioning the sample material in a controlled environment. The material is then placed in the test chamber, and the needle flame is applied to its surface for a pre-determined duration, typically 30 seconds. The response of the material, including whether it ignites and how long it burns, is recorded.

The standard requires that the flame be adjusted to reach a specific temperature of approximately 960°C. The test focuses on observing if the material ignites or continues to burn after the flame is removed. To pass the test, the material should either self-extinguish or prevent flame propagation within a specified time, typically less than 30 seconds.

Applications of the Needle Flame Test
Lighting Equipment
Materials used in lighting fixtures must resist ignition from electrical faults or overheating components. The needle flame test standard helps manufacturers ensure that these materials meet the necessary safety requirements, preventing potential fires in homes or workplaces.

Low-Voltage Electrical Appliances
The components in low-voltage electrical appliances, such as sockets, switches, and wiring, must comply with strict fire safety standards. The needle flame test standard verifies that these products can withstand small ignition sources without catching fire, ensuring safety for end users.

Household Appliances
Household appliances, including toasters, microwaves, and electric kettles, often contain plastic or insulated materials that may be exposed to electrical faults. The needle flame test standard assesses the flammability of these components, ensuring they are safe for use in domestic environments.

Electric Tools
Electric tools are often used in environments where they may be exposed to electrical faults, especially in construction or industrial settings. The needle flame test standard ensures the plastic housings and insulation materials in these tools can resist ignition, preventing accidents in the workplace.

Electronic Instruments and Meters
Electronic instruments and meters often contain delicate components that could short-circuit or malfunction. By applying the needle flame test standard, manufacturers can ensure these devices’ materials are flame-resistant, enhancing their safety and reliability.

Insulating Materials and Engineering Plastics
Insulating materials are critical in ensuring the safety of electrical devices. The needle flame test standard evaluates the ability of these materials to resist ignition, ensuring they prevent the spread of fires in the event of electrical faults.

Data and Results Interpretation
In a typical needle flame test, the following parameters are measured:

Material Type	Test Duration (seconds)	Flame Ignition	Self-Extinguishing Time (seconds)	Burn Length (mm)
Engineering Plastic	30	No	–	0
Insulating Material	30	Yes	10	20
Solid Combustible Material	30	Yes	25	50

In the table above, “Flame Ignition” indicates whether the material caught fire during the test. The “Self-Extinguishing Time” indicates how long the material continued to burn after the flame was removed, and the “Burn Length” measures how far the flame spread along the material.

Compliance with International Standards
The LISUN ZY-3 Needle Flame Tester is designed to comply with several international standards, including:
• IEC 60695-2-2: This is the primary standard governing the needle flame test, outlining the procedure for testing small flames’ effects on insulating materials and electrical equipment.
• GB/T 5169.5-2008: The Chinese national standard equivalent to IEC 60695-2-2.
• UL 94: This is another widely recognized standard for flammability testing of plastic materials, often used in conjunction with the needle flame test.

Conclusion
The needle flame test standard plays an essential role in ensuring the safety of various electrical and electronic products. By simulating real-world fire hazards, the test helps manufacturers select materials that resist ignition, reducing the risk of fires. The LISUN ZY-3 Needle Flame Tester is a high-precision, reliable tool that enables manufacturers to meet stringent international safety standards. Whether used for testing lighting equipment, household appliances, or engineering plastics, this device provides accurate and consistent results, ensuring that products meet the necessary safety criteria.
