19 Nov, 2024 64 Views Author: Cherry Shen

Applications of the Electrical Safety Analyzer in Testing Lighting Fixtures, Household Appliances, and Motors

In the rapidly evolving world of electrical products, ensuring safety and compliance with regulatory standards is paramount. The Electrical Safety Analyzer, particularly the LISUN LS9955 Automatic Safety Test System, plays a critical role in verifying the safety of products like lighting fixtures, household appliances, and motors. This paper explores the use of the electrical safety analyzer in both production lines and R&D laboratories, highlighting its application in testing various products to ensure they meet industry safety standards.

Introduction
Electrical safety is a fundamental aspect of product design and manufacturing, especially in sectors like lighting, household appliances, and motors. Ensuring that these products are safe for consumer use is not only a legal requirement but also a moral obligation for manufacturers. The Electrical Safety Analyzer is a crucial tool in this regard, enabling comprehensive testing and verification of product safety. The LISUN LS9955 Automatic Safety Test System, a leading product in this category, offers advanced features that make it indispensable in both production environments and R&D settings.

Electrical Safety Testing Overview
Electrical safety testing involves a series of tests designed to ensure that an electrical product can operate safely under normal and fault conditions. These tests typically include:

Dielectric Withstand (Hi-Pot) Testing
• Insulation Resistance Testing
• Ground Bond Testing
• Leakage Current Testing
• These tests are designed to detect potential electrical hazards such as insulation breakdown, poor grounding, and excessive leakage currents, which could lead to electric shocks, short circuits, or even fires.

The LISUN LS9955 Automatic Safety Test System
The LISUN LS9955 Automatic Safety Test System is a state-of-the-art electrical safety analyzer that integrates multiple testing functions into a single unit. This system is designed to streamline the safety testing process in both high-volume production environments and detailed R&D lab settings.

Key Features:
• High-Precision Testing: Capable of conducting Hi-Pot, insulation resistance, ground bond, and leakage current tests with high accuracy.
 Automation: Fully automated testing sequences reduce human error and increase testing efficiency.
• Data Logging and Analysis: Built-in data storage allows for detailed analysis of test results, which is essential for quality control and R&D.
• User-Friendly Interface: The system is designed with an intuitive interface that simplifies setup and operation.

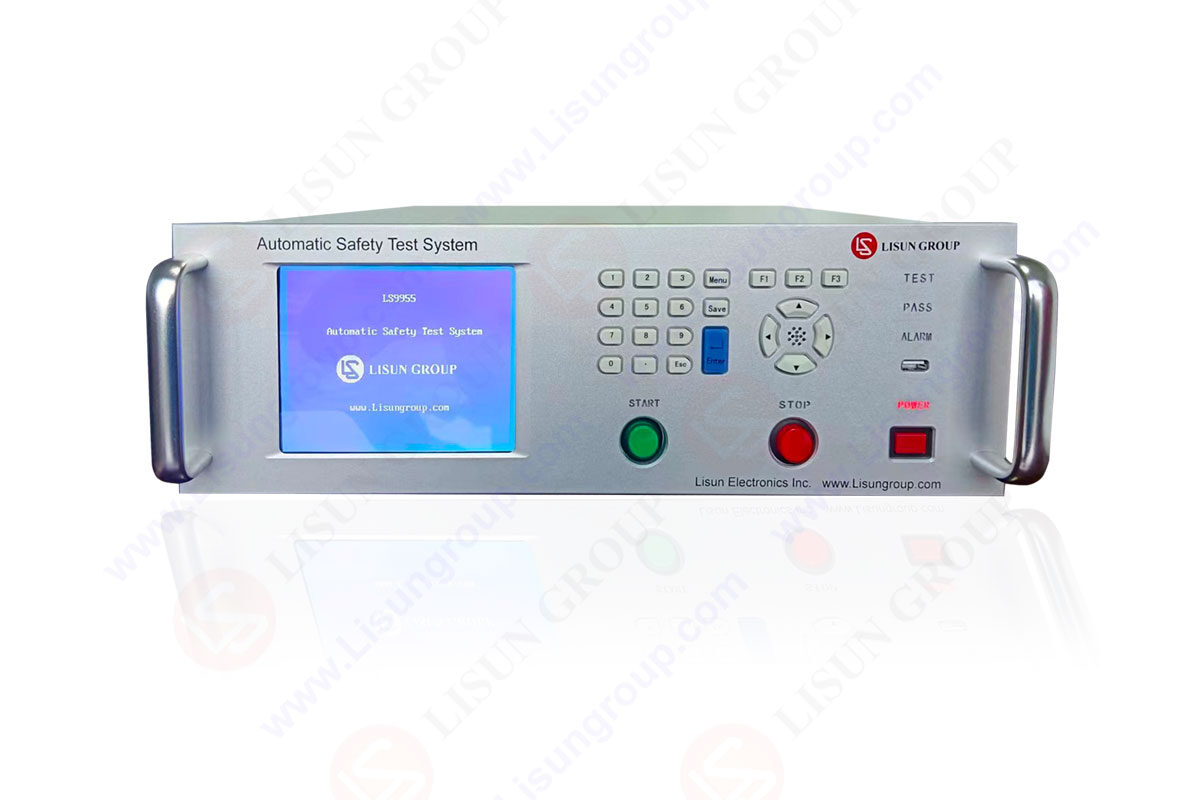

Applications of the Electrical Safety Analyzer in Testing Lighting Fixtures, Household Appliances, and Motors

Automatic Safety Test System LS9955

Applications in Production Lines

In the production of lighting fixtures, household appliances, and motors, the electrical safety analyzer is used to ensure that every unit leaving the production line meets safety standards. The LISUN LS9955 system can be integrated into the production line to perform automated safety testing, ensuring consistency and reliability in testing.

Case Study: Lighting Fixtures

Lighting fixtures are subject to stringent safety standards due to their direct connection to electrical networks. The LISUN LS9955 can perform Hi-Pot tests to verify the insulation integrity and ground bond tests to ensure proper grounding. This is particularly important for LED lighting, where the integration of power supplies increases the risk of electrical faults.

Test Parameter Value Standard Pass/Fail Criteria
Hi-Pot Voltage 1500V IEC 60598 Leakage < 5mA
Insulation Resistance >10 MΩ IEC 60598 Resistance > 10 MΩ
Ground Bond Resistance <0.1Ω IEC 60598 Resistance < 0.1Ω

Case Study: Household Appliances

Household appliances such as refrigerators, washing machines, and microwaves require comprehensive safety testing due to their prolonged and unattended use. The LISUN LS9955 can test for leakage current, which is critical for ensuring that any fault conditions do not pose a shock hazard to users.

Test Parameter Value Standard Pass/Fail Criteria
Leakage Current <0.75mA IEC 60335 Leakage < 0.75mA
Insulation Resistance >7 MΩ IEC 60335 Resistance > 7 MΩ
Ground Bond Resistance <0.1Ω IEC 60335 Resistance < 0.1Ω

Case Study: Motors

Motors, particularly those used in industrial applications, must be tested for safety to prevent catastrophic failures. The LISUN LS9955 can conduct ground bond tests and insulation resistance tests to ensure that motors do not pose any electrical hazards.

Test Parameter Value Standard Pass/Fail Criteria
Hi-Pot Voltage 2000V IEC 60034 Leakage < 5mA
Insulation Resistance >15 MΩ IEC 60034 Resistance > 15 MΩ
Ground Bond Resistance <0.05Ω IEC 60034 Resistance < 0.05Ω

Applications in R&D Laboratories

In R&D settings, the electrical safety analyzer is used not only to verify the safety of prototypes but also to optimize designs for better safety performance. The LISUN LS9955 system’s ability to conduct detailed tests and log data is invaluable for engineers looking to refine product designs.

Example: Prototype Testing
During the development of a new household appliance, R&D teams can use the LISUN LS9955 to perform exhaustive safety tests on prototypes. The ability to automate testing sequences and store detailed test results allows engineers to quickly identify and rectify design flaws, ensuring that the final product meets all safety standards.

Example: Compliance Testing
R&D laboratories often need to verify that new products comply with international safety standards. The LISUN LS9955’s compliance with standards such as IEC 60335 (for household appliances) and IEC 60034 (for motors) makes it an ideal choice for this purpose.

Conclusion
The Electrical Safety Analyzer is an essential tool in both production lines and R&D laboratories for ensuring the safety of electrical products such as lighting fixtures, household appliances, and motors. The LISUN LS9955 Automatic Safety Test System offers a comprehensive solution, integrating multiple safety tests into a single, automated system. Its application in various stages of product development and production helps manufacturers meet stringent safety standards, ensuring that their products are safe for consumer use.

The ability to conduct precise, automated testing with detailed data logging makes the LISUN LS9955 a valuable asset in both high-volume manufacturing environments and detailed R&D settings. As electrical safety continues to be a critical focus for manufacturers, tools like the LISUN LS9955 will play an increasingly important role in ensuring that products meet the highest safety standards.

References
LISUN Group. (2024). LISUN LS9955 Automatic Safety Test System. Retrieved from https://www.lisungroup.com/products/electrical-safety-tester/automatic-safety-test-system.html
International Electrotechnical Commission. (2023). IEC 60598 – Luminaires. Standard.
International Electrotechnical Commission. (2023). IEC 60335 – Safety of household and similar electrical appliances. Standard.
International Electrotechnical Commission. (2023). IEC 60034 – Rotating electrical machines. Standard.
