Automotive Multifunctional Immunity Test System: Ensuring Robustness in Automotive Electronics

Automotive electronics are pivotal in modern vehicles, managing everything from engine performance to infotainment systems. However, the increasing complexity of these systems makes them vulnerable to electromagnetic interference (EMI) and electrical disturbances. To address this, automotive manufacturers adopt stringent testing protocols, such as those performed by the Automotive Multifunctional Immunity Test System. Among leading solutions, the LISUN EMS-ISO7637 Multifunctional Immunity Test System for Automotive Electronics stands out as a comprehensive tool. This article explores its applications, principles, and advantages.

Importance of Automotive Immunity Testing
Automotive electronics operate in environments rife with potential EMI sources, including external transmitters, internal wiring, and power fluctuations. Immunity testing ensures these systems maintain functionality under adverse conditions. The automotive multifunctional immunity test system is designed to simulate real-world electromagnetic disturbances, allowing manufacturers to evaluate their products against industry standards like ISO 7637, ISO 11452, and CISPR 25.

Features of the LISUN EMS-ISO7637

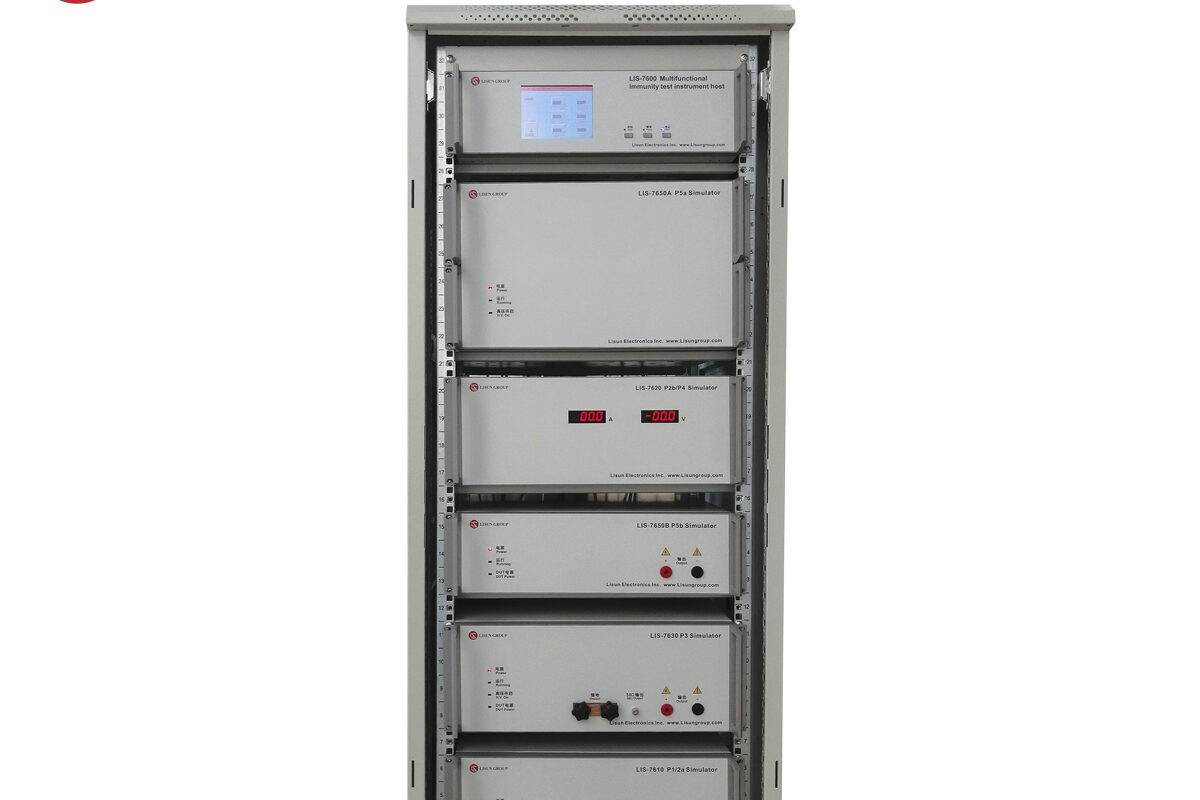

The LISUN EMS-ISO7637 Multifunctional Immunity Test System is an advanced tool tailored for the automotive sector. Its key features include:

• Pulse Simulation: Generates transient pulses such as burst pulses, load dump pulses, and voltage dips based on ISO 7637 standards.
• User-Friendly Interface: Intuitive software for test parameter configuration and result analysis.
• Wide Application Range: Suitable for various automotive electronic components, including ECUs, sensors, and lighting systems.
• High Accuracy: Precision in simulating real-world disturbances for reliable test results.
• Integrated Test Modes: Combines multiple immunity tests in a single system, reducing time and cost.

Principle of Operation
The automotive multifunctional immunity test system simulates electrical disturbances that automotive electronics encounter during operation. The LISUN EMS-ISO7637 achieves this through:

• Pulse Generators: Produce short-duration high-energy pulses to mimic sudden voltage changes.
• Voltage Dips and Surges: Simulate variations in vehicle power supply due to load switching or battery issues.
• Continuous Wave (CW) Immunity: Tests the electronics’ resilience against sustained RF interference.
• Electrostatic Discharge (ESD): Evaluates the system’s ability to withstand static discharges from human contact or the environment.

Test Parameters and Standards

The LISUN EMS-ISO7637 supports tests compliant with ISO 7637-2 and ISO 7637-3 standards, covering transient emissions and immunity. Key parameters include:

Test Parameter	Range	Standard Compliance
Pulse Voltage	-100 V to +200 V	ISO 7637-2 Pulse 1, 2a, 2b
Duration	10 µs to 200 ms	ISO 7637-3
Repetition Rate	0.1 Hz to 1 kHz	Customizable
ESD Voltage	Up to ±15 kV	IEC 61000-4-2
Voltage Dips/Surges	10% to 90% nominal voltage	ISO 16750-2

Applications

The automotive multifunctional immunity test system is employed in various stages of product development:

• Design Verification: Ensures the initial designs meet regulatory requirements.
• Production Testing: Verifies consistency in mass-produced components.
• Failure Analysis: Identifies weak points in existing systems for improvement.

Specific applications include testing:

• Engine Control Units (ECUs)
• Infotainment and navigation systems
• Advanced driver-assistance systems (ADAS)
• LED lighting and sensors

Advantages of the LISUN EMS-ISO7637

• Comprehensive Testing: Combines multiple immunity tests in one system.
• Cost Efficiency: Reduces the need for multiple devices and test cycles.
• High Customizability: Adapts to specific test conditions and product requirements.
• Global Compliance: Meets international standards, ensuring market readiness.
• Case Study: Automotive Lighting Systems

An automotive lighting manufacturer integrated the LISUN EMS-ISO7637 into its testing protocol. The system identified vulnerabilities in the LED driver circuit under transient voltage conditions, enabling design modifications before mass production. This proactive approach reduced warranty claims and enhanced brand reputation.

Conclusion
As automotive electronics evolve, the need for robust immunity testing becomes paramount. The LISUN EMS-ISO7637 Multifunctional Immunity Test System offers a versatile, accurate, and cost-effective solution for manufacturers. By simulating real-world disturbances, this automotive multifunctional immunity test system ensures products meet stringent standards and perform reliably in challenging environments.

For more information, visit the LISUN EMS-ISO7637 product page.
