Blackbody Furnaces and Infrared Temperature Calibrators: Calibration of Infrared Ear Thermometers and Infrared Forehead Thermometers

Introduction
Infrared thermometers, including ear and forehead thermometers, are widely used in medical and industrial applications for non-contact temperature measurements. These devices require periodic calibration to ensure their accuracy and reliability. The Blackbody Furnaces and Infrared Temperature Calibrators, such as the LISUN BBF-1 Black Body Furnace | Tachometer Calibrator, provide precise calibration for these instruments, as well as for infrared body surface screening devices. This article explores the principles, applications, and benefits of blackbody furnaces and infrared temperature calibrators in the calibration process.

Working Principle of Blackbody Furnaces and Infrared Temperature Calibrators
A blackbody furnace simulates an ideal blackbody, which absorbs all incident radiation without reflection. Its emissivity is close to 1, making it an excellent standard for temperature calibration. The furnace emits radiation corresponding to its temperature, which can be accurately measured and used to calibrate infrared thermometers.

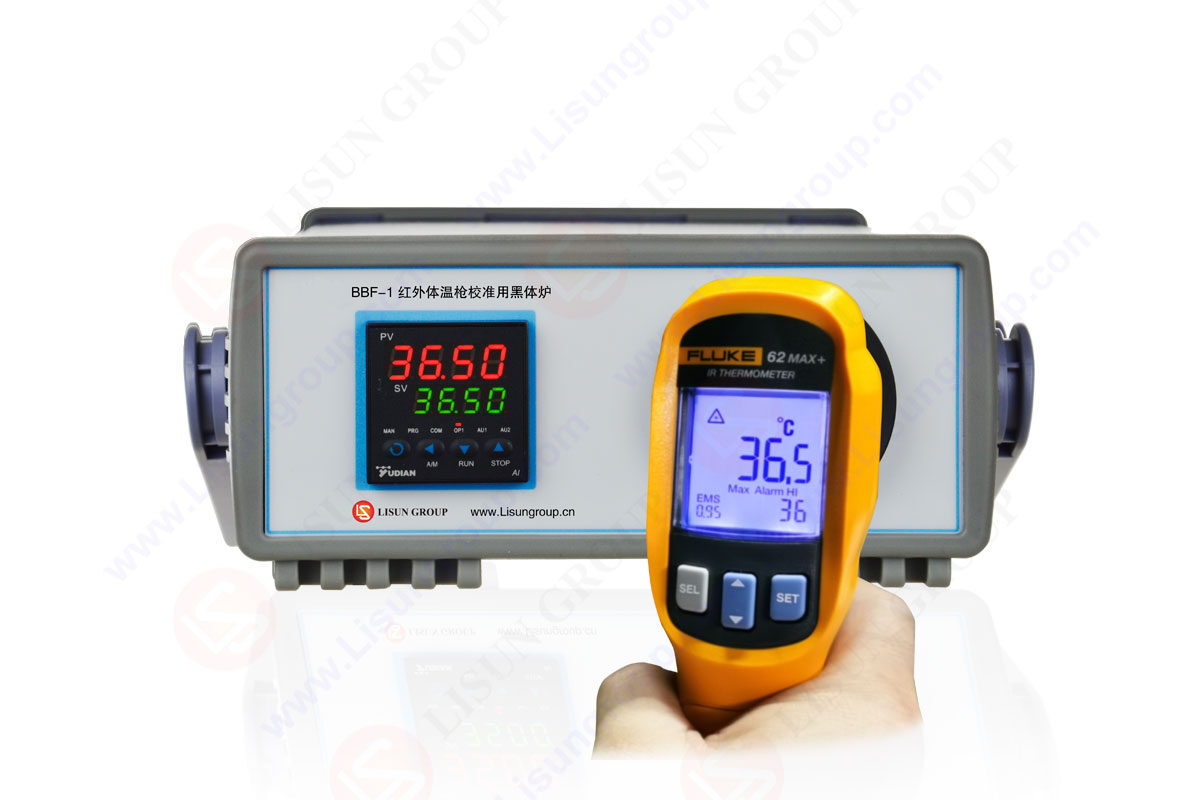

The LISUN BBF-1 Black Body Furnace operates within a temperature range of 40°C to 200°C, providing a stable and controlled blackbody source. It ensures high emissivity and stable thermal conditions, making it ideal for calibrating medical and industrial infrared devices.

Applications in Calibration

• Infrared Ear Thermometers
Calibration ensures the accuracy of temperature readings in medical diagnostics.
The BBF-1 provides a controlled reference temperature to align the thermometer’s readings with actual values.

• Infrared Forehead Thermometers
Frequently used in pandemic screening, these devices need precise calibration to prevent misdiagnosis.
Blackbody calibrators ensure accuracy over a wide range of environmental conditions.

• Infrared Body Surface Screening Devices
Used in public health monitoring, these instruments require calibration to detect minor temperature variations accurately.
The BBF-1’s stable temperature output allows for consistent and repeatable calibration results.

Calibration Procedure

Setup

• Position the blackbody furnace on a stable surface in a controlled environment.
• Ensure the device under calibration (DUC) is clean and functional.

Temperature Configuration

• Set the BBF-1 furnace to the desired calibration temperature.
• Allow the furnace to stabilize at the set temperature.

Alignment

• Place the DUC’s sensor at the furnace’s aperture. Ensure proper alignment to avoid angular measurement errors.

Measurement and Adjustment

• Compare the thermometer’s readings with the furnace’s reference temperature.
• Adjust the thermometer’s settings to match the blackbody source.

Verification

• Repeat the process at multiple temperature points to ensure linearity and accuracy.

Advantages of Using LISUN BBF-1 Black Body Furnace
• High Precision: The BBF-1 achieves an accuracy of ±0.1°C, ensuring reliable calibration.
• Wide Temperature Range: Suitable for diverse calibration needs across medical and industrial devices.
• Portability: Compact and lightweight design for field and laboratory use.
• Ease of Use: Intuitive controls and quick stabilization reduce calibration time.

Data and Figures

Parameter	LISUN BBF-1 Specification
Temperature Range	40°C to 200°C
Accuracy	±0.1°C
Emissivity	≥0.97
Aperture Diameter	20mm
Warm-Up Time	≤10 minutes

Comparative Analysis of Blackbody Furnaces

Model	Temperature Range	Accuracy	Applications
LISUN BBF-1	40°C to 200°C	±0.1°C	Medical and industrial calibration
Competitor A	50°C to 150°C	±0.2°C	Limited to medical applications
Competitor B	30°C to 250°C	±0.15°C	Wider range but less precision

Conclusion
The Blackbody Furnaces and Infrared Temperature Calibrators, especially the LISUN BBF-1 Black Body Furnace, play a critical role in ensuring the accuracy of infrared thermometers and screening devices. With precise temperature control, high emissivity, and a user-friendly interface, the BBF-1 is an essential tool for professionals in healthcare and industrial settings. By adhering to proper calibration procedures, organizations can maintain the reliability and safety of their infrared measurement devices, ensuring optimal performance in critical applications.
