Brief analysis of test methods of ipx4 Swing Pipe Water Spray Test Equipment

The ipx4 Swing Pipe Water Spray Test Equipment is a waterproof performance testing equipment widely used in electronic and electrical engineering, communication, lighting, automobile and other fields. It is designed and manufactured based on the test requirements of the international standard IPX4. This equipment is mainly used to test the waterproof performance of various product shells, verify whether the products can keep the internal electronic components, circuit boards and other parts from water invasion under specific water flow conditions, and ensure the reliability and stability of the products in the use process.

What does ip4x protection level mean?

It means to prevent solid foreign matters with a diameter of no less than 1.0mm, and to carry out a level 4 dust level test on the shell of the product. The purpose is to determine whether the product meets the requirements of dust prevention standards through testing.

Ipx4 Swing Pipe Water Spray Test Equipment is mainly composed of nozzle, water tank, turntable and electric control system. During the test, place the product to be tested on the turntable, turn on the high-pressure water pump, spray for a period of time, observe the performance of the product under the water jet, and judge whether the waterproof performance of the product meets the requirements of the standard by measuring and analyzing the data.

The size and diameter of its spray hole is 0.4mm, the water flow of ipx4 is 6L/min ± 0.05, the swing angle is 350 degrees, the swing speed is 350 degrees, and the return time is 12 seconds. This meets the requirements of this standard. After passing the test, if the product does not leak or affect the normal use, it is judged that the product has reached the level 4 waterproof standard and is qualified.

Operation steps of the use method of the swinging pipe rain equipment:

1. Place the sample on the sample turntable so that the sample is at the center of the table.
2. Adjust the height of the turntable according to the size of the sample so that the distance from the upper side of the sample to the nozzle of the swing tube does not exceed 200mm

3. Replace the blue spray holes at both ends of the swing tube with stainless steel plugs. Then enter the test interface to select the size of the radius of the swing tube and the waterproof grade. If the tested product is powered on for testing, please click “sample power” to make the sample powered on.

4. Return to the main interface and click “Test Start”. If the test time is up, the equipment will automatically stop the test, and the alarm interface of test completion will appear.

Customization requirements for Swing Pipe Water Spray Test Equipment:

In fact, what is the customization requirement for the Swing Pipe Water Spray Test Equipment? This is mainly based on the user’s test requirements for the product, because different users have different test requirements for the product, such as the size of the chamber, technical parameter specifications, content capacity, test function, etc. There is no standard requirement for customization. However, its technical parameters should meet the standard of GB/T4208-2017 Degrees of Protection Provided by Enclosures (IP Code), and it can pass the third-party metrological certification.

There are three types of Swing Pipe Water Spray Test Equipment with swing pipes: split type, open type and chamber type. The open type and split type can be used for the test of large sample size items. Water can not be recycled. The chamber type is suitable for the detection of small and medium-sized samples, and the water can be recycled.

JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

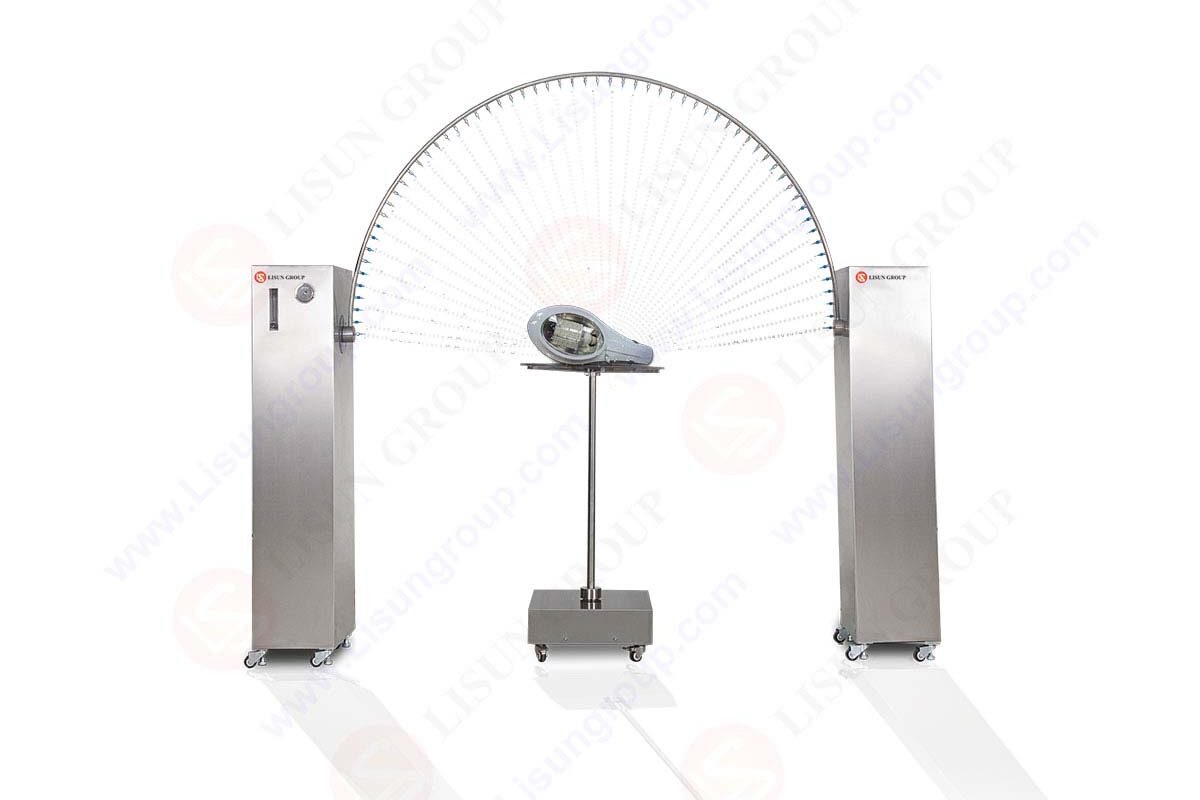

 Swing Pipe Water Spray Test Equipment (JL-34): It is for IPX3 and IPX4 waterproof test. The semi-diameter of swing pipe is 1meter (Any other size is also available). The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other size according to the diameter of the swing pipe), and the height is adjustable. The rotation speed is 1~5rpm which controlled by PLC panel.

Waterproof Test Equipment JL-34
