Brief introduction of ipx9k High Temperature Pressure Jet Waterproof Test Chamber

The ipx9k High Temperature Pressure Jet Waterproof Test Chamber is characterized by a waterproof grade of 9, indicating high temperature and high pressure water spraying, and spraying high temperature and high pressure water in various directions of the shell for water spraying test. In addition, k represents a function of pressurization, and under such strict conditions, its water pressure will become stronger. The ipx9 is currently a high level of waterproof protection.

The IPx9 High Temperature Pressure Jet Waterproof Test Chamber is also widely used in fields such as LED lighting fixtures, display screens, household appliances industry, automobiles, and automotive accessories. At the same time, all dust and waterproof equipment can be customized according to user needs.

The ipx9k High Temperature Pressure Jet Waterproof Test Chamber has four different vertical spray angles, namely 0 °, 30 °, 60 °, and 90 °, and the water pressure can reach 8000 to 10000 Kpa; Moreover, its testing range is relatively broad, and it can be used for testing large samples (175 ± 25mm) and small samples (125 ± 25mm) of products. Of course, other rain test boxes are also available.

IPx9 High Temperature Pressure Jet Waterproof Test Chamber is a method of simulating high temperature and high pressure spray testing using an artificial system to conduct a waterproof, high temperature and high pressure rain impact test on the product. In addition, its model styles can be divided into open type and chamber type.

1. Suitable for IPX9K waterproof grade testing of products.
2. The shell is made of high-quality steel plate made in China, and the surface is sprayed with baking paint, making it beautiful and durable.
3. The inner chamber and turntable are all made of SUS304 # stainless steel plate, ensuring that they do not rust during long-term use.
4. Chamber structure; Self contained water tank, circulating water; A water level sensor is installed in the water storage tank to automatically control water inflow, and a low water level alarm detection is provided to effectively prevent the water pump from becoming damaged due to water shortage.
5. There is a transparent observation window (made of tempered glass) on the door, and an LED lamp is installed inside the box to facilitate observation of internal testing.
6. Four fan shaped nozzles are uniformly distributed within 90 ° vertically on the right side of the chamber, and are designed and manufactured in strict accordance with standards:

7. Turntable drive: Using a stepper motor, the speed can be set (adjustable) on the touch screen, and is accurately and steplessly adjustable within the standard range.
8. This test chamber uses a complete set of imported water pumps from Italy, which are resistant to high temperature and pressure, can be used for a long time, and has stable performance.
9. The test time can be set on the touch screen, with a setting range of 0-999min (adjustable).

What are the experimental conditions for the IPx9 High Temperature Pressure Jet Waterproof Test Chamber?

First, within the testing range, the ipx9 High Temperature Pressure Jet Waterproof Test Chamber needs to have four vertical directions, namely zero, thirty, sixty, and ninety degrees. Its water temperature needs to reach normal temperature: (25 ℃) or 80 ± 5 ℃ (the deviation temperature can be agreed). The total testing time is 120S, and the testing time for each angular position is 30 seconds, which can be adjusted according to the user’s testing needs.

IPx9 High Temperature Pressure Jet Waterproof Test Chamber is subdivided into two different models: open type and chamber type. It uses the method of artificial simulation system high temperature and high pressure spray testing to conduct a waterproof high temperature and high pressure rain impact test on the product. The purpose of the test is to evaluate whether the product has achieved waterproof performance and achieved factory use through testing.

JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9，GB7000.1，ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.

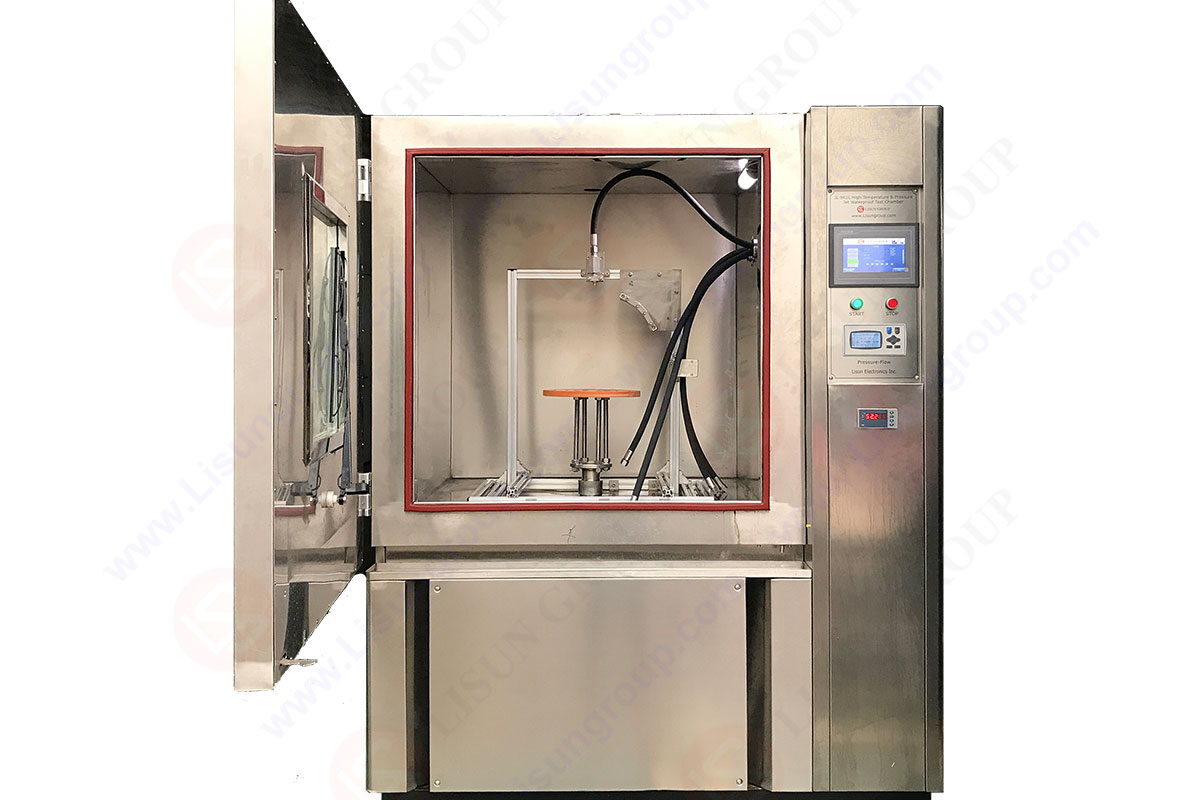

JL-9K1L High Temperature Pressure Jet Waterproof Test Chamber
