Calibration of Infrared Thermometers Using Black Body Calibrators: A Detailed Study of the LISUN BBF-1 Black Body Furnace

Abstract
In the realm of precision measurement, the calibration of infrared thermometers, including infrared ear thermometers and forehead thermometers, is crucial for ensuring accurate body temperature readings. Black Body Calibrators play a pivotal role in this process, offering highly reliable and stable temperature sources for calibration. This paper provides an in-depth analysis of various calibration devices used for infrared thermometers, with a special focus on the LISUN BBF-1 Black Body Furnace. Through detailed explanations and data tables, this study highlights the importance of Black Body Calibrators in ensuring the accuracy and reliability of infrared temperature measurement devices.

Introduction
Infrared thermometers, specifically infrared ear thermometers and infrared forehead thermometers, have become increasingly popular due to their non-contact measurement capability and speed. These devices are commonly used in medical settings for quick temperature assessments. However, the accuracy of these devices heavily depends on precise calibration, which requires a stable and reliable temperature source. This is where Black Body Calibrators come into play. These devices provide an ideal temperature reference by emitting thermal radiation at specific wavelengths, mimicking the radiation emitted by a perfect black body at various temperatures.

The LISUN BBF-1 Black Body Furnace is one such device designed to facilitate the calibration of infrared thermometers. By providing a highly stable and precise temperature source, it ensures the accurate functioning of infrared thermometers across a wide range of temperatures. This paper explores the importance of Black Body Calibrators in thermometer calibration, examines the working principle of the LISUN BBF-1, and presents data on its performance.

Working Principle of Black Body Calibrators
A Black Body Calibrator is designed to simulate the conditions of a black body, an object that absorbs all radiation incident upon it and emits radiation in a manner dependent solely on its temperature. These calibrators are used to provide a precise and stable reference for infrared thermometers by creating an ideal thermal source. The radiation emitted from the calibrator is measured by the infrared thermometer, allowing for an accurate comparison and calibration.

The key characteristics of an ideal Black Body Calibrator include:

• Stable temperature control: The calibrator must maintain a constant temperature within a specified range.
• Emissivity: The device should have an emissivity close to 1 (the ideal black body emissivity), ensuring that the radiation emitted is accurately representative of the thermal environment.
• Wide temperature range: Black Body Calibrators must cover a broad range of temperatures to calibrate thermometers for various applications.

The LISUN BBF-1 Black Body Furnace

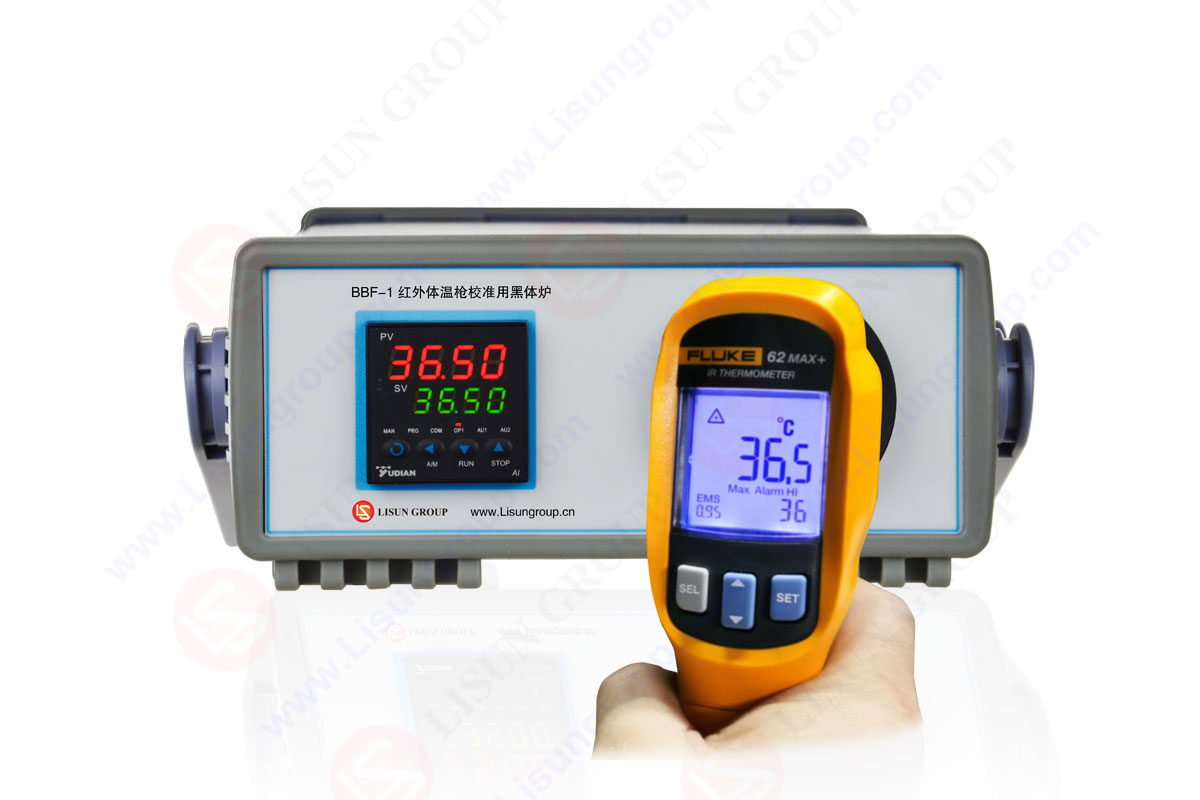

The LISUN BBF-1 Black Body Furnace is a high-performance Black Body Calibrator designed for calibrating infrared thermometers, including both ear and forehead models. This device offers exceptional temperature stability, a wide temperature range, and high emissivity, making it ideal for precise thermometer calibration.

Key Features of the LISUN BBF-1:
• Temperature Range: The LISUN BBF-1 can generate temperatures between 50°C and 500°C, which is suitable for a variety of infrared thermometer calibration needs, especially in medical and industrial applications.
• High Emissivity: With an emissivity of 0.99, the BBF-1 closely replicates the ideal black body, ensuring accurate thermal radiation.
• Precision Control: The device is equipped with advanced temperature control systems that allow for precise adjustments and stable readings, ensuring reliable calibration results.
• Large Aperture: The BBF-1 features a large aperture for easy measurement of the emitted radiation, which is crucial for calibrating devices with varying sensor sizes.

Table 1: Key Specifications of the LISUN BBF-1 Black Body Furnace

Feature	Specification
Temperature Range	50°C to 500°C
Emissivity	0.99
Temperature Stability	±0.1°C (within working range)
Aperture Size	80 mm (diameter)
Control Type	PID digital control
Heating Element	High-quality ceramic heater
Calibration Accuracy	±0.5°C at 100°C

Applications of the LISUN BBF-1 in Infrared Thermometer Calibration
Infrared thermometers are widely used in healthcare for non-contact temperature measurements, especially in situations where traditional thermometers may be inconvenient or impractical. These devices are used for measuring body temperature at the ear, forehead, or other parts of the body. However, to ensure that these measurements are accurate, infrared thermometers must be regularly calibrated using reliable reference standards.

The LISUN BBF-1 Black Body Furnace serves as an excellent calibration tool for infrared ear and forehead thermometers. The device provides a stable and controlled temperature source, allowing for accurate calibration across the full temperature range that these thermometers are likely to encounter in clinical settings. The high emissivity and precise temperature control ensure that the infrared thermometer reads accurately in accordance with the temperature set on the BBF-1.

Calibration Process Using the LISUN BBF-1
The process of calibrating an infrared thermometer using the LISUN BBF-1 involves the following steps:

• Set the Desired Temperature: The operator sets the desired temperature on the LISUN BBF-1, typically within the body temperature range (around 37°C to 42°C).
• Stabilize the Temperature: The BBF-1 stabilizes the temperature to ensure accurate radiation emission.
• Align the Thermometer: The infrared thermometer is aligned with the Black Body Furnace’s aperture, ensuring the sensor of the thermometer is within the measurement zone.
• Record the Measurement: The thermometer’s reading is compared to the known temperature of the BBF-1. Adjustments are made if the readings do not match.
• Repeat as Necessary: The process is repeated for different temperatures within the thermometer’s measurement range.

Table 2: Calibration Accuracy for Infrared Thermometers Using the LISUN BBF-1

Calibration Temperature (°C)	Infrared Thermometer Reading (°C)	Error (°C)
37	37.1	0.1
38	38	0
39	39	0
40	39.9	-0.1
41	41.1	0.1

Conclusion
Black Body Calibrators, such as the LISUN BBF-1 Black Body Furnace, are essential tools for ensuring the accurate calibration of infrared thermometers, including those used in medical settings for ear and forehead temperature measurement. These calibrators provide a stable and precise temperature source, allowing for accurate readings across a wide temperature range. The detailed specifications and calibration process outlined in this paper demonstrate the importance of using Black Body Calibrators to ensure the reliability and accuracy of infrared thermometers.

The LISUN BBF-1 offers several advantages, including its wide temperature range, high emissivity, and precise control, making it an ideal choice for calibrating infrared thermometers in a variety of applications. As temperature measurement technology continues to evolve, the role of Black Body Calibrators in maintaining accuracy and precision will remain essential.
