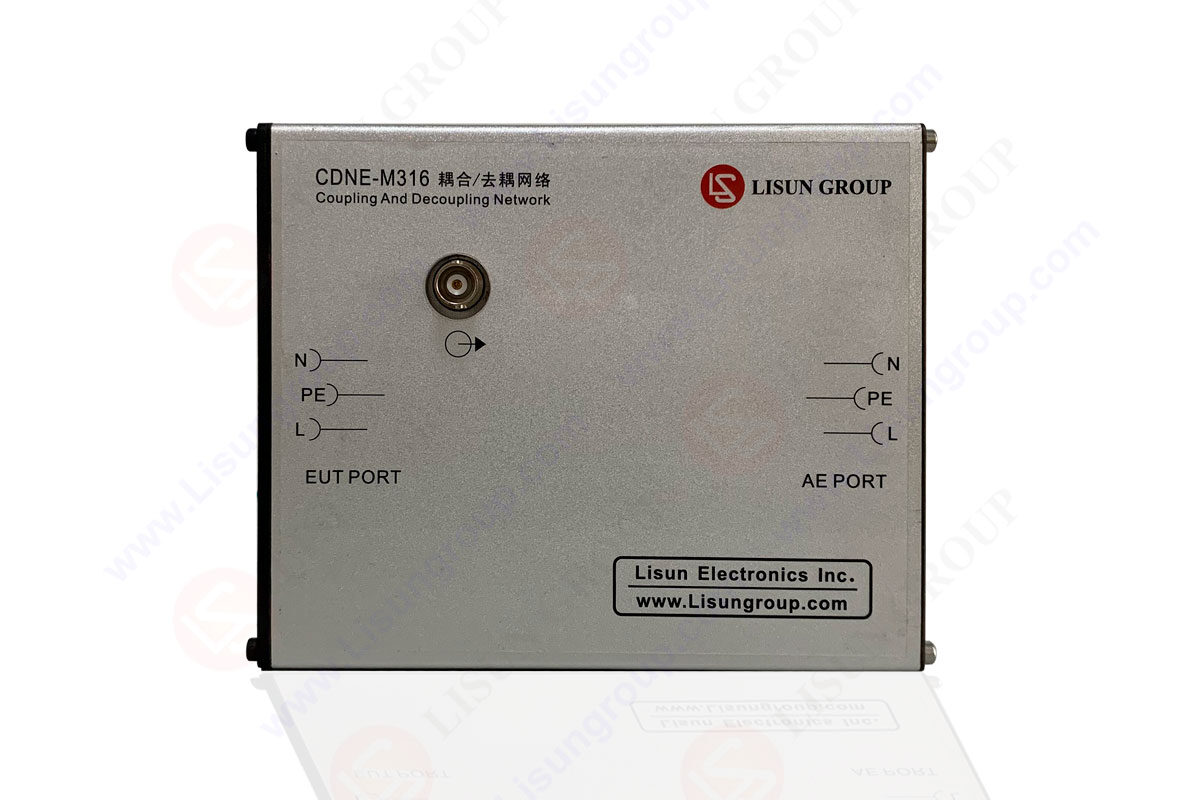

CDNE Coupling Decoupling Network: Principles, Applications, and Performance Analysis

Abstract
The CDNE Coupling Decoupling Network is an essential tool for conducting electromagnetic compatibility (EMC) testing. By allowing precise injection and isolation of signals in compliance with international standards, the CDNE ensures reliable assessment of a device’s electromagnetic emissions. This paper focuses on the working principles, applications, and specifications of CDNE networks, with a special emphasis on the LISUN CDNE-M316 Coupling and Decoupling Network.

Introduction
Electromagnetic interference (EMI) poses significant challenges to modern electronic devices, necessitating rigorous EMC testing to ensure compliance with regulatory standards like CISPR 16-1-2. Coupling Decoupling Networks (CDNEs) play a crucial role in this process by enabling accurate measurement of conducted emissions and immunity. The LISUN CDNE-M316 Coupling and Decoupling Network exemplifies advanced design and compliance, supporting EMC testing for single-phase systems.

Principles of CDNE Coupling Decoupling Network
The core function of a CDNE is to couple disturbance signals to the device under test (DUT) while simultaneously decoupling them from auxiliary equipment or unintended paths. This ensures that the DUT’s emissions are isolated for accurate measurement.

Key Components:

• Coupling Circuitry: Injects test signals into the DUT.
• Decoupling Filters: Prevents signal leakage to auxiliary devices.
• Isolation Mechanisms: Minimize interference between different equipment ports.

Specifications of LISUN CDNE-M316
The LISUN CDNE-M316 is tailored for single-phase systems and complies with the CISPR 16-1-2 standard. Below is an overview of its key specifications:

Parameter	Specification
Frequency Range	150 kHz to 30 MHz
Impedance	50 Ω ± 10%
Maximum Operating Voltage	300 V AC / DC
DUT Current Capacity	Up to 16 A
Compliance Standard	CISPR 16-1-2
Dimensions	300 mm × 120 mm × 100 mm
Weight	3.5 kg

Applications of CDNE Coupling Decoupling Network
• Compliance Testing: Ensures that devices meet EMC regulations for conducted emissions.
• Research and Development: Evaluates the electromagnetic characteristics of prototype designs.
• Quality Control: Verifies batch compliance during production.

Example Use Case:
The LISUN CDNE-M316 is ideal for EMC testing in household appliances, lighting systems, and IT equipment, offering precision in evaluating conducted noise within the 150 kHz to 30 MHz range.

Advantages of LISUN CDNE-M316
• High Accuracy: Ensures reliable signal coupling and decoupling.
• Robust Design: Withstands high voltage and current conditions.
• Compliance: Fully meets CISPR 16-1-2 standards.
• Ease of Use: Compact design facilitates seamless integration into EMC test setups.

Comparison with Alternative Solutions
To highlight the performance of the LISUN CDNE-M316, Table 2 compares it with other CDNE models:

Model	Frequency Range	Current Capacity	Compliance Standard	Weight
LISUN CDNE-M316	150 kHz to 30 MHz	Up to 16 A	CISPR 16-1-2	3.5 kg
Alternative Model A	150 kHz to 10 MHz	Up to 10 A	CISPR 16-1-2	5 kg
Alternative Model B	100 kHz to 50 MHz	Up to 20 A	EN 55015	4 kg

Challenges and Considerations
• Frequency Accuracy: Precision is vital when dealing with high-frequency noise.
• Load Matching: Improper matching can lead to inaccurate test results.
• Environmental Factors: Temperature and humidity can influence measurements.

Conclusion
The CDNE Coupling Decoupling Network, particularly the LISUN CDNE-M316, is indispensable for modern EMC testing. Its robust design and compliance with international standards ensure high accuracy and reliability, making it an excellent choice for researchers and manufacturers. Future advancements in CDNE technology will likely focus on wider frequency ranges and enhanced portability.
