Comprehensive Analysis of Digital Battery Tester: Focus on LISUN LS5562 Battery Tester

Battery testing is crucial for evaluating the performance, reliability, and safety of batteries used in various applications, including consumer electronics, automotive, and industrial sectors. A digital battery tester provides precise measurements of key battery parameters, helping manufacturers and users ensure optimal performance. This paper delves into the features, functionality, and applications of the LISUN LS5562 Battery Tester, a state-of-the-art digital battery tester known for its accuracy and versatility. Detailed explanations of the testing procedure, technical specifications, and a data analysis section are provided, highlighting the importance of digital battery testers in today’s energy-driven world.

Introduction
The demand for efficient and reliable batteries has surged with the growing use of electronic devices, electric vehicles, and renewable energy storage solutions. To ensure the quality and longevity of these batteries, rigorous testing is required. A digital battery tester plays a pivotal role in assessing battery performance by providing accurate data on voltage, current, resistance, and other critical parameters.

The LISUN LS5562 Battery Tester is a sophisticated digital battery tester designed to meet industry standards for testing various types of batteries, including lithium-ion, nickel-cadmium, and lead-acid batteries. This paper presents an in-depth analysis of the LISUN LS5562, discussing its technical capabilities, testing methodology, and practical applications.

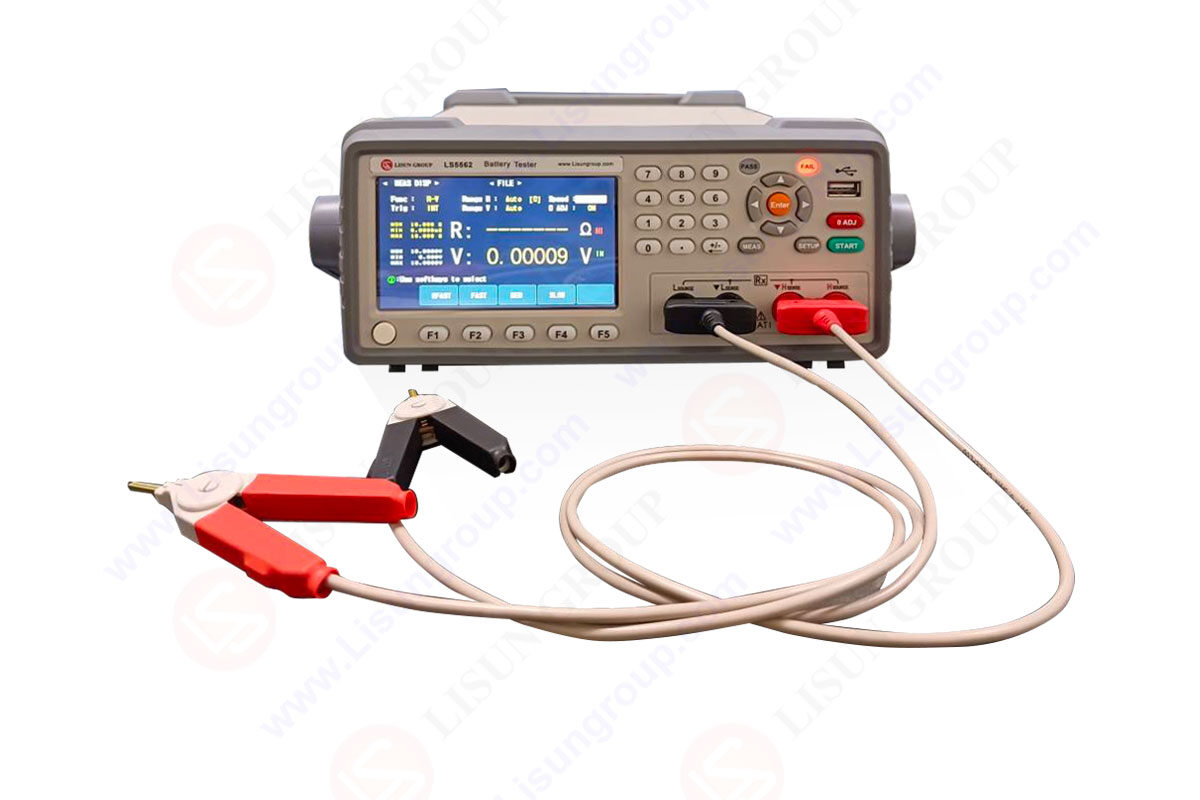

Overview of LISUN LS5562 Digital Battery Tester
The LISUN LS5562 is a high-precision digital battery tester engineered to evaluate the performance of different battery types under varying conditions. Key features of the LS5562 include:

• Voltage and Resistance Measurement: The tester accurately measures battery voltage and internal resistance, providing insights into the battery’s state of health.
• Discharge Testing: Capable of performing controlled discharge tests to evaluate battery capacity and performance under load conditions.
• Safety Protections: Integrated safety mechanisms, including over-voltage, over-current, and temperature protections, ensure safe testing operations.
• Data Logging and Analysis: The system supports real-time data logging, allowing users to analyze battery performance trends over time.

Below is a table summarizing the key specifications of the LISUN LS5562:

Parameter	Specification
Voltage Measurement Range	0 – 300V
Resistance Measurement Range	0.01mΩ – 300Ω
Discharge Current Range	0 – 200A
Measurement Accuracy	±0.5%
Display	LCD with backlight
Communication Interface	USB, RS232, LAN
Safety Protections	Over-voltage, Over-current, Over-temperature
Compliance	IEC/EN standards

Digital Battery Tester Operation and Testing Procedure
The operation of the digital battery tester involves several steps to ensure precise measurement of battery parameters:

• Test Setup: The battery under test (BUT) is connected to the LS5562 tester. The connections are made carefully to ensure proper contact and avoid any potential safety hazards.
• Parameter Configuration: Test parameters, including voltage range, discharge current, and resistance thresholds, are configured based on the type of battery being tested. These parameters are crucial for simulating real-world operating conditions.
• Measurement Execution: The tester initiates the measurement process, recording voltage, current, resistance, and other parameters in real-time. For discharge testing, the tester controls the current draw from the battery to evaluate its performance under load.
• Data Collection and Analysis: All measured data is logged and can be exported for further analysis. The results provide valuable insights into the battery’s capacity, internal resistance, and overall health status.
• Reporting: A comprehensive report is generated, detailing the test conditions, results, and any identified issues. This report is essential for product quality control and further development.

Test Results and Analysis
The data obtained from a digital battery tester like the LISUN LS5562 offers critical insights into battery performance. Below is a sample table showing data collected from testing a 12V lead-acid battery:

Test Condition	Voltage (V)	Resistance (mΩ)	Discharge Current (A)	Capacity (%)	Battery Status
Initial Test	12.6	50	0	100	Good
After 1 Hour Discharge	12	55	20	90	Normal Operation
After 2 Hours Discharge	11.5	60	20	75	Moderate Voltage Drop
After 3 Hours Discharge	11	65	20	60	Significant Voltage Drop
Final Test	10.5	70	20	50	Battery Needs Replacement

From the table, it is evident that the battery’s performance degrades over time under load. The increase in internal resistance and the corresponding decrease in voltage highlight the aging effects and capacity loss of the battery. These results are essential for determining whether the battery is suitable for continued use or needs replacement.

Importance of Digital Battery Tester in Battery Management
Digital battery testers are crucial for battery management systems, providing data that helps extend battery life, enhance safety, and improve overall performance. The LISUN LS5562 offers several benefits:

• Enhanced Safety: The tester identifies potential safety issues, such as excessive internal resistance or voltage drops, which can lead to hazardous conditions.
• Improved Efficiency: By accurately measuring battery parameters, the tester helps optimize charging and discharging cycles, extending the overall battery life.
• Quality Control: Manufacturers use digital battery testers during production and quality assurance processes to ensure batteries meet required specifications and standards.
• Predictive Maintenance: The data collected enables predictive maintenance, allowing for timely interventions before batteries fail.

Conclusion
The LISUN LS5562 digital battery tester is an invaluable tool for assessing battery performance, ensuring safety, and optimizing battery management. With its advanced measurement capabilities and robust safety features, the LS5562 provides precise and reliable results essential for various industries.

Through comprehensive testing, the digital battery tester allows manufacturers and end-users to make informed decisions regarding battery usage, maintenance, and replacement. As the demand for efficient and reliable batteries continues to grow, the role of advanced testing equipment like the LISUN LS5562 becomes increasingly critical in maintaining the safety and performance of battery-powered devices.
