Comprehensive Analysis of Radiated Interference Test Systems: Applications and Advantages of LISUN EMI-9KB EMI Test Receiver

Abstract
The radiated interference test plays a pivotal role in ensuring that electronic devices comply with electromagnetic compatibility (EMC) standards. This paper focuses on the principles, applications, and technical specifications of radiated interference tests using the LISUN EMI-9KB EMI Test Receiver. By exploring the importance of radiated interference tests, this paper provides insights into how the LISUN EMI-9KB addresses modern testing needs, especially in conducted and radiated interference testing systems. The discussion is supplemented with detailed tables and diagrams to elucidate the testing process and results.

Introduction
Radiated interference tests are crucial for evaluating the electromagnetic emissions of electronic devices and ensuring that these emissions stay within permissible limits as prescribed by EMC standards. The LISUN EMI-9KB EMI Test Receiver is a highly reliable system used for measuring conducted and radiated interference. This paper delves into the technical principles, methodology, and application scenarios of radiated interference tests with a focus on the LISUN EMI-9KB system.

Principles of Radiated Interference Test
Radiated interference tests are designed to detect unintended electromagnetic emissions from devices under test (DUT). These emissions, if not controlled, can cause malfunctions in other electronic systems. The process typically involves:

• Test Environment Setup: Conducted in an anechoic chamber or open-area test site to eliminate external interference.
• Equipment: Includes a test receiver (such as LISUN EMI-9KB), antennas, and ancillary devices.
• Test Procedure: The DUT is powered and operated in various modes while the receiver captures emissions across specified frequency ranges.

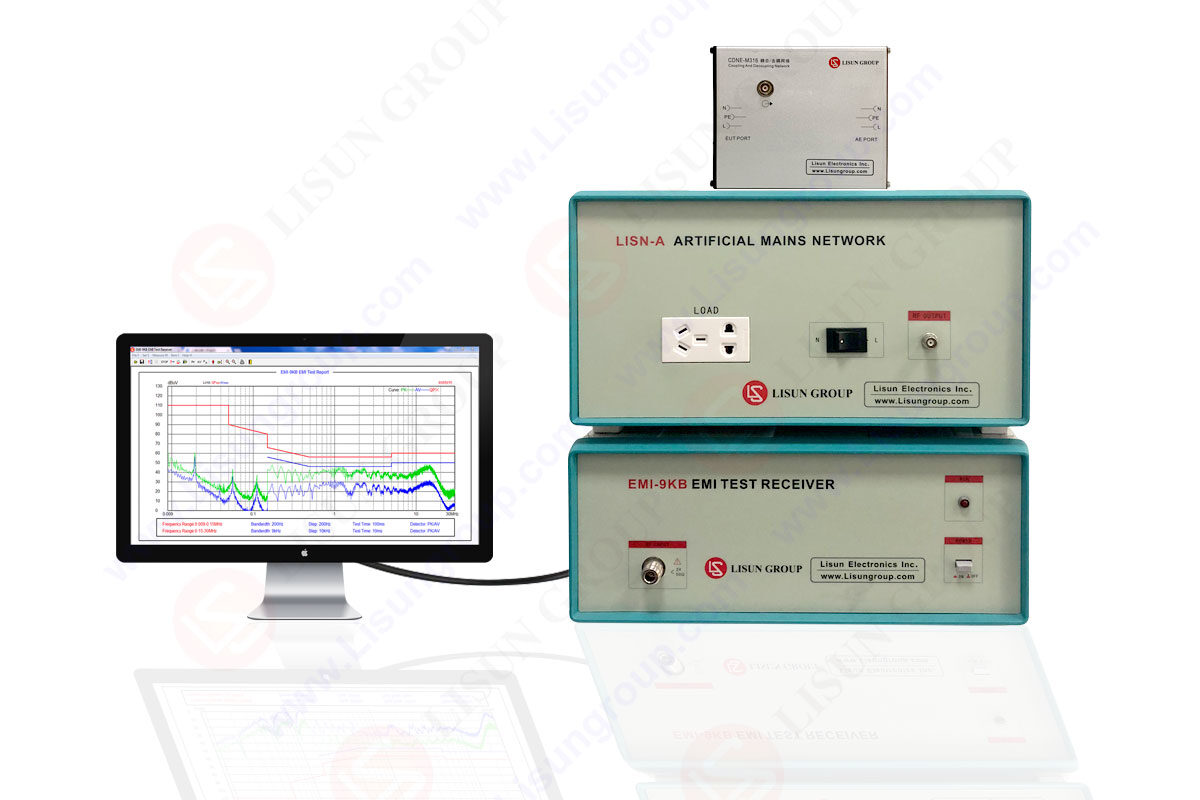

Features of the LISUN EMI-9KB EMI Test Receiver
The LISUN EMI-9KB system is engineered to meet international standards such as CISPR 16-1, GB/T 6113, and EN 55016. Key features include:

• Frequency Range: 9 kHz to 30 MHz for conducted emissions and 30 MHz to 1 GHz for radiated emissions.
• High Sensitivity: Detects low-level emissions with a preamplifier.
• Versatility: Suitable for testing household appliances, lighting systems, and industrial equipment.
• User-Friendly Interface: Simplifies configuration and data analysis.

Applications of Radiated Interference Tests
1. Consumer Electronics
Ensures compliance with EMC standards to prevent interference with nearby devices such as smartphones, televisions, and routers.

2. Automotive Industry
Evaluates emissions from electronic control units (ECUs), infotainment systems, and hybrid electric vehicles.

3. Industrial Equipment
Tests emissions from large machinery to maintain operational safety in industrial environments.

4. Lighting Systems
The LISUN EMI-9KB is particularly effective in analyzing interference from LED drivers and ballasts.

Test Setup and Procedures

The test setup for radiated interference tests using the LISUN EMI-9KB involves the following:

Preparation

• Place the DUT on a non-conductive table.
• Position the EMI test receiver and antenna according to the specified distance (commonly 3 meters for radiated tests).

Testing

• Operate the DUT in different modes to ensure comprehensive analysis.
• Use the LISUN EMI-9KB to scan across frequency ranges.

Data Analysis

• The receiver provides real-time analysis of emissions.
• Generate a compliance report indicating whether the DUT meets EMC standards.

Technical Data

Parameter	Specification
Frequency Range	9 kHz – 1 GHz
Dynamic Range	9 kHz – 100 dB
Detector Types	Peak, Quasi-peak, Average
Standards Compliance	CISPR 16-1, EN 55016, GB/T 6113
Application Areas	Conducted and Radiated Emissions

Advantages of the LISUN EMI-9KB
• High Accuracy: The LISUN EMI-9KB ensures precise measurements, crucial for sensitive applications like medical devices and aerospace systems.
• Cost-Effectiveness: Combines advanced features with affordability, making it accessible for small and medium enterprises.
• Comprehensive Testing: Capable of both conducted and radiated interference tests in one system.

Conclusion
Radiated interference tests are indispensable for ensuring the electromagnetic compatibility of electronic devices. The LISUN EMI-9KB EMI Test Receiver stands out as a versatile, accurate, and cost-effective solution for such tests. Its compliance with international standards and user-friendly design make it an ideal choice for industries ranging from consumer electronics to industrial machinery.

Future research should explore integrating AI-driven analytics with test receivers like the LISUN EMI-9KB to enhance testing efficiency and accuracy.
