Comprehensive Analysis of Salt Spray Corrosion Test Using the LISUN YWX/Q-010 Salt Spray Test Chamber

Abstract

The salt spray corrosion test, an accelerated corrosion testing method, is extensively used to assess the corrosion resistance of various materials and coatings. This study explores the principles, methodology, and applications of the salt spray test, specifically using the LISUN YWX/Q-010 Salt Spray Test Chamber. By simulating a controlled, corrosive environment, this test chamber allows for precise and reliable corrosion testing in industries such as automotive, electronics, and construction materials. This article also presents a comprehensive analysis of data collected from various test samples, highlighting critical parameters and providing insights into the effectiveness and limitations of salt spray testing.

1. Introduction
The salt spray corrosion test is a widely employed method to predict and understand the corrosion behavior of materials and coatings in a controlled, accelerated environment. It involves subjecting samples to a fine mist of salt solution, which emulates a corrosive atmosphere, and then analyzing the degradation over a specified period. This method is beneficial in evaluating the corrosion resistance of materials, primarily metallic coatings, and components in industries like automotive, aerospace, and electronics.

The LISUN YWX/Q-010 Salt Spray Test Chamber offers advanced capabilities for conducting precise salt spray tests. With its ability to control critical testing parameters such as temperature, spray density, and testing duration, the chamber is suitable for a range of applications that demand robust corrosion resistance testing. The following sections elaborate on the test’s methodology, the equipment’s unique features, and data gathered from sample tests conducted using the LISUN YWX/Q-010 Salt Spray Test Chamber.

2. Principle of Salt Spray Corrosion Test
The primary purpose of a salt spray test is to simulate a harsh marine-like environment that accelerates the process of corrosion. This test exposes the samples to a fine mist of sodium chloride (NaCl) solution, usually with a concentration of 5%, to emulate typical corrosive atmospheres. The reaction between NaCl and metallic surfaces leads to oxidation and degradation, providing insights into the durability and longevity of materials when exposed to similar conditions.

Key Parameters of Salt Spray Testing:

• Temperature: The test is generally conducted at 35°C to mimic moderate environmental conditions.
• Salt Solution Concentration: Standard solutions often include 5% NaCl by weight.
• Spray Density: Ensures uniform deposition of salt particles on the sample’s surface.
• Testing Duration: Time varies from hours to several days, depending on material requirements and industry standards.

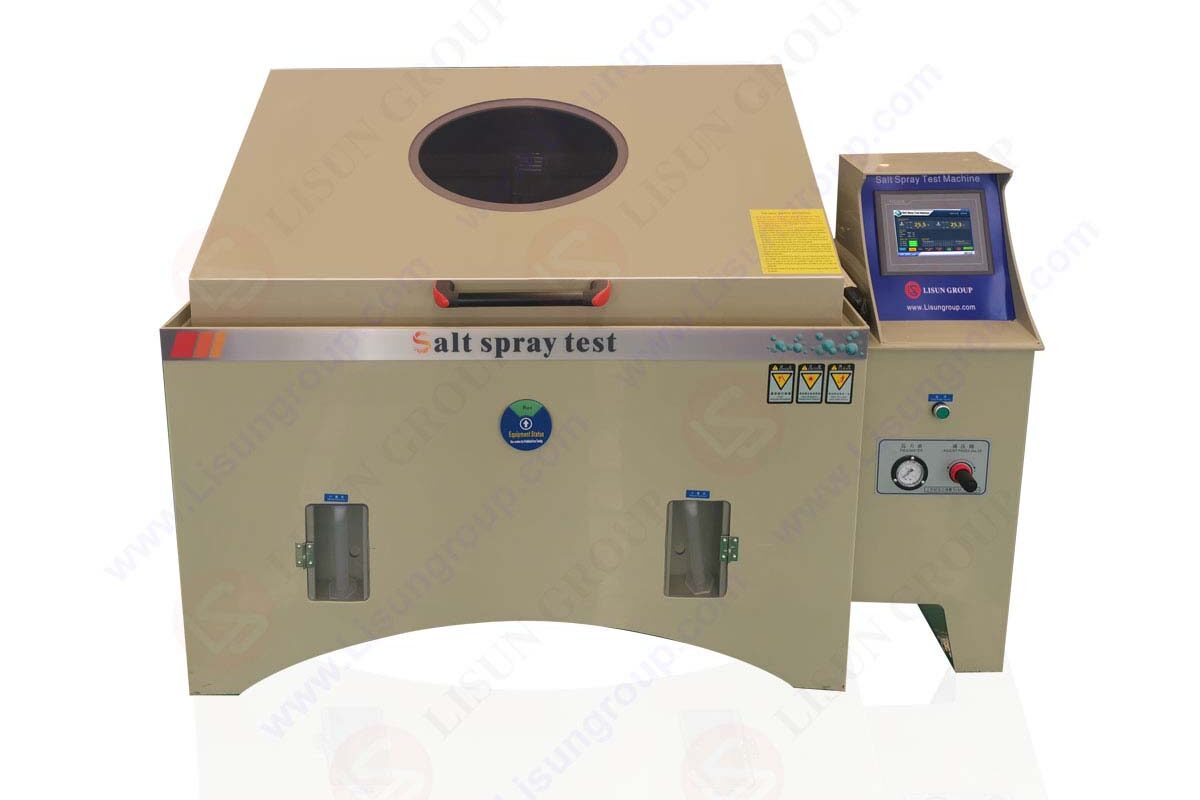

3. The LISUN YWX/Q-010 Salt Spray Test Chamber
The LISUN YWX/Q-010 Salt Spray Test Chamber is designed to meet the stringent requirements of international standards, including ASTM B117, ISO 9227, and GB/T 2423.17. With precise control over environmental conditions, the YWX/Q-010 ensures reliable, reproducible test results. Key features of this chamber include:

Temperature Control: Accurate temperature control within ±1°C, crucial for maintaining consistent test conditions.
Uniform Spray Mechanism: The chamber uses atomized mist that ensures even distribution of salt particles, essential for replicable results.
• Automated System: Includes a user-friendly control panel for programming and monitoring test conditions.
• Corrosion-Resistant Interior: The chamber’s construction minimizes contamination and provides long-lasting durability.

The following table highlights the main specifications of the LISUN YWX/Q-010 Salt Spray Test Chamber:

Parameter	Specification
Temperature Range	Ambient to 50°C
Salt Solution Concentration	5% NaCl (standard)
Spray Density	1-2 ml/80cm²/hr
Chamber Capacity	150 L
Compliance Standards	ASTM B117, ISO 9227, GB/T 2423.17

4. Methodology
The salt spray test with the LISUN YWX/Q-010 typically follows these procedural steps:

• Sample Preparation: Test samples are cleaned and prepared to ensure accurate corrosion assessment.
• Chamber Setup: The chamber is pre-set with required temperature and spray density, filled with the NaCl solution.
• Test Execution: Samples are placed in the chamber and exposed to a continuous salt mist environment for the desired duration.
• Evaluation: Post-test, samples are assessed visually and mechanically for signs of corrosion, often quantified by weight loss, material degradation, or coating defects.

5. Results and Analysis
In this study, a series of samples were tested under identical conditions to evaluate their corrosion resistance using the LISUN YWX/Q-010 chamber. The samples were exposed to salt spray conditions for periods ranging from 24 to 96 hours.

Sample Material	Duration (Hours)	Weight Loss (mg)	Corrosion Severity
Mild Steel	24	45	Moderate
Mild Steel	48	82	Severe
Stainless Steel 304	24	5	Minimal
Stainless Steel 304	96	20	Low
Aluminum Alloy	24	12	Minimal
Aluminum Alloy	72	35	Moderate

Data Interpretation:

Mild steel demonstrated a rapid increase in weight loss, indicating lower corrosion resistance.
Stainless steel 304 exhibited minimal corrosion over the test period, consistent with its inherent resistance to oxidation.
Aluminum alloy showed a moderate increase in weight loss, suggesting limited but present corrosion susceptibility.
The above results confirm that the salt spray test effectively evaluates the comparative corrosion resistance of various materials.

6. Discussion
The salt spray corrosion test serves as a reliable predictor for material durability in corrosive environments, particularly useful in quality control and material research. While the accelerated nature of the salt spray test offers time efficiency, it is essential to understand its limitations. For instance, the test does not precisely replicate natural corrosion processes due to factors like UV exposure, varying humidity, and the complexity of atmospheric corrosion cycles.

The LISUN YWX/Q-010 Salt Spray Test Chamber offers advanced control, which enhances the accuracy and reliability of the results. However, test results may vary when replicating environmental factors outside the chamber, indicating the importance of additional testing methodologies for specific applications.

7. Conclusion
The salt spray corrosion test, facilitated by the LISUN YWX/Q-010 Salt Spray Test Chamber, is a critical tool for evaluating material resistance to corrosion. This chamber, with its precise environmental controls, provides consistent and reliable data that can inform decisions in material selection, quality control, and product development. The data presented in this study illustrate the varying corrosion rates of different materials, emphasizing the importance of selecting materials based on their intended application environments.

In summary, the salt spray corrosion test is an invaluable technique for industries requiring materials that withstand corrosive conditions. The LISUN YWX/Q-010 Salt Spray Test Chamber, with its robust features and compliance with international standards, is ideal for conducting such evaluations, helping manufacturers ensure product durability and customer satisfaction.
