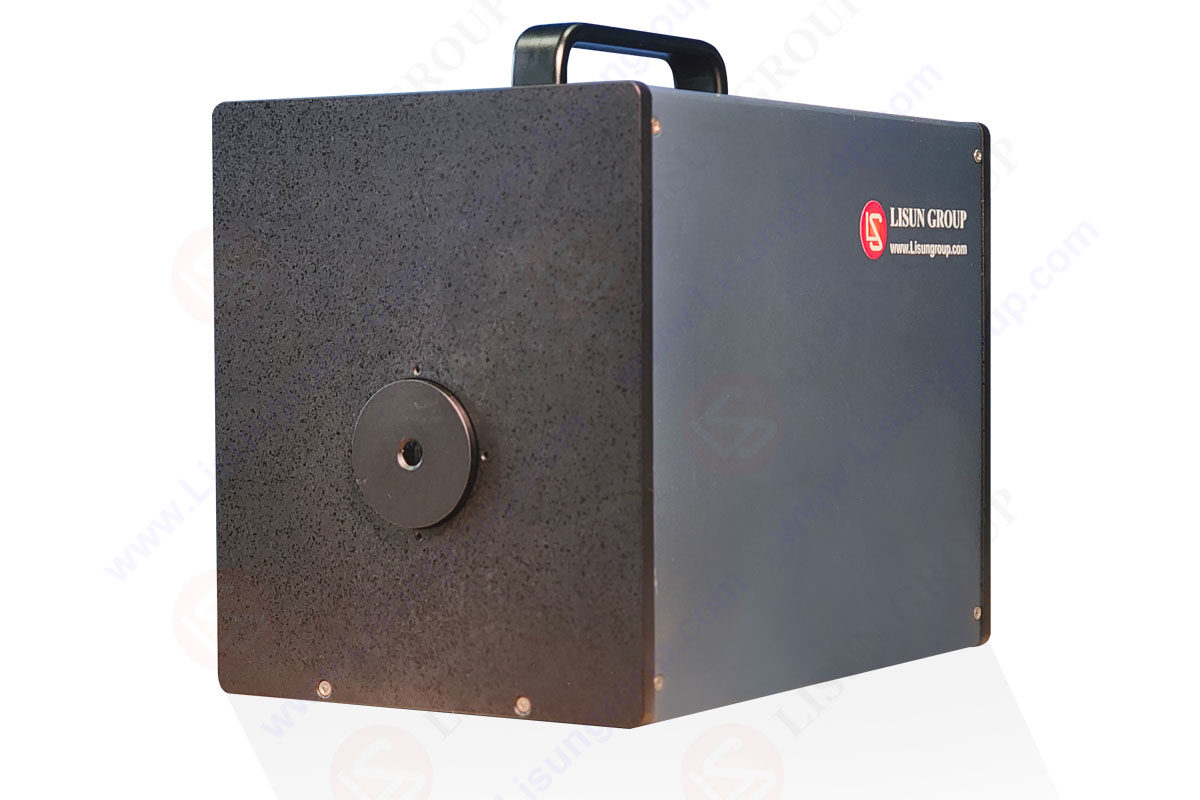

Development of a Portable Retinal Blue Light Hazard Tester Based on Laboratory Photobiological Safety Testing Systems

Abstract

The increasing prevalence of LED lighting has raised concerns regarding blue light hazards to human eyes. Traditional laboratory-based photobiological safety testing systems, while accurate, often lack portability and ease of use in diverse application scenarios. This paper discusses the development of a Portable Retinal Blue Light Hazard Tester, specifically the LISUN EN62471-P model, which addresses these limitations by offering a compact, user-friendly solution for on-site assessments. The device adheres to international standards, ensuring reliable and consistent measurements across various settings.

Introduction

With the widespread adoption of LED technology in lighting and display systems, concerns have emerged about the potential hazards associated with blue light exposure. Blue light, particularly in the 400–500 nm wavelength range, has been linked to retinal damage and other ocular issues. To mitigate these risks, international standards such as IEC/EN 62471 have been established to evaluate the photobiological safety of lamps and lamp systems. Traditional laboratory-based testing systems, while comprehensive, are often cumbersome and not suited for field assessments. To address this gap, the LISUN EN62471-P Portable Retinal Blue Light Hazard Tester was developed, offering a mobile solution without compromising measurement accuracy.

Design and Development

The development of the Portable Retinal Blue Light Hazard Tester was grounded in the principles of existing laboratory photobiological safety testing systems. Key design considerations included portability, user-friendliness, and compliance with international safety standards.

Key Features

• Portability: The device is compact and lightweight, facilitating easy transportation and on-site assessments.
• Ease of Use: Designed with user-friendly interfaces, it allows operators with minimal training to perform accurate measurements.
• Comprehensive Measurement Range: The tester covers a wavelength range from 300 nm to 1050 nm, encompassing the critical blue light spectrum.
• Compliance with Standards: Adheres to IEC/EN 62471 guidelines, ensuring that measurements are consistent with international safety requirements.

Technical Specifications

The LISUN EN62471-P is equipped with the following technical specifications:

Wavelength Range: 300 nm to 1050 nm
• Measurement Distance: Adjustable, with a standard distance of 200 mm
• Field of View (FOV) Range: 1.5 mrad to 110 mrad, accommodating various exposure durations and measurement requirements
• Acceptance Aperture: Diameter of 7 mm for radiance measurements; 20 mm and 7 mm for irradiance measurements

Measurement Principles

The tester operates by measuring the spectral radiance and irradiance of light sources within the specified wavelength range. It employs optical filters and sensors calibrated to detect blue light hazards accurately. The device calculates the weighted radiance, considering the spectral sensitivity of the human eye to blue light, and classifies the hazard according to established risk groups.

Risk Group Classification

According to IEC/EN 62471, light sources are classified into four risk groups based on their potential photobiological hazards:

• Risk Group 0 (RG0): No risk
• Risk Group 1 (RG1): Low risk
• Risk Group 2 (RG2): Moderate risk
• Risk Group 3 (RG3): High risk

The Portable Retinal Blue Light Hazard Tester evaluates light sources and assigns them to the appropriate risk group, aiding in safety assessments and regulatory compliance.

Applications

The portability and ease of use of the LISUN EN62471-P make it suitable for various applications, including:

• On-Site Assessments: Ideal for evaluating lighting installations in workplaces, schools, hospitals, and public spaces.
• Quality Control: Useful for manufacturers in ensuring their products comply with photobiological safety standards.
• Research and Development: Assists researchers in studying the effects of blue light and developing safer lighting solutions.

Conclusion

The development of the Portable Retinal Blue Light Hazard Tester represents a significant advancement in photobiological safety assessment tools. By combining the accuracy of laboratory systems with the convenience of portability, the LISUN EN62471-P enables comprehensive and efficient evaluations of blue light hazards across various settings. Its adherence to international standards ensures that users can trust the reliability of its measurements, contributing to enhanced ocular safety in environments where artificial lighting is prevalent.

For a visual demonstration of the LISUN EN62471-P Portable Retinal Blue Light Hazard Tester, you may refer to the following video:
