27 Jun, 2023 2417 Views Author: Raza Rabbani

Digital Oscilloscope vs. Analog Oscilloscope: Which is Right for You?

Introduction
There are two types of oscilloscopes, digital and analog, from which to choose for your electrical measuring requirements. There are benefits and drawbacks to using either kind of oscilloscope. To help you decide which sort of oscilloscope is best for you, this article will compare digital and analog models.

You may pick the oscilloscope that is ideal for your needs by thinking about things like measurement accuracy, signal integrity, usability, functionality, and pricing.

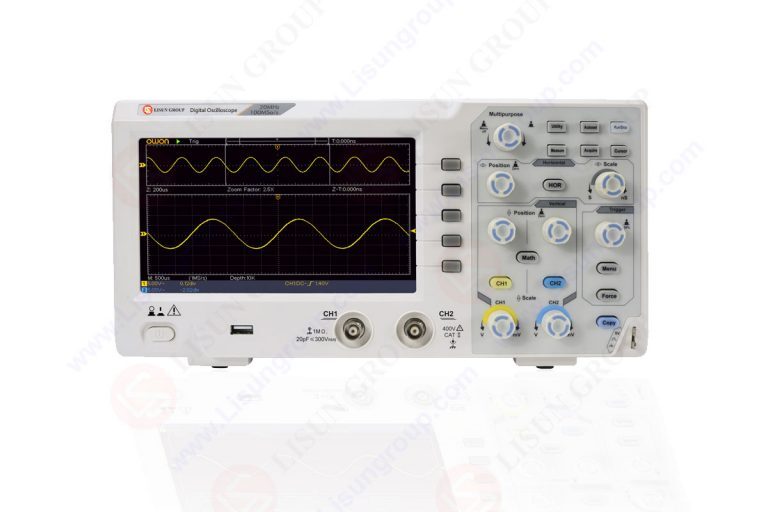

Digital Oscilloscopes:
Measurement Accuracy and Precision
Digital oscilloscopes truly come into their own when it comes to making accurate readings. Their high-resolution analog-to-digital converters (ADCs) make it feasible for them to do accurate waveform analysis as well as characterisation.

The digitization process gets rid of the majority of the waveform data’s errors and sources of noise, which ultimately results in more accurate readings. The improved measurement accuracy of a digital oscilloscope is particularly useful in a number of applications, including research and development, the testing of complex digital systems, and the analysis of high-speed signals.

Signal Processing and Analysis Capabilities
A significant advantage offered by digital oscilloscopes is greater signal processing and analysis capabilities. This is a significant gain. These instruments include a variety of mathematical features, some of which include the Fast Fourier Transform (FFT), which is used for frequency domain analysis; mathematical operations on waveforms; and advanced triggering options.

Digital oscilloscopes often come equipped with built-in measuring capabilities, automated measurements, and waveform analysis tools. These features make it much simpler to do complex signal analysis.

These capabilities increase productivity, making it possible to conduct thorough signal analysis, and simplify the process of diagnosing and fixing problems in complex electrical systems.

Storage and Data Management
The information that is obtained via the use of a digital oscilloscope may be simply saved and altered. Because of its internal or external memory and storage capabilities, waveform data may be saved and retrieved for later use in analysis or as a reference whenever it is necessary.

This function is very helpful if dealing with signals that are either complex or intermittent. Waveforms can be collected and examined using digital oscilloscopes, which enables analysis that could be missed with real-time observation alone.

Waveforms can be captured and analyzed using digital oscilloscopes. The recording of measurement results is made more simpler, as well as the improvement of cooperation, by transferring waveform data to a computer or electronically exchanging it with one another.

Flexible Display and User Interface
Digital oscilloscopes are simple to use and come with a broad range of display settings. You may quickly pan, zoom, and reposition the waveform to inspect it from different angles.

Modern digital oscilloscopes often have user-friendly features like as touchscreens, menu systems, and graphical user interfaces (GUIs), which make it simple to configure and operate the device. The process of measuring is streamlined as a result of its versatility and user-friendliness, which results in a rise in the productivity of the workforce.

Connectivity and Remote Control
Connectivity choices for digital oscilloscopes commonly include USB, Ethernet, and Wi-Fi. These choices allow for trouble-free information exchange, remote management, and program incorporation. Data collected in the form of waveforms may be simply exported to a computer and shared or analyzed with other people.

The measuring procedure is made more convenient and versatile when the oscilloscope can be operated from a distance, measurements can be automated, and the device can be integrated into automated test systems.

Analog Oscilloscopes:
Signal Fidelity and Real-Time Performance
The accuracy and speed of an analog oscilloscope’s readings are unmatched. These gadgets have a cathode ray tube (CRT) screen where the input signal is shown immediately for instant visual feedback. Waveforms may be captured and shown in real time on an analog oscilloscope, providing a realistic depiction of rapidly changing signals.

Applications such as analog circuit design, RF measurements, and waveform observation, where signal dynamics and subtleties are critical, may benefit from their large bandwidth and minimal signal distortion.

Cost-Effective Solution
For basic waveform observation and modest measurements, an analog oscilloscope is often more cost-effective than a digital oscilloscope. For those on a tighter budget, or for uses where sophisticated analysis and digital processing are unnecessary, an analog oscilloscope may be the way to go. For simple signal visualization and measuring tasks, they are a cheap and effective option.

Simplicity and Intuitive Operation
The rise in popularity of analog oscilloscopes may be attributed to the accessibility of these instruments. The display of waveforms on a screen composed of cathode ray tubes (CRTs) is analogous to seeing a picture of the signal as it is being generated in real time.

Analog oscilloscopes often have specific knobs and buttons for altering vertical and horizontal scales, trigger settings, and other features. These oscilloscopes are user-friendly for inexperienced users as well as those who want a more tactile and intuitive interface.

Wide Dynamic Range
In compared to digital oscilloscopes, analog oscilloscopes can provide a more broader dynamic range. They are able to handle large signal amplitudes without producing distortion, which allows them to properly represent signals of varied sizes. Because of this ability, they may be used in a wide variety of applications.

Analog oscilloscopes are well-suited for use in domains such as power electronics, motor control, and audio measurements, all of which need the measurement of signals with a broad range of intensities. Because of this attribute, analog oscilloscopes are well-suited for use in these fields.

Response to Fast Signal Transients
An analog oscilloscope, in addition to showing the variations of a waveform in real time, also has a fantastic response to the rapid signal transients that it observes. Users of an analog oscilloscope do not have to deal with the limitations imposed by digital sampling, therefore they are able to see rapid changes in the signal, such as glitches or transient occurrences, on the CRT screen.

This ability comes in handy in circumstances in which it is important to visually inspect waveforms that are fast changing or to recognize timing irregularities. You can consult LISUN for better oscilloscopes.

Choosing the Right Oscilloscope for Your Needs:
When deciding between digital and analog oscilloscopes, keep the following in mind:

Measurement Requirements:
Consider your bandwidth, signal quality, and analytic requirements to choose the best measurement solution. While digital oscilloscopes are ideal for complicated measurements, sophisticated analysis, and high-speed signals, analog ones are superior in terms of signal quality, real-time performance, and the most fundamental waveform visualization.

Budget Constraints:
Think about how much money you can allocate. While the initial investment in a digital oscilloscope is often more owing to its superior features and capabilities, an analog oscilloscope is the more economical choice for less complex uses.

User Experience and Familiarity:
Take into account how familiar you are with using various oscilloscopes. An analog oscilloscope may be a good option if you’d want something with a less complicated interface and a more hands-on approach. If you’re used to working with digital interfaces and need powerful analytical capabilities, a digital oscilloscope may be the way to go

Future Growth and Application Demands:
Consider prospective new needs for analytical tools and measures to take into account for when the time comes. In contrast to its analog counterparts, digital oscilloscopes may be updated with new features and capabilities as needed.

Conclusion
Your decision between a digital oscilloscope and an analog oscilloscope should be guided by your measuring requirements, available funds, personal preferences, and plans for expansion.

Digital oscilloscopes are the gold standard for complicated tests because to their superior analytical features, precision in measurements, and adaptability in data handling. When it comes to fundamental waveform viewing, an analog oscilloscope provides the most benefits in terms of signal quality, real-time performance, ease of use, and affordability.

You may pick the oscilloscope that is most suitable for your needs by carefully examining your requirements and learning about the benefits of each kind.
