Earth Resistance Tester and Its Role in Electrical Safety Analysis: A Detailed Overview of the LISUN LS9955 Automatic Safety Test System

Abstract:

Electrical safety is a critical concern across various industries, especially when dealing with electronic devices and electrical components. Ensuring that electrical equipment meets safety standards is paramount to preventing accidents and ensuring user safety. One of the essential tests in this domain is the Earth Resistance Test, which is a key part of assessing electrical safety. The LISUN LS9955 Automatic Safety Test System, equipped with advanced features, including an Earth Resistance Tester, is designed to streamline and automate the safety testing process. This paper explores the importance of Earth Resistance Testing in electrical safety, the functionality of the LISUN LS9955, and its applications in real-world testing scenarios.

1. Introduction
Electrical safety testing plays an essential role in safeguarding people and property from potential electrical hazards. The Earth Resistance Tester, as part of an electrical safety analyzer, is used to measure the resistance between an electrical device’s earth terminal and the ground. A low earth resistance value ensures that the system can safely discharge any stray electrical currents to the ground, preventing shock hazards and protecting sensitive electronic components.

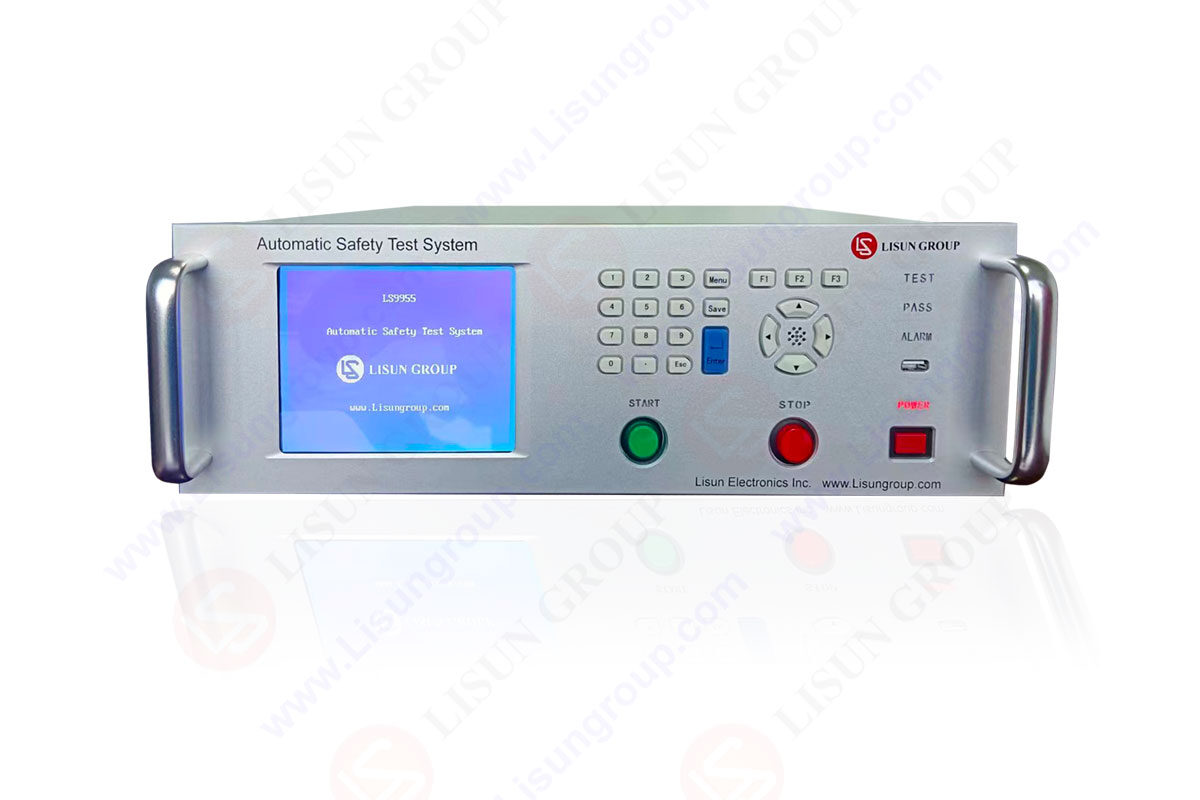

The LISUN LS9955 Automatic Safety Test System is a versatile and highly accurate safety testing instrument, designed to streamline the testing process. This system includes an Earth Resistance Tester and is capable of performing multiple electrical safety tests on various devices, such as household appliances, lighting equipment, and industrial machines. By automating the testing process, the LISUN LS9955 enhances testing efficiency, reduces human error, and ensures compliance with national and international safety standards.

This paper discusses the role of Earth Resistance Testing in electrical safety analysis and delves into the key features and benefits of the LISUN LS9955 Automatic Safety Test System.

2. The Importance of Earth Resistance Testing in Electrical Safety

2.1 Overview of Earth Resistance Testing

The Earth Resistance Test, also known as the ground resistance test, is a crucial aspect of electrical safety. It is designed to measure the resistance between an electrical device’s ground terminal and the actual ground. This test ensures that electrical equipment is correctly grounded, minimizing the risk of electric shocks. A device’s ground system plays a vital role in safely redirecting fault currents to the earth, which could otherwise result in dangerous electrical leakage or sparking.

Inadequate grounding or poor earth resistance can lead to a host of safety issues, including electric shocks, fire hazards, and malfunctioning electrical components. This is especially significant in environments with sensitive equipment or high-voltage installations. Regular Earth Resistance Testing is essential for ensuring electrical equipment meets the necessary safety standards.

2.2 Standards and Guidelines for Earth Resistance Testing

Various international standards, including IEC 60364, IEC 61010, and UL 61010, provide guidelines for performing Earth Resistance Tests. These standards specify acceptable resistance limits and outline testing procedures for safety equipment.

The earth resistance value should generally be less than 1 ohm for most electrical equipment, ensuring efficient current dissipation. However, the acceptable resistance value may vary depending on the type of equipment and application. The Earth Resistance Tester provides reliable measurements to confirm that the grounding system of the electrical device meets the required standards.

3. The LISUN LS9955 Automatic Safety Test System

The LISUN LS9955 Automatic Safety Test System is an integrated solution designed for performing comprehensive electrical safety testing, including Earth Resistance Testing. The system automates the process, which not only saves time but also improves accuracy and consistency.

3.1 Key Features of the LISUN LS9955

Multiple Test Functions: The LISUN LS9955 combines various safety tests in a single platform, including Earth Resistance Testing, insulation resistance testing, hipot testing (high-voltage tests), leakage current testing, and functional testing.

User-Friendly Interface: The system offers a simple, intuitive interface that allows operators to set up and perform tests quickly. The automated workflow minimizes human error, ensuring that tests are conducted accurately and efficiently.

Advanced Earth Resistance Testing: The Earth Resistance Tester within the LISUN LS9955 is capable of performing precise resistance measurements, ensuring that equipment meets safety standards. The system displays real-time data and test results, providing detailed reports for further analysis.

Compliance with Standards: The LISUN LS9955 supports compliance with global safety standards, such as IEC 60364, UL 61010, and IEC 61010. It is capable of testing devices for electrical safety in accordance with the required national and international guidelines.

High Accuracy and Reliability: The LISUN LS9955 delivers high accuracy and repeatability, critical factors when assessing the safety of electrical devices.

3.2 Earth Resistance Testing with LISUN LS9955

The Earth Resistance Tester in the LISUN LS9955 measures the resistance of the ground connection of electrical devices. The tester applies a low voltage to the device under test (DUT) and then measures the current that flows through the ground system. Based on these measurements, the system calculates the earth resistance value.

The LISUN LS9955 provides users with:

Real-Time Test Results: The Earth Resistance Tester gives immediate feedback on the resistance value, allowing users to determine if the device meets the acceptable standards.
Automated Test Sequences: Users can set up and execute multiple test procedures, including Earth Resistance Testing, with a single press of a button. This automation ensures efficient and consistent testing.
Pass/Fail Indicators: The system automatically compares the test results against predefined safety limits and provides clear pass/fail indications, streamlining the decision-making process.

4. Applications of the Earth Resistance Tester in Real-World Scenarios

The LISUN LS9955 Automatic Safety Test System is used extensively in a variety of industries to ensure electrical safety. Some of the common applications include:

4.1 Household Appliances Testing

For appliances such as refrigerators, air conditioners, and washing machines, ensuring proper grounding is essential for preventing electric shock hazards. The Earth Resistance Tester in the LISUN LS9955 ensures that the earth resistance is within acceptable limits, confirming that the appliance is safe for use.

4.2 Lighting Equipment and Electronics Testing

Lighting equipment, including LED fixtures and streetlights, and electronic components are highly sensitive to electrical malfunctions. The Earth Resistance Test verifies that these devices have a secure and low-resistance grounding system, reducing the risk of electrical faults or fires.

4.3 Industrial Equipment Testing

In industrial environments, machinery and electrical panels often operate at high voltages. The Earth Resistance Tester plays a critical role in ensuring the equipment’s safety, particularly for high-power machines that require robust grounding systems to handle potential fault currents.

4.4 Medical Equipment Testing

Medical devices, especially those used in high-voltage settings such as X-ray machines or dialysis equipment, must comply with stringent safety standards. The Earth Resistance Tester in the LISUN LS9955 helps confirm that these devices are properly grounded, reducing the risk of electrical hazards in medical environments.

5. Conclusion
The Earth Resistance Tester is an indispensable tool for ensuring electrical safety. By measuring the resistance between an electrical device and the ground, it helps confirm that electrical equipment meets safety standards and reduces the risk of electrical hazards such as shocks or fires. The LISUN LS9955 Automatic Safety Test System, which includes an advanced Earth Resistance Tester, provides a reliable, accurate, and efficient solution for performing electrical safety tests on a wide range of devices.

With its ability to automate testing processes, the LISUN LS9955 enhances testing efficiency and ensures that devices comply with international safety standards. Whether in manufacturing, research and development, or quality assurance, the LISUN LS9955 is an invaluable tool for maintaining electrical safety across various industries.

References

IEC 60364: Low-voltage electrical installations.
UL 61010: Safety requirements for electrical equipment for measurement, control, and laboratory use.
