EMI Test Receivers for Radio Frequency Identification (RFID) Systems: Optimizing Performance and Range

Introduction
The use of RFID systems, which use radio waves to identify and track objects, has spread across many sectors because of the advantages they provide. The performance and operating range of RFID systems, however, may be severely impacted by electromagnetic interference (EMI). Here, we’ll discuss how EMI test receivers may help improve RFID systems’ efficiency and reach.

These receivers help ensure effective and dependable RFID operations in a variety of settings by completing thorough electromagnetic interference (EMI) testing, which identifies and mitigates possible interference sources.

EMI test receivers play a crucial role in improving the overall performance and reliability of RFID systems across a wide range of applications, from inventory management to supply chain logistics.

The Importance of EMI Testing in RFID Systems
Improving the speed and range of RFID systems necessitates EMI testing. EMI testing is essential for RFID applications, and here’s why:

System Reliability: It is essential for RFID systems to be able to perform consistently in order to provide data that is both quick and accurate. If radio frequency identification (RFID) readers and tags are subjected to electromagnetic interference (EMI), the data they contain may be corrupted or otherwise rendered unintelligible. Testing for electromagnetic interference (EMI) is something that has to be done if one wants to ensure that the data transmission produced by an RFID system is reliable and free of mistakes. Applications that are mission-critical and rely on this degree of reliability include, but are not limited to, inventory management, asset monitoring, and access control, to name a few.

Operational Range: The effectiveness of the data transmission between readers and tags is what determines how far RFID systems can communicate with one another. EMI has the potential to drastically reduce the range since it may reduce the strength of RF signals or generate interference that degrades the quality of the signals. We are able to determine the impact that interference has on the useable operating range by doing EMI testing, and if necessary, we may take remedial measures to improve both the operational range and the overall performance of the system. When it comes to applications like supply chain management and others that need wide coverage, optimizing the operational range is of the utmost importance.

Regulatory Compliance: RFID systems are permitted to emit a certain amount of radiation as well as electromagnetic interference (EMI), which is governed by a set of rules and regulations. It is very necessary to comply to these standards in order to ensure that RFID systems and other wireless devices may coexist in shared frequency bands with a minimum amount of interference. With the assistance of EMI testing and the use of specialized test receivers, manufacturers of RFID systems are able to analyze their goods’ conformity to regulatory standards and make any necessary adjustments to the design of their products. Conformance ensures that RFID systems will perform their intended functions without interfering with the operation of other wireless networks.

Interference Identification and Mitigation: With the assistance of electromagnetic interference (EMI) testing employing test receivers, potential interference sources in the environment of an RFID system may be located and reduced. Interference may originate from a wide variety of sources, including adjacent wireless devices and electrical equipment, power lines, and even other people. The use of shielding, filtering, or frequency planning may be used once possible interference sources have been identified via EMI testing. This helps to limit interference and improves the performance of the RFID system.

EMI Test Receivers for RFID Systems
Assessing and improving the performance and range of RFID systems requires the use of EMI test receivers. Some fundamentals of their function are as follows:

EMI Emissions Testing: An EMI test receiver allows for the measurement and analysis of the electromagnetic emissions produced by RFID readers. These emissions may be monitored. Emissions testing helps to ensure that RFID systems do not interact with other wireless technologies and that they are in compliance with the regulatory constraints imposed on emission levels. Test receivers are useful tools for system designers because they provide information about the emissions, including identification and quantification of such emissions. This information may be very beneficial. This ensures that the RFID system continues to function normally and does not cause any disruptions to the environment that it is located in.

Immunity Testing: Immunity testing using EMI test receivers may be used to detect whether or not RFID readers and tags are susceptible to electromagnetic disturbances from the outside world. The degree to which the system can maintain its usual operating state while being subjected to disruption is shown below. Test receivers enable an evaluation of the RFID system’s immunity by subjecting it to controlled electromagnetic interference (EMI) waves. The results of immunity testing may be used by system designers to increase the system’s resistance to electromagnetic interference (EMI) by implementing appropriate shielding, filtering, or grounding methods. This ensures effective functioning even when subjected to challenging electromagnetic circumstances.

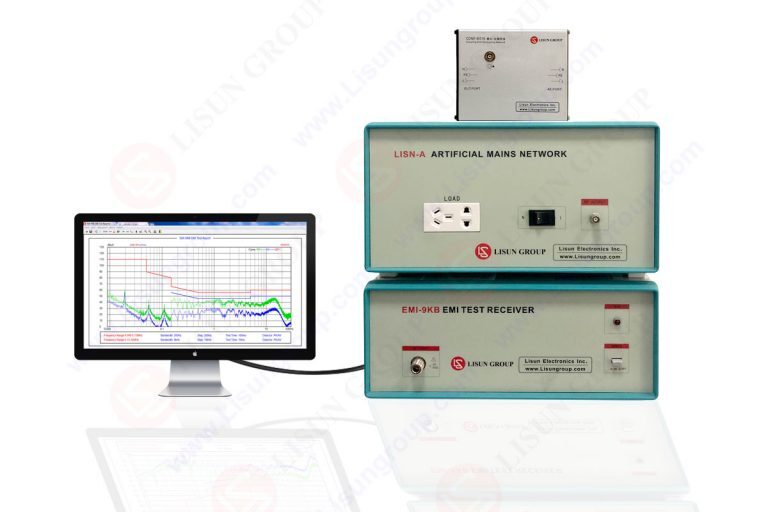

Figure: EMI tester

Interference Analysis: An EMI test receiver may help pinpoint the sources of interference that degrade RFID system functionality. They provide the ability to monitor and analyze the spectrum in real time, allowing for the detection and characterization of interference signals. Test receivers assist analyze the frequency, amplitude, and length of these signals to learn how they affect the functioning of RFID systems. System designers and operators may use this data to better apply techniques to reduce interference, such as frequency planning or modifying transmission power levels. RFID systems’ functionality and range may be improved with proper interference management.

Range Optimization: Utilizing EMI test receivers is one way to increase the effective working range of RFID systems to their fullest potential. Doing range testing under a variety of operating settings, including those with potential sources of interference, enables system designers to evaluate the performance of the system at a variety of distances using test receivers, which allows for an accurate assessment of the system’s capabilities. This data is important for identifying the appropriate power levels, antenna configurations, and modulation approaches in order to attain the needed range while maintaining reliable communication. The performance of test receivers may provide information on how to increase range performance in environments with high levels of electromagnetic noise and interference, and the effects of interference that restrict range can be studied using these devices.

Troubleshooting and Root Cause Analysis: In the event that there is a problem with the functioning of the RFID system or an operational irregularity, EMI test receivers play a significant role in the troubleshooting and root cause investigation processes. They are helpful for isolating the specific frequencies or forms of interference that may be preventing a system from functioning properly. By using test receivers to locate the origin of the interference, it is possible to put into action more targeted solutions, such as moving antennas, adjusting reader settings, or installing shielding. You can get the best EMI test receivers from LISUN.

Conclusion
If you want to get the most out of your RFID system in terms of its reach and productivity, investing in some EMI test receivers is an essential must. These receivers make it easy for system designers and operators to identify and get rid of potential interference sources using methods such as emissions testing, immunity testing, interference analysis, range optimization, and troubleshooting. This ensures that RFID operations are both effective and reliable.

The correct assessment of emissions, susceptibility, and interference sources, followed by the implementation of appropriate mitigation strategies, may lead to improvements in the overall performance, operating range, and reliability of RFID systems. These enhancements can be obtained in RFID systems.

To fulfill the specific electromagnetic requirements of RFID systems, EMI test receivers will play an increasingly significant role as RFID technology continues to advance and is used in a wider variety of industries.

With the assistance of EMI test receivers, which provide extensive testing capabilities to RFID system makers and operators, the advantages of RFID technology in domains such as inventory management, supply chain logistics, asset monitoring, and access control may be maximized. This is made possible by the fact that RFID system manufacturers and operators have access to these test receivers.
