Equipment characteristics of IPX9 high temperature pressure jet waterproof test chamber

IPX9 high temperature pressure jet waterproof test chamber is mainly used to check whether the waterproof performance of the shell of electronic and electrical products, lamps, electrical components, automobiles, motorcycles and their parts meets the standard requirements. Under the environmental conditions simulating the high temperature and high pressure steam cleaning process, the sample surface was subjected to the flushing test to test the physical and other related properties of the product. After the test, judge whether the product performance meets the requirements through verification, so as to facilitate the design, improvement, verification and delivery inspection of the product.

IPX9 high temperature pressure jet waterproof test chamber meets GBT4208-2017.IEC60529:2013.ISO20653-2013.GB700.1-2015 and other standards respectively, and is applicable to the waterproof grade test of IPX9 products.

IPX9 high temperature pressure jet waterproof test chamber sprays water in the form of a fan, which can meet the spraying effect at all angles. During the test, the sample can be completely washed by water by rotating the turntable. This testing process is usually more rigorous than the actual use environment of the product.

Equipment characteristics of IPX9 high temperature pressure jet waterproof test chamber:
1. The main material of IPX9 waterproof test chamber is 304 stainless steel, the inner chamber is seamless welded, and the outer wall is made of thermal insulation cotton to enhance the thermal insulation performance, which makes the whole test environment more consistent with the actual scene.
2. Core parts: IPX9 fan-shaped nozzle is made of stainless steel, with an accuracy error of 2mm (can be measured with micrometer).
3. The high-temperature system is heated by the heating pipe, and the high-pressure and high-temperature water pressure is pumped and ejected by the high-temperature resistant water pump (imported high-temperature resistant water pump, with a long service life).
4. Built in water storage tank, continuous circulating water spray test.
5. The test time can be set on the touch screen, and the standard time is 30s for each angle (user can customize the setting separately).
6. After the test is completed, there is an alarm function to remind the operator that the test is complete.

Why is IPX9 high temperature pressure jet waterproof test chamber applicable to automobile manufacturing industry?
IPX9 high temperature pressure jet waterproof test chamber simulates high-temperature and high-pressure climate environment. When the car encounters a storm on the road, the engine is heated, and the sudden impact of rain will lead to alternating cold and hot. If the car is not tested in the rain, it will cause the car to stall or malfunction, otherwise it can continue to run normally on the road. Therefore, the automobile manufacturing industry needs to purchase IPX9 waterproof rain tester for rain test.
Do you know how much the test report of IPX9high temperature pressure jet waterproof test chamber is:
1. Number of cycles setting: set the number of cycles (one is required by the standard);
2. Spraying time setting: set the spraying time of a single sprinkler. (standard 30 seconds);
3. Interval time setting: set the time to stop spraying water in the middle of nozzle switching. (standard 10 seconds);
4. Water temperature setting: set the test water temperature. (standard 80 ℃);
5. Rotary table speed setting: set the rotary table speed. (standard 5r/min).
6. Sample power-off time setting: the time when the tested sample is powered on during the test, in minutes;
7. Sample power-off time setting: the time when the tested sample is in power-off state during the test, unit: min.

LISUN lauched JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9，GB7000.1，ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.

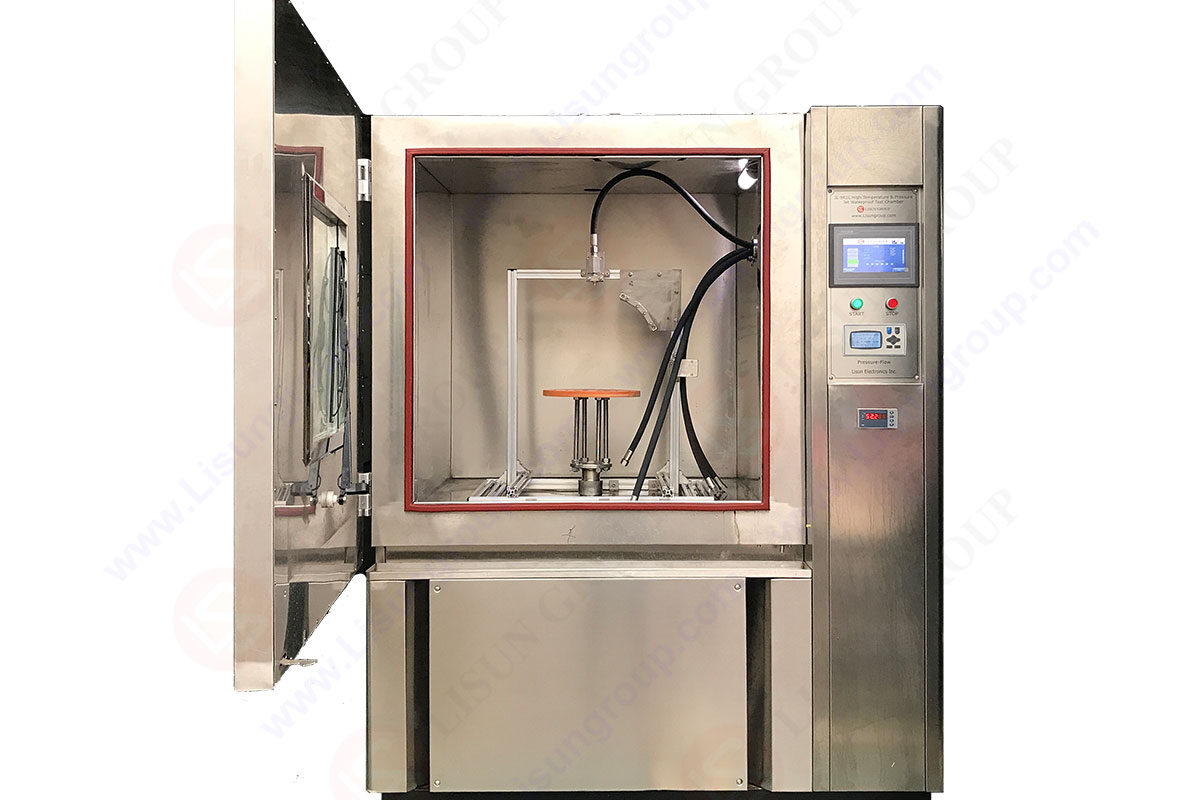

JL-9K1L High Temperature Pressure Jet Waterproof Test Chamber
