ESD Gun Safety: Best Practices for Handling and Operating ESD Guns

Introduction:
In electrostatic discharge (ESD) testing, electrostatic discharge (ESD) guns are used to determine how vulnerable electronic components and systems are to ESD. Protecting both people and machinery from the risks posed by ESD guns is of the utmost importance during ESD testing. Safe testing procedures, including the use of electrostatic discharge (ESD) guns, are discussed.

Familiarize Yourself with ESD Gun Specifications:
Before you use the ESD gun, you should make sure you are familiar with its capabilities, restrictions, and specifications by reading the documentation provided by the manufacturer.

Gain an understanding of the operating voltages and discharge patterns that are safe and those that are not. You should feel comfortable doing ESD testing now that you have this knowledge in hand.

Follow Proper ESD Safety Precautions:
ESD safety precautions need to be followed in order to prevent the risk of damage caused by electrostatic discharge. Important components of ESD safety that you need to be aware of and adhere to include the correct grounding of equipment, the use of personal grounding devices (such as wrist straps and ESD smocks), and the installation of ESD protected areas (EPAs) where ESD testing is done.

You should do your best to familiarize yourself with all of these aspects and stick to them. By taking these precautions to prevent the buildup and release of static electricity, sensitive electronic equipment has a better chance of being protected from damage that may otherwise occur.

Wear Personal Protective Equipment (PPE):
When working with an ESD handgun, it is strongly advised that the appropriate personal protective equipment (PPE), such as rubber gloves and eye protection, be used. It is of the utmost importance that your eyes be protected from any flying particles or sparks that may be present in the air; thus, you should consider using safety goggles or glasses.

Always wearing gloves will help you prevent skin contact with electrodes and other conductive surfaces, which will keep you safe from the risk of electrical shock as well as other injuries.

Adhere to Voltage and Current Limits:
When using the ESD gun, make sure you stay within the voltage and current ranges that the manufacturer recommends. If these limits are exceeded, it is possible that electrical equipment may be damaged, the risk of receiving an electric shock will increase, and flames may start in materials that are not normally flammable.

To ensure that the testing environment is completely risk-free, you must always exercise the utmost caution and remain consistent with the criteria that have been specified.

Verify Proper Grounding Connections:
Grounding must be done correctly in order to avoid danger while conducting ESD testing. Ensure that the ESD cannon, along with anything else that could come into touch with it, is properly grounded. By using the appropriate grounding cables, connectors, and grounding points, you may create a secure electrical path for the discharge current to go through.

Check the grounding connections on a consistent basis to ensure that they will always provide a secure connection.

Minimize Electrostatic Discharge Risks:
During ESD testing, it is essential to take precautions to minimize the likelihood of unintended electrostatic discharges occurring. Ionizers or other antistatic chemicals may be used in this process in order to eliminate any and all static charges that may be present on the test surfaces, components, or human subjects.

Another possibility to take into consideration is protecting sensitive equipment or persons from inadvertent ESD occurrences by insulating or isolating them.

Implement Safe ESD Test Procedures:
Developing and adhering to protocols for electrostatic discharge (ESD) testing in a protected setting is something that has to be done. These procedures should contain all of the following steps: setting up the test, positioning the ESD gun, handling the samples, and recording the results.

It is necessary to establish standardized techniques that promote consistency and minimize the possibility of mistakes in order to protect everyone’s safety who is participating in the testing process. This will help reduce the likelihood of errors occurring.

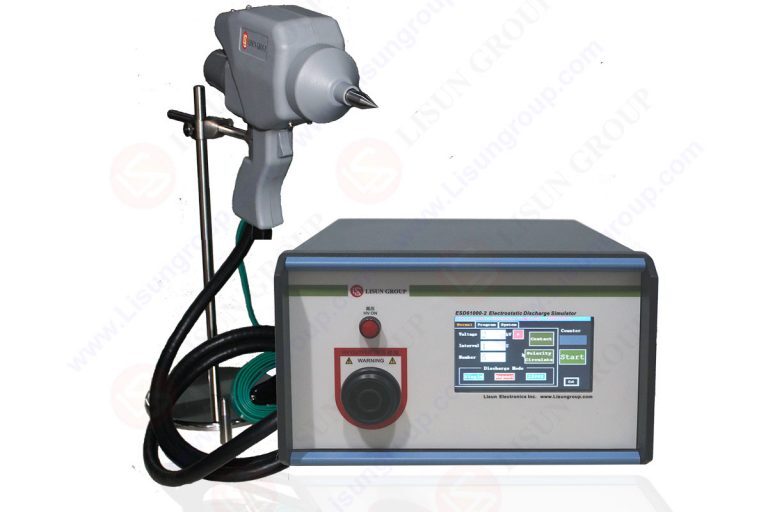

Figure: ESD simulator gun

Conduct Training and Awareness Programs:
The personnel responsible for ESD testing should participate in ESD safety training and awareness programs on a regular basis. Provide in-depth teaching on the electrostatic discharge (ESD) fundamentals, including how to use ESD weapons in the correct manner and what to do in the case of an emergency.

Create an environment where safety is prioritized and provide every member of the team with the tools they need to maintain the testing area as risk-free as possible. You can consult LISUN for best quality ESD gun.

Perform Regular Maintenance and Inspection:
It is necessary to do routine maintenance and inspections on ESD guns to ensure that they continue to work safely and effectively. Keep the ESD gun maintained in accordance with the prescribed maintenance schedule provided by the manufacturer. This may involve doing frequent inspections to look for signs of wear and tear such as fraying, damage, or other deterioration.

Check sure the electrodes, wires, and connectors are all in working order before beginning the procedure. In order to keep the safety and reliability of the ESD gun intact, any damaged components should be repaired or replaced as soon as they are discovered.

Maintain Proper Storage and Transport:
When the ESD gun is not being used, it should be stored in a location that is both secure and predefined to reduce the risk of it being stolen or accidentally discharged.

It is essential to store the ESD pistol in a location that is free from moisture and has a consistent temperature since it cannot withstand fluctuations in either factor. Be very cautious not to knock anything over or drop anything when you are moving it; doing so might result in damage.

Follow Emergency Procedures:
Have a strategy ready and document it in case there is an unexpected emergency during the ESD testing. Members of the staff should be trained to react correctly in the event of a fire, electrical shock, or any other kind of emergency.

The testing area must have fire extinguishers and first aid kits readily available at all times. The emergency procedures need to be evaluated and brought up to date if there is any kind of change in either the testing environment or the apparatus.

Stay Informed about Safety Standards and Regulations:
Maintain familiarity with current ESD safety legislation and standards. Learn the ins and outs of relevant industry standards like IEC 61340-5-1 and ANSI/ESD S20.20 as well as local legislation. These guidelines stipulate what must be done to provide a risk-free testing setting. Make sure your ESD testing processes include all necessary safety precautions.

Conclusion:
For electrostatic discharge (ESD) testing, it is essential to always handle and use the ESD guns in a safe way. Best practices, such as being familiar with the specifications of the ESD gun, adopting all of the essential ESD safety precautions, employing appropriate personal protective equipment, and inspecting grounding connections, may significantly reduce the chance of accidents and protect people as well as machines.

Utilizing safe ESD testing techniques, participating in periodic training programs, maintaining and inspecting testing equipment, and maintaining a knowledge of safety regulations are all ways to achieve a secure testing environment. It is crucial to perform electrostatic discharge (ESD) testing in a safe way, which not only protects humans but also retains the integrity and reliability of test results. This is necessary in order to adequately assess the ESD immunity of electronic components.
