Vertical Flammability Test: Evaluating the Flame Resistance of Electrical Equipment and Materials

Flammability testing plays a crucial role in ensuring the safety and compliance of electrical and electronic products. The vertical flammability test is a key method for assessing the fire resistance of various materials, particularly in electrical equipment, household appliances, and plastic components. This test is widely used to classify materials based on their flame-retardant properties, helping manufacturers ensure their products meet regulatory standards. This paper focuses on the applications of horizontal and vertical flammability tests, particularly the evaluation of HB&V level (50W) and 5V level (500W) materials, using the LISUN HVR-LS Horizontal Vertical Flame Tester.

Overview of Flammability Testing
Flammability testing involves subjecting materials to controlled flame conditions and observing their behavior, such as ignition time, burning rate, and self-extinguishing ability. The results of these tests provide essential data to classify materials into flammability ratings, which indicate their suitability for various applications. For example, materials used in electrical enclosures, appliances, and insulation must meet stringent fire safety standards to prevent hazardous fires.
The horizontal and vertical flammability tests are two common testing methods used to evaluate the flame resistance of materials. These tests provide insights into how materials behave when exposed to flame, either horizontally or vertically, and form the basis for flammability classifications such as HB, V, and 5V ratings.

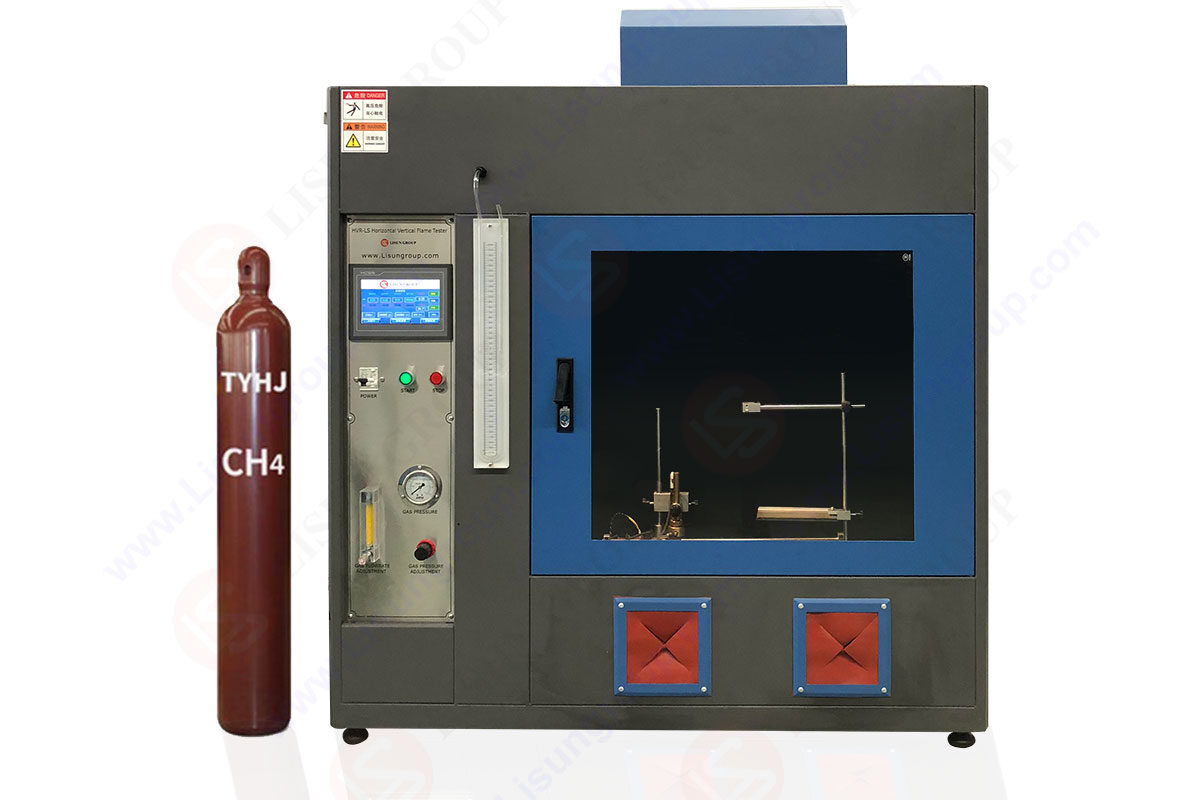

Components and Structure of the LISUN HVR-LS Horizontal Vertical Flame Tester
The LISUN HVR-LS Horizontal Vertical Flame Tester is a versatile tool designed to evaluate the flame resistance of various materials. It consists of the following key components:
1. Burner Unit: Generates a controlled flame with adjustable intensity to simulate fire conditions in the test environment.
2. Testing Chamber: A closed compartment where samples are exposed to flame in both horizontal and vertical orientations.
3. Measurement Devices: These devices record temperature, flame height, and burn duration, providing accurate data for evaluating material performance.
The HVR-LS tester can be configured for either horizontal or vertical testing, making it suitable for a wide range of materials, from plastics to insulation components.

Horizontal and Vertical Flammability Test Methods
Horizontal Flammability Test (HB Level)
The horizontal flammability test evaluates the burn rate of a horizontally oriented material. In this test, the flame is applied to one end of the sample, and the material’s ability to resist further burning is assessed. The HB classification is assigned to materials with a slow burning rate or those that self-extinguish after ignition.
This method is commonly used for evaluating the flame resistance of materials in non-critical applications, where fire resistance is still necessary but not as stringent as in high-risk environments

Material	Burn Rate (mm/min)	Flame Height (mm)	Application
Engineering Plastics	≤40	≤125	Electrical insulation
General Plastics	≤75	≤150	Enclosures, housings

Vertical Flammability Test (V and 5V Levels)
The vertical flammability test evaluates a material’s ability to self-extinguish when exposed to flame in a vertical orientation. There are two main classifications:
1. V-level (50W) Classification: In this test, a 50W flame is applied to the bottom of the sample for 10 seconds, and the time it takes for the flame to extinguish is measured. Materials classified as V-0, V-1, or V-2 must meet specific self-extinguishing criteria. V-0 is the highest rating, indicating that the material stops burning within 10 seconds and does not drip flaming particles.
2. 5V-level (500W) Classification: This test is more stringent and applies a 500W flame to the material for 5 seconds. To pass the 5V test, materials must not burn for more than 60 seconds after the flame is removed, and they should not produce flaming droplets.

Classification	After-flame Time (s)	Dripping	Application
V-0	≤10	No dripping	Electrical enclosures, appliances
V-1	≤30	No dripping	Household appliances
V-2	≤30	Flaming droplets	Low-risk electrical components
5V	≤60	No dripping	High-risk electrical environments

Application of HB, V, and 5V Materials
Lighting Equipment
In lighting systems, particularly in enclosures, reflectors, and insulation components, materials must resist ignition and prevent flame propagation. The LISUN HVR-LS tester can help manufacturers ensure that materials used in LED fixtures, fluorescent lamps, and other lighting components meet the required HB or V-level standards.

Low-Voltage Electrical Devices
Low-voltage electrical devices, such as power outlets, switches, and connectors, require materials with strong fire-resistant properties to prevent accidents caused by electrical faults. These components are typically tested at the V-0 or 5V level to ensure they can self-extinguish and do not produce hazardous flaming debris.

Household Appliances
For household appliances like refrigerators, washing machines, and microwaves, flame resistance is a key safety feature. The materials used in their housings and internal components must pass vertical flammability tests to meet regulatory standards. V-0 and V-1 rated materials are often preferred for critical parts, ensuring that any flames generated by electrical faults are contained.

Electrical Motors and Tools
Electrical motors and power tools, particularly those used in demanding environments, must be constructed from materials with high fire resistance. The vertical flammability test is essential for ensuring that motor housings and insulating components prevent flame propagation in the event of an internal fault. The LISUN HVR-LS flame tester can simulate these conditions, providing valuable data for manufacturers.

Insulation Materials and Engineering Plastics
Insulation materials used in electrical products must meet strict fire safety standards. Whether used in motor windings, electronic circuits, or wiring systems, these materials must be tested for both horizontal and vertical flame resistance. Engineering plastics that meet HB, V, or 5V standards are essential in ensuring the long-term safety and reliability of electrical systems.

Testing Procedures and Standards
The LISUN HVR-LS Horizontal Vertical Flame Tester is designed to meet several international standards, including:
• UL 94: This standard specifies the requirements for classifying materials based on their flammability, including the HB, V, and 5V classifications. The LISUN tester is fully compliant with this standard, making it suitable for use in global markets.
• IEC 60695-11-10: This international standard defines the testing methods for horizontal and vertical flammability tests and sets the criteria for classifying materials.
• ISO 9772 and ISO 9773: These standards focus on testing materials for their flame resistance in horizontal and vertical orientations, respectively.

Conclusion
The vertical flammability test is an essential method for evaluating the fire resistance of materials used in electrical and electronic products. The LISUN HVR-LS Horizontal Vertical Flame Tester provides manufacturers with a versatile and accurate platform for testing materials to meet international fire safety standards. By evaluating materials at HB, V, and 5V levels, manufacturers can ensure their products are safe, reliable, and compliant with regulatory requirements.
Table 2: Summary of Flammability Ratings

Rating	Test Type	Flame Power	Max Flame Time	Dripping Allowed	Typical Applications
HB	Horizontal	50W	≤60s	Yes	General plastic enclosures
V-0	Vertical	50W	≤10s	No	Electrical housings, appliances
V-1	Vertical	50W	≤30s	No	Insulating materials, housings
V-2	Vertical	50W	≤30s	Yes	Low-risk components
5V	Vertical	500W	≤60s	No	High-risk electrical components

The data and procedures highlighted above demonstrate the importance of proper flammability testing and classification. Ensuring compliance with flammability standards using the LISUN HVR-LS system helps manufacturers produce safer, more reliable products across industries.
