Exploring Single Angle Technology in Gloss Meters: A Detailed Study of the LISUN AGM-500PRO

Abstract

Gloss meters are essential instruments for quantifying the glossiness of surfaces across various industries, including automotive, paint, plastic, and ceramics. Single angle technology, particularly at a 60° measurement angle, is widely adopted for its effectiveness in assessing semi-gloss surfaces. This paper provides an in-depth analysis of single angle technology in gloss meters, with a focus on the LISUN AGM-500PRO model. We discuss the principles of gloss measurement, the significance of the 60° angle, and the specific features and applications of the AGM-500PRO.

1. Introduction

Gloss is a critical parameter that defines the visual appearance and quality of a product’s surface. Accurate measurement of gloss is vital for quality control and ensuring product consistency. Gloss meters, devices designed to measure the specular reflection of light from a surface, are commonly used for this purpose. Single angle technology refers to gloss meters that measure gloss at a specific angle, with 60° being the standard for general-purpose applications.

2. Principles of Gloss Measurement

Gloss measurement is based on the amount of light reflected from a surface at a specific angle. The measurement angle is chosen based on the expected gloss level of the surface:

• 20°: Used for high-gloss surfaces.

• 60°: Standard angle for semi-gloss surfaces.

• 85°: Used for low-gloss surfaces.

The 60° angle is particularly significant as it serves as the universal measurement angle for a wide range of applications, providing a balance between sensitivity and applicability.

3. Single Angle Technology

Single angle gloss meters are designed to measure gloss at one fixed angle, such as 60°. This technology simplifies the measurement process and is cost-effective for routine quality control where the gloss level falls within a specific range. The simplicity of single angle technology ensures ease of use and consistent results.

4. Overview of the LISUN AGM-500PRO Gloss Meter

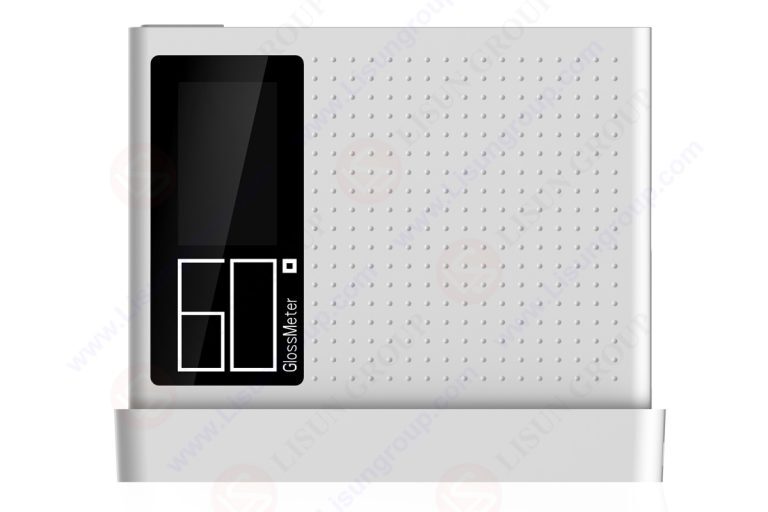

The LISUN AGM-500PRO is a compact and lightweight gloss meter utilizing single angle technology at 60°. Weighing only 80 grams and comparable in size to a name card, it is highly portable and convenient for on-site measurements.

Key Features:

• Automatic Calibration: The device features auto-calibration, eliminating the need for manual calibration and allowing immediate measurement upon powering on.

• Measurement Speed: Capable of completing a single measurement in less than 1 second, enhancing efficiency in quality control processes.

• Battery Life: Supports up to 10,000 continuous measurements after a full recharge, ensuring long-term usability without frequent charging.

• Calibration Base: Equipped with an anti-pollution calibration base, enabling calibration at any time to maintain long-term accuracy.

Technical Specifications:

Parameter	Specification
Measurement Angle	60°
Measurement Range	0-1000 Gloss Units (GU)
Resolution	0.1 GU
Calibration	Automatic
Measurement Time	<1 second
Weight	80 grams
Dimensions	Comparable to a name card

5. Applications of the AGM-500PRO

The AGM-500PRO is suitable for measuring the surface gloss of various materials, including:

• Paints and Coatings: Ensuring uniform gloss levels in automotive and industrial applications.

• Plastics: Assessing the quality and finish of plastic products.

• Metals: Evaluating the surface treatment and finish of metal components.

• Ceramics: Measuring the glossiness of ceramic tiles and sanitary ware.

• Building Materials: Checking the gloss levels of materials like marble and granite.

6. Advantages of Single Angle Technology in Gloss Measurement

• Simplicity: Single angle gloss meters are straightforward to operate, making them ideal for routine quality control tasks.

• Cost-Effectiveness: They are generally more affordable than multi-angle gloss meters, providing a budget-friendly solution without compromising accuracy.

• Consistency: Measuring gloss at a single, standard angle ensures consistent and comparable results across different measurements and surfaces.

7. Conclusion

Single angle technology, exemplified by the 60° measurement angle, plays a crucial role in gloss measurement across various industries. The LISUN AGM-500PRO gloss meter leverages this technology to provide a compact, efficient, and accurate solution for assessing surface gloss. Its features, including automatic calibration, rapid measurement, and portability, make it a valuable tool for quality control applications.
