How to Choose the Right Digital Oscilloscope for Your Needs

Introduction
Digital oscilloscopes are seen as very reliable pieces of equipment by electrical engineers, scientists, and other individuals who have a strong interest in electronics. This is due to the fact that digital oscilloscopes are capable of accurately monitoring and analyzing electrical signals.

It is possible that it will be difficult for you to pick the digital oscilloscope that is most suitable for your requirements given the wide variety of digital oscilloscopes that are now on the market. This article’s objective is to serve as a guide for you while you search for the digital oscilloscope that is most suited to satisfy the requirements of your company.

You will be able to make an educated choice on a solution that fits your requirements when you have a strong grasp of major elements like bandwidth, sample rate, channels, and other characteristics. This will allow you to choose a solution that best meets your needs.

Understanding Your Requirements
It is vital to first determine the requirements of your company before going into the nuances of the technology that lies behind digital oscilloscopes. This step should be taken before any other. Think about the activities you’ll be doing with the oscilloscope, the types of signals you’ll be measuring, and the objectives you want to accomplish with its assistance.

Do you concentrate on high-frequency applications, or are you more of a tinkerer who likes to experiment with a variety of technologies? Do you only need the ability to see a waveform, or do you also need more advanced analysis tools? If you have a crystal clear grasp of exactly what it is that you need, you will be able to make a choice that is more informed.

Bandwidth and Sampling Rate
The effectiveness with which a digital oscilloscope executes its role is significantly influenced by the instrument’s sampling rate as well as its bandwidth. It is referred to as the bandwidth, and it is measured in megahertz (MHz). The bandwidth refers to the frequency range that an oscilloscope is able to give correct readings for.

A wider bandwidth has the potential to give a more realistic depiction of signals that are in a state of continual change. Make that the frequency range of the oscilloscope is more than the signal range that you need by performing the necessary checks.

The sampling rate of an oscilloscope, which may be expressed in samples per second (S/s) or giga samples per second (GS/s), is what defines the number of points that the instrument is capable of recording in a certain amount of time. The sampling rate can be measured in any of these units.

A larger sampling rate makes it feasible to reconstruct waveforms with more accuracy. This is especially true when the higher sampling rate is applied to high-frequency inputs. Before deciding on a sample rate that is high enough to capture the information you want, it is important to take into consideration the frequency components of the signal you wish to sample.

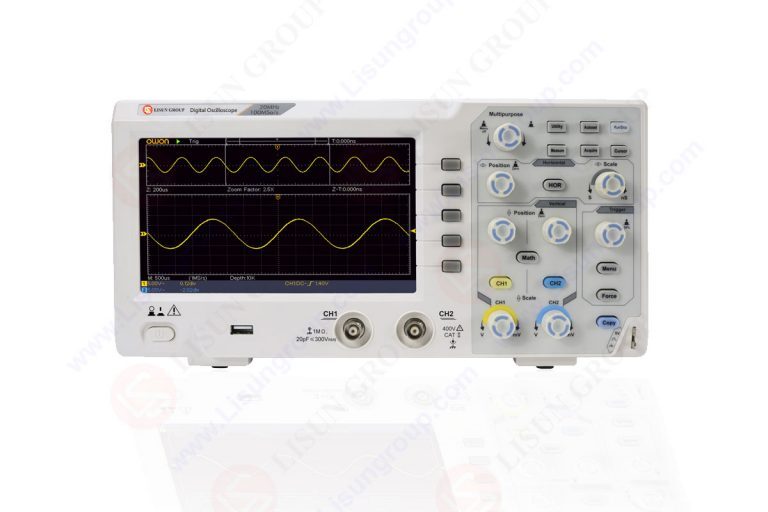

Figure: Digital oscilloscope

Channels and Channel Isolation
The level of difficulty involved in carrying out your measurements will be the key determinant in terms of the quantity of channels that will be necessary. Single-channel, dual-channel, and even four-channel alternatives are available for digital oscilloscopes.

Oscilloscopes are available in a wide variety of channel counts, with single-channel models being best suited for straightforward tasks, dual-channel models having the ability to measure and compare several signals at once, and four-channel models providing the capability to measure and compare all of the signals at once.

If you often deal with multi-channel systems or have the need to record linked signals, you should seek an oscilloscope that has a suitable number of channels. This will allow you to record connected signals.

 The risk of measurements on one channel being altered by signals on another channel is removed as a result of this feature. If you want to be able to rely on the results that your oscilloscope gives you, it has to have channel isolation qualities that are sufficient.

Additional Features and Connectivity
Digital oscilloscopes often come with a wealth of helpful features, in addition to the standard measurement capabilities that are included. Listed below are some of the features that are shared:

Triggering options: As a result of the availability of advanced triggering options, complex waveforms may be readily studied and debugged in a short amount of time.

Memory depth: If you have more memory, you can record data for a longer period of time and investigate signals in more detail. The requirements of the software should direct how much RAM is allocated; this decision must be made.

Display and user interface: The understanding of waveform data is made much easier by using a display of high-quality that also has an interface that is simple to traverse. You should look for an oscilloscope that has a user interface that is straightforward and a screen size that is suitable for you.

Probes and accessories: Consider the probes and accessories that are compatible with the oscilloscope that you want to use, as well as the ease with which you may get them. The usage of probes is required for accurate signal measurements, and it is beneficial to have a variety of probes available for use since many different kinds of measurements may benefit from their use.

Connectivity options: Check to see whether any of the following are supported, whether you need to send data or utilize a remote control and choose the one that best fits your needs: USB, Ethernet, and Wi-Fi connectivity are all available. The sharing of data is made easier, and it is now feasible to integrate with a variety of testing equipment and applications.

Budget and Long-Term Viability
When determining how much money you have available for a digital oscilloscope, it is important to take into consideration the trajectory of your company. Take into consideration the track record of the manufacturer, the quality of the items they provide, and whether or not they offer continuous support and software updates. It is essential that you make a purchase of a high-quality item that will serve you for a significant amount of time.

User Reviews and Recommendations
Reading user reviews and taking advice from reputable sources may make a significant difference in both the functionality and value provided by different kinds of oscilloscopes.

The best oscilloscope for your needs could be easier to pin down if you factor in the opinions and observations of others who have used oscilloscopes like the ones you’re considering. You should consider LISUN to buy oscilloscopes.

Conclusion
When choosing a digital oscilloscope, it is essential to give careful consideration to a variety of factors, including the budget, connection, bandwidth, and sampling rate, as well as any other features and channels that may be required.

If you take the time to learn about the many factors at play and evaluate the available models, you will be able to choose an oscilloscope that not only meets your requirements but also delivers the performance and features that are most important to you for the applications that you will be using it with. You should think about the product’s quality, reliability, and lifespan before making a purchase of a digital oscilloscope. This will help you determine whether or not the purchase was worthwhile.
