Ignitability Testing and the Application and Principle of Glow-wire Test Apparatus

Hot wire testing is a common method used to evaluate the flammability of materials. The Glow-wire Test Apparatus is the main tool used for this type of testing, and its structure and principle determine the accuracy and reliability of the test. This article will introduce the application of ignitability testing and the principle of Glow-wire Test Apparatus, in order to provide readers with a deeper understanding of this testing method.

I. Application of Ignitability Testing

Ignitability testing is widely used in various fields, especially in materials science and fire safety. Here are a few specific application scenarios:
1. Evaluation of building materials: Hot wire testing can be used to evaluate the combustion performance of building materials such as carpets, wall coatings, and thermal insulation materials. By testing parameters such as ignition temperature, burning rate, and flame propagation of materials, the safety of materials in fires can be assessed, providing reference for building design and fire safety.

2. Safety assessment of electronic products: Electronic products may pose a fire risk due to faults such as short circuits or overheating during normal use. Hot wire testing can be used to evaluate the fire resistance of the outer casing and various connecting wires of electronic products to ensure their safety 3. Automotive and aerospace industries: The automotive and aerospace industries have strict requirements for the fire resistance of materials. Through hot wire testing, the burning performance of materials used in car interiors and aircraft cabins can be evaluated to ensure the safety of passengers and vehicles.

3. Evaluation of textile and furniture materials: Textile and furniture materials often come into contact with sources of fire, making them prone to fire hazards. Hot wire testing can be used to evaluate the combustion performance of these materials, in order to select safer materials and provide a basis for the development of relevant standards.

II. Principle of Glow-wire Test Apparatus

Hot wire testing equipment mainly consists of an electric furnace, a thermocouple, a sample fixture, and a data acquisition system. The principle involves generating high temperatures in the laboratory environment using the electric furnace, heating the hot wire to a specific temperature, and placing the sample near the hot wire to observe its ignition and burning performance.

The specific principles are as follows

1. Electric furnace heating: The electric furnace in the Glow-wire Test Apparatus is responsible for providing the high-temperature environment. By controlling the current and voltage of the electric furnace, the hot wire in the furnace can be heated to the desired temperature. Typically, the temperature of the hot wire should be higher than the ignition temperature of the sample in order to observe its burning performance.
2. Thermocouple temperature measurement: To measure the temperature of the hot wire, a thermocouple is often placed near the hot wire. The thermocouple can convert temperature into voltage signals, which are then recorded by the data acquisition system.
3. Sample placement: The sample to be tested is placed near the hot wire. The sample can be made of different materials such as textiles, plastics, and wood to evaluate their combustion performance.
4. Observation and recording: Once the hot wire reaches the desired temperature, the ignition of the sample is observed. Data such as the ignition temperature, burning rate, and flame propagation are recorded.
Through these steps, the ignitability of the sample can be evaluated to understand its performance in fires.

III. Specific Glow-wire Test Apparatus Testing Methods

1. Sample preparation: Select suitable samples for testing according to the requirements of the test standards. Sample preparation includes measuring dimensions, cleaning, and surface treatment. For combustible materials, surface treatment such as removing dirt and applying flame-retardant coatings may be required.

2. Sample clamping: Clamp the sample to a fixture, ensuring that the sample contacts the hot wire according to the test requirements. When clamping the sample, care should be taken to avoid damaging the surface and ensure stability and safety of the clamping.
3. Heating the hot wire: Heat the hot wire to the specified temperature and maintain it for a certain period of time according to the test requirements. The heating temperature and time may vary depending on different test standards and requirements.
4. Observing the burning behavior: During the heating period, observe the burning behavior of the sample, including burning time, flame spread, and smoke production, to evaluate its ignitability under high temperature.
5. Recording data: Record the burning data of the sample according to the requirements of the test standards. This data includes the temperature of the hot wire, burning time, and burning characteristics. By recording and analyzing the data, the ignitability of the sample can be assessed and compared with the standard requirements.

Ignitability testing is an important method for evaluating the flammability of materials, and Glow-wire Test Apparatus is a commonly used tool for this testing. It uses an electric furnace to heat the hot wire, measures temperature using a thermocouple, and observes and records the ignition behavior of the sample to evaluate its fire resistance. Glow-wire Test Apparatustesting is widely used in fields such as building materials, electronic products, automotive and aerospace industries , textiles, and furniture materials, providing important references for design and safety in related industries. By gaining a deeper understanding of the application of ignitability testing and the principles of Glow-wire Test Apparatus, we can better understand and apply this testing method, improving the safety and fire resistance of materials.

The ZRS-3H Glow-wire Test Apparatus is according to IEC60695-2-1, IEC60695-2-10, IEC60695-2-11, IEC60695-2-12, IEC60695-2-13 (GB/T5169.10, GBT5169.11, GBT5169.12, GB/T5169.13) < Basic testing methods of Glow wire, basic testing methods of Glow wire device>, UL 746A, IEC829, DIN695 and VDE0471.

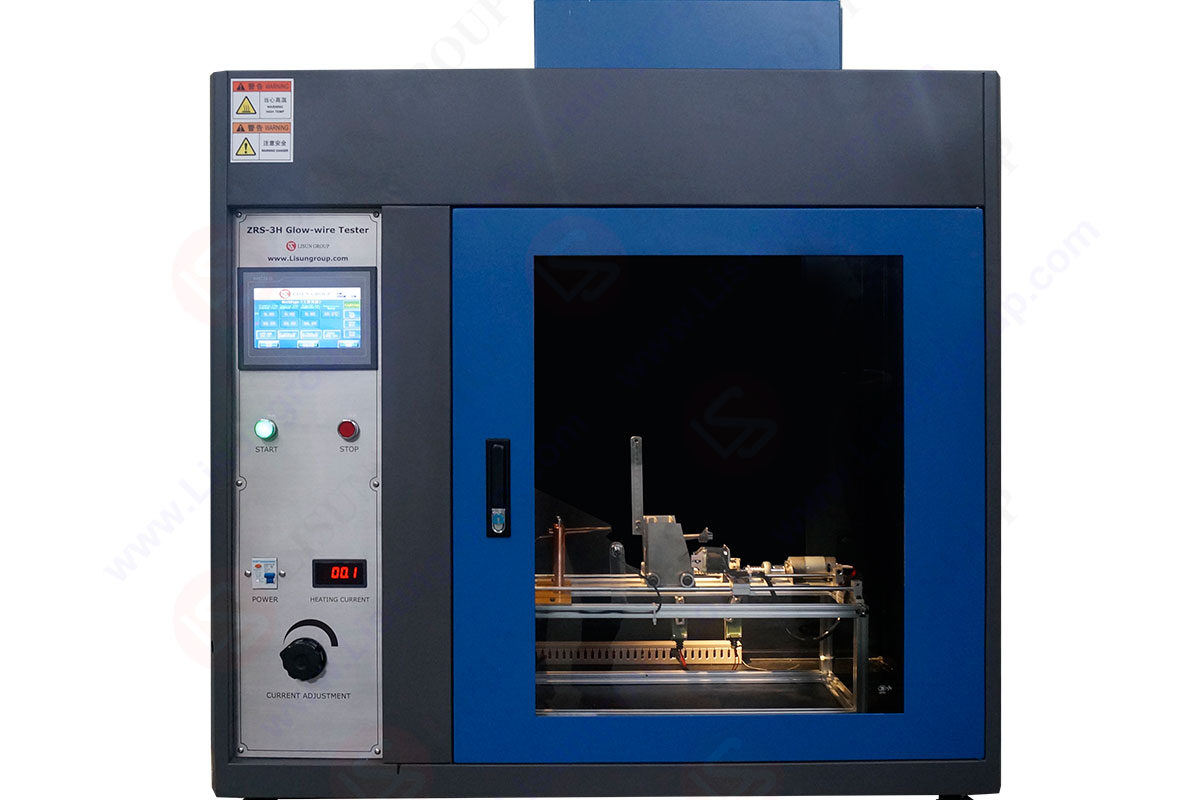

ZRS-3H Glow-wire Test Apparatus
