Impulse Magnetic Field Immunity Test: A Detailed Examination of the High-Reliability LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester

Introduction to Impulse Magnetic Field Immunity Testing
In the modern era of increasingly complex electronic systems, ensuring the immunity of devices to electromagnetic disturbances has become critical. One of the most challenging forms of electromagnetic interference (EMI) is the impulse magnetic field, which can cause severe malfunction in sensitive electronic equipment. To address this challenge, specialized testing instruments like the LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester have been developed to simulate these conditions and test the device’s immunity against such disturbances.

This article explores the characteristics and requirements of Impulse Magnetic Field Immunity Test (IMF) and provides an in-depth look at the LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester, specifically designed to meet the rigorous standards of such tests.

Understanding Impulse Magnetic Field Immunity Test (IMF)
The Impulse Magnetic Field Immunity Test is designed to simulate the effects of high-intensity, fast-rise magnetic fields that can occur in real-world environments, such as during lightning strikes, power switching events, or electrostatic discharge phenomena. These magnetic fields can induce voltage spikes in cables and circuit boards, leading to the failure or malfunction of electronic systems.

The test evaluates a device’s ability to withstand these magnetic impulses without degradation of performance or damage. Devices under test (DUT) are subjected to varying magnetic field strengths, pulse durations, and orientations to assess their robustness and performance stability.

Key Standards for Impulse Magnetic Field Immunity Test
The Impulse Magnetic Field Immunity Test is governed by international standards such as the IEC 61000-4-9, which defines the test method for evaluating electromagnetic immunity of electrical and electronic equipment to magnetic field disturbances. The standard specifies test conditions such as:

• Magnetic Field Strength: The magnetic field should be applied at levels that are consistent with realistic environmental threats, typically ranging from 1 A/m to 1000 A/m.
• Pulse Duration: The duration of the magnetic pulse is usually between 1 µs and 100 µs.
• Number of Pulses: The test often involves multiple pulse applications to simulate repeated magnetic disturbances.

These requirements ensure that the equipment being tested is prepared for real-world electromagnetic environments.

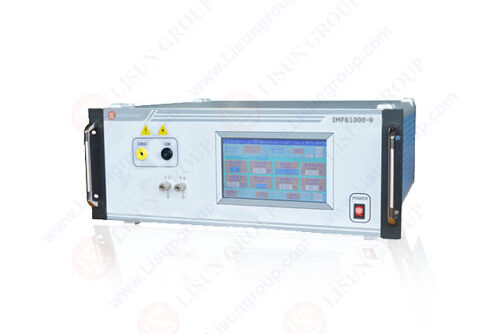

High-Reliability LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester
The LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester is designed specifically to meet the demanding requirements of impulse magnetic field immunity testing. Below, we will examine the features, specifications, and working principle of this high-reliability test equipment.

• Features of LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester
• Wide Magnetic Field Strength Range: The LISUN IMF61000-9 can generate magnetic fields with strength up to 1000 A/m, making it suitable for testing a wide range of devices.
• Precise Pulse Generation: The system can produce high-fidelity impulse magnetic pulses with adjustable durations from 1 µs to 100 µs, providing flexibility for various test scenarios.
• Automated Test Sequences: The tester is equipped with automated testing sequences that ensure consistent and repeatable results. Test parameters such as field strength, pulse duration, and number of pulses can be configured easily.
• Real-Time Monitoring: The tester includes real-time monitoring capabilities, allowing users to observe the DUT’s response during the test and immediately identify any failures or issues.
• Compliance with IEC Standards: The LISUN IMF61000-9 is fully compliant with the IEC 61000-4-9 standard, ensuring that the test results are valid and reliable for international certifications.

Specifications of the LISUN IMF61000-9

Specification	Value
Magnetic Field Strength	1 A/m to 1000 A/m
Pulse Duration	1 µs to 100 µs
Pulse Rise Time	≤ 5 µs
Pulse Repetition Rate	Adjustable (up to 10 pulses/s)
Number of Pulses per Test	Configurable
Test Duration	1s to 60s
Test Frequency	50 Hz / 60 Hz (user-selectable)
Test Channels	Single or multiple
Monitoring and Control	Real-time feedback via GUI
Compliance Standards	IEC 61000-4-9

Working Principle of LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester
The LISUN IMF61000-9 operates by generating a rapidly changing magnetic field around the device under test. The system utilizes a specialized coil that produces the impulse magnetic field when driven by a high-voltage pulse generator. The rise time and the pulse duration of the magnetic field are carefully controlled to simulate real-world disturbances as accurately as possible.

Key Elements in the Working Process:

• Magnetic Field Generation: The system’s pulse generator drives a coil to generate the magnetic field, with parameters adjustable based on the test requirements.
• Impulse Waveform: The generated magnetic field is an impulse waveform, meaning it has a sharp rise and fall characteristic. This ensures that the device under test is exposed to the kind of transient interference it might encounter in the field.
• Field Strength Control: The intensity of the magnetic field is adjustable and can be ramped up or down depending on the test conditions and device sensitivity.
• Monitoring DUT Response: Sensors are used to monitor the DUT’s performance during the test, ensuring that no degradation or failure occurs. Any abnormalities are immediately recorded for analysis.

Applications of Impulse Magnetic Field Immunity Test
The Impulse Magnetic Field Immunity Test is critical for ensuring that electronic equipment can operate reliably in environments subject to electromagnetic disturbances. This includes applications in various industries:

• Automotive: Ensuring automotive electronics remain functional in environments with high magnetic interference.
• Aerospace: Protecting avionics and communication systems from magnetic pulse disturbances during takeoff, flight, and landing.
• Medical Devices: Verifying that medical equipment, which often needs to function in a range of electromagnetic environments, maintains operation in the presence of magnetic pulses.
• Telecommunication: Ensuring that communication devices can handle sudden magnetic disturbances from powerlines, lightning, or other sources.

Conclusion
The Impulse Magnetic Field Immunity Test is a critical aspect of electromagnetic compatibility testing, particularly in ensuring the reliability and robustness of electronic devices in real-world environments. The LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester stands out as a high-reliability, versatile solution for performing these tests according to international standards. Its wide range of adjustable test parameters, automated sequences, and real-time monitoring capabilities make it an invaluable tool for manufacturers and researchers focused on ensuring the electromagnetic immunity of their products.

With the LISUN IMF61000-9, manufacturers can be confident that their devices will meet the stringent demands of the Impulse Magnetic Field Immunity Test and perform optimally in the face of electromagnetic disturbances, ensuring product quality and compliance with industry standards.

References
IEC 61000-4-9: Electromagnetic compatibility (EMC) – Part 4-9: Testing and measurement techniques – Impulse magnetic field immunity test.
LISUN Group. LISUN IMF61000-9 Impulse Magnetic Field Immunity Tester. Retrieved from: LISUN IMF61000-9 Product Page.
