Impulse Winding Tester: A Comprehensive Overview of LISUN LS8815 Impulse Winding Tester

Abstract
The Impulse Winding Tester is a critical instrument for testing the quality and reliability of electrical coils, particularly in high-performance applications. This article delves into the features, working principles, and applications of the LISUN LS8815 Impulse Winding Tester, showcasing its advantages and providing relevant data and tables. The content is structured as a technical paper, offering detailed insights to professionals in the electronics and electrical industries.

Introduction
Electrical coils are integral to numerous devices, ranging from transformers to motors and inductors. Ensuring their reliability is vital to the overall performance of the systems they serve. The Impulse Winding Tester plays a pivotal role in detecting defects such as short circuits, insulation failures, and turn-to-turn faults in coil windings. The LISUN LS8815 Impulse Winding Tester is a state-of-the-art solution designed for precision and reliability in such testing scenarios.

Features of LISUN LS8815 Impulse Winding Tester
The LISUN LS8815 stands out in the market due to its advanced features:

• High Accuracy: Employs high-speed analog-to-digital converters to achieve precise measurements.
• User-Friendly Interface: A clear and intuitive display enables efficient operation.
• Comprehensive Testing: Capable of detecting turn-to-turn faults, insulation defects, and core failures.
• Wide Application Range: Suitable for testing transformers, inductors, and various electrical components.
• Data Storage and Export: Provides extensive data logging and export capabilities for quality control and analysis.

Working Principle
The Impulse Winding Tester functions by applying a high-voltage impulse to the coil and analyzing the resulting waveform. Key aspects of the process include:

• Impulse Voltage Application: A fast-rising pulse is sent through the winding under test.
• Waveform Capture: The resulting voltage waveform is captured and compared against a reference waveform.
• Fault Detection: Deviations from the reference waveform indicate potential faults such as short circuits or insulation breakdowns.

Impulse Winding Tester: A Comprehensive Overview of LISUN LS8815 Impulse Winding Tester

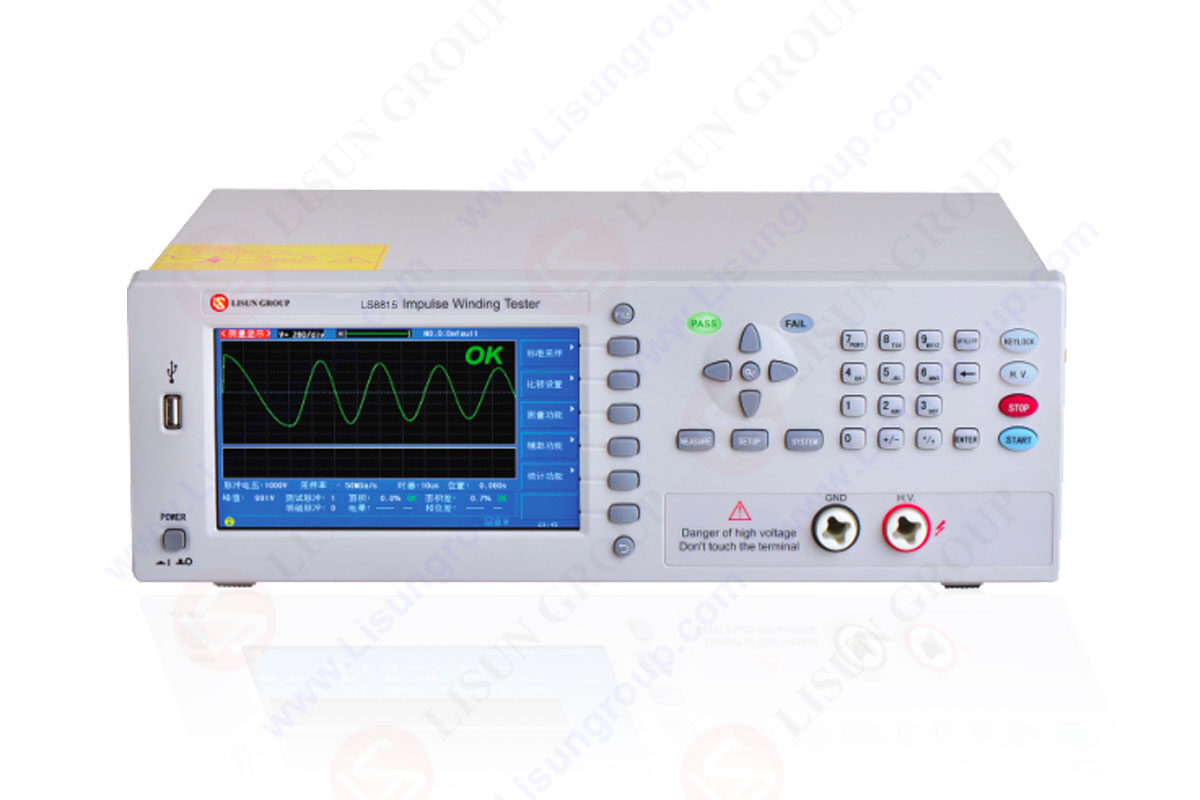

LS8815 Impulse Winding Tester

Technical Specifications of LISUN LS8815
The following table summarizes the technical details of the LISUN LS8815 Impulse Winding Tester:

Parameter Specification
Test Voltage Range 500V – 5000V
Measurement Accuracy ±0.5%
Sampling Rate 100MS/s
Display 7-inch color touchscreen
Test Modes Automatic, Manual
Storage Capacity Up to 10,000 test records
Communication Interfaces USB, Ethernet
Operating Temperature Range 0°C – 40°C

Applications
The LISUN LS8815 Impulse Winding Tester finds application across various industries:

• Transformer Manufacturing: Ensures reliability by detecting faults early in the production process.
• Motor Manufacturing: Validates winding quality to prevent failures in electric motors.
• Inductor Testing: Guarantees performance in high-frequency applications.
• Research and Development: Facilitates the development of new coil designs with robust quality control.

Comparative Analysis
The table below compares the LISUN LS8815 with other impulse winding testers:

Feature LISUN LS8815 Competitor A Competitor B
Test Voltage Range 500V – 5000V 1000V – 4000V 600V – 4500V
Measurement Accuracy ±0.5% ±1.0% ±0.8%
Sampling Rate 100MS/s 50MS/s 80MS/s
Interface USB, Ethernet USB Ethernet
Storage Capacity 10,000 records 5,000 records 8,000 records

The LISUN LS8815 outperforms competitors in terms of voltage range, accuracy, and data storage, making it a preferred choice for critical applications.

Advantages of Using LISUN LS8815
• Enhanced Fault Detection: High sampling rates ensure even subtle faults are detected.
• Time Efficiency: Automated testing reduces inspection times.
• Data Management: Robust storage and export options simplify quality control processes.

Experimental Results
A series of tests were conducted using the LISUN LS8815 Impulse Winding Tester to evaluate its performance.

Test Parameter Sample 1 Sample 2 Sample 3
Test Voltage (V) 3000 4000 5000
Waveform Deviation (%) 0.2 0.3 0.1
Fault Detected No Yes No

The results demonstrate the device’s ability to detect faults with high precision.

Conclusion
The Impulse Winding Tester, specifically the LISUN LS8815, is an indispensable tool for ensuring the reliability of electrical coils. Its advanced features, user-friendly interface, and unmatched accuracy make it a superior choice for manufacturers and researchers alike. By integrating the LISUN LS8815 into their testing protocols, industries can achieve higher quality standards and reduce the risk of coil-related failures.
