Introduction of IPX9K High Temperature Pressure Jet Waterproof Test Chamber

High temperature pressure jet waterproof test chamber is also called waterproof test equipment, rain testing machine, waterproof test chamber and so on. Suitable for exterior lighting and signalling devices and automotive luminaire enclosure protection, it provides realistic simulation of various environments such as water and spray tests that electronic products and their components may be subjected to during transportation and use. In order to achieve the detection of the waterproof performance of various products.

IPX9K high temperature pressure jet waterproof test chamber maintenance introduction:
1. If the test is not done for a long time, the water in the reserve tank needs to be drained; The water in the tank cannot be left for more than 3-7 days, and the replacement time is determined by the frequency of use and water quality.
2. The stainless steel filter in the rain test chamber needs to be disassembled and cleaned within 2 months, and the water tank is clean, and no other impurities can remain.
3. The rain test chamber needs to be turned on and started once within 1 month, please do not store it for a long time and do not use it.
4. The device restarts, and the interval between them needs to exceed 15 seconds; If the rapid restart will cause the inverter to not start, the equipment will not operate normally.
5. The force value test needs to be verified once or twice within one year.
6. Before the test of the rain test chamber, pay attention to cleaning the surface of the sample that is easy to fall off label paper, plastic film, etc., in order to prevent falling into the water tank and blocking the filter and affecting the water pump intake.

High temperature pressure jet waterproof test chamber IPX9K implementation standard:
It meets the requirements of international standards ISO20653-2013, VW80000, GB/T4208-2017 in Article 14.2.9 and Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12 waterproof grade IPX9/9K.

IPX9K high temperature pressure jet waterproof test chamber:
1. IPX9K high temperature pressure jet waterproof test chamber is suitable for IPX9K waterproof level test of products.
2. The shell is processed from steel plate, and the surface is sprayed with silver gray paint, which is beautiful and durable.
3. The turntable is all made of SUS304# stainless steel plate to ensure that it will not rust after long-term use.
4. Open structure; It also comes with its own water tank, which cannot recycle water; Automatic control of water ingress.
5. 4 fan-shaped nozzles are distributed in the vertical 90° in the middle of the box, which are designed and manufactured in strict accordance with the standard.
6. Turntable drive: using stepper motor, the speed can be set (adjustable) on the touch screen, and adjustable within the standard range.
7. The IPX9K high temperature pressure jet waterproof test chamber adopts the original Italian imported water pump, which is resistant to high temperature and high pressure, can be used for a long time, and has stable performance.
8. The test time can be set on the touch screen, and the setting range is: 0-999min (adjustable). In order to maintain the long-term efficiency of the pump, it is recommended to follow the following preventive maintenance cycle.
9. According to the date of the calibration certificate, the local third-party institution should be found in time for calibration; Once a year.

Structural features of IPX9K high temperature pressure jet waterproof test chamber：
1. IPX9K high temperature spray test bench is suitable for IPX9K waterproof level test of products;
2. The shell is processed from domestic steel plate, and the surface is sprayed with baking paint, which is beautiful and durable;
3. The inner box and turntable are all made of SUS304# stainless steel plate to ensure that it will not rust after long-term use;
4. Box structure; Bring your own water tank to recycle water; The water storage tank is equipped with a water level sensor, which automatically controls the water ingress and has a low water level alarm detection, which can prevent the water pump from being damaged due to water shortage;
5. There is a transparent observation window (tempered glass material) on the door, and LED lighting is installed in the box to facilitate the observation of the internal test;
6. 4 fan-shaped nozzles are distributed in the vertical 90° on the right side of the box, which are designed and manufactured in strict accordance with the standard.

LISUN lauched JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9，GB7000.1，ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.

The both interior and exterior material of this chamber is high quality stainless steel, big glass observation window and elegant appearance. The turntable and spray lance adopt imported motor, and the rotation speed is adjustable.

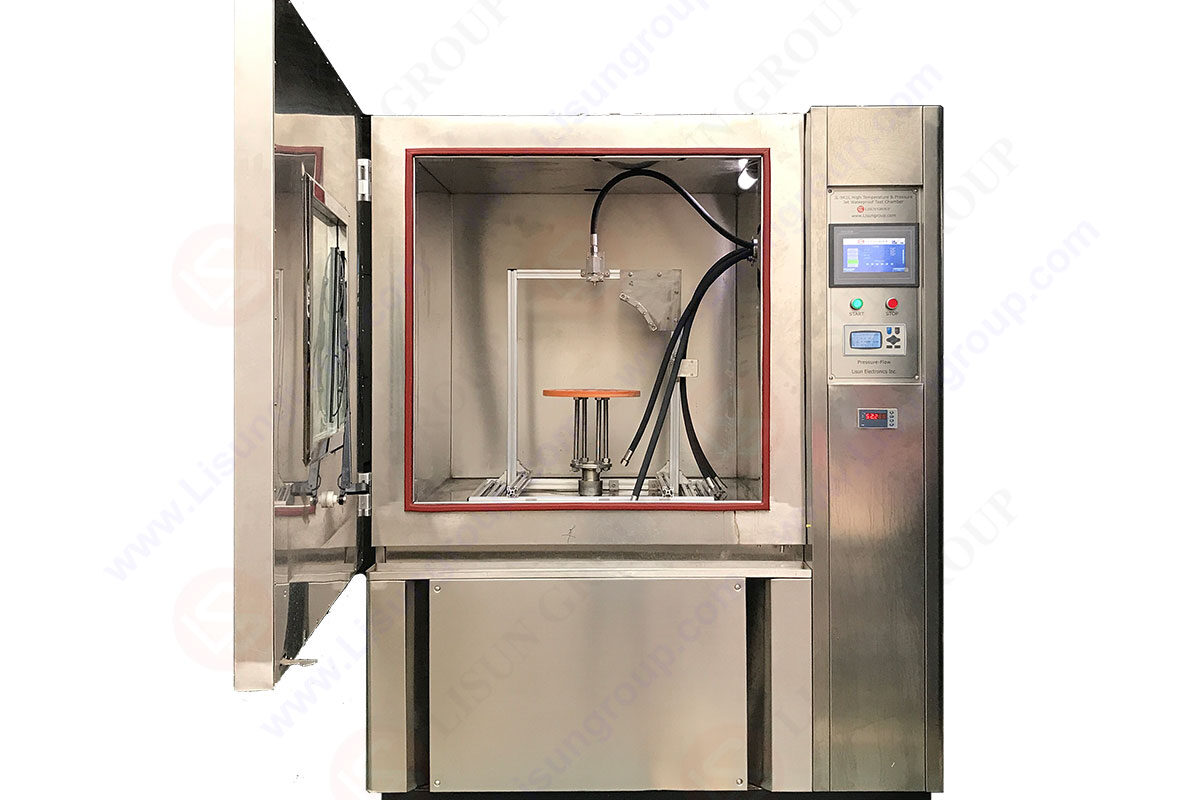

JL-9K1L High Temperature Pressure Jet Waterproof Test Chamber
