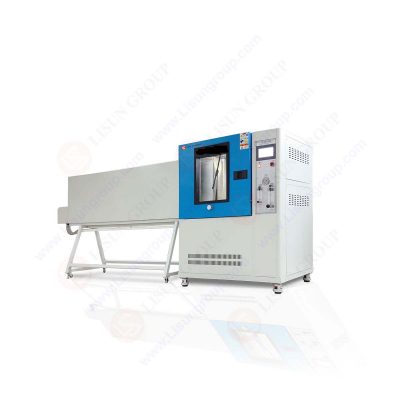

Introduction to the standard requirements of ipx456 waterproof test chamber

The application scope of ipx456 waterproof test chamber includes but is not limited to smart phones, air conditioners, outdoor lamps, telephones, diving facilities, televisions, swimming pool equipment, video recorders, automobiles, automobile accessories and other electronic and electrical products.

First, the waterproof test chamber of the ipx456 can be a comprehensive rain test chamber, and it can also be a single ipx4 machine, ipx5 and ipx6 waterproof instrument.
Among them, according to the test standard of ipx4, the size and diameter of its spray hole is 0.4 mm; The water flow of ipx4 is 6L/min ± 0.05, the tube swing angle is 350 degrees, the tube swing speed is 350 degrees, and the round trip time is 12 seconds.
Then, the inner diameter of IPX5 nozzle is 6.3 mm, and the water flow is 12.5 ± 0.625L/min; A circle with a diameter of about 40mm at 2.5m from the nozzle at the center of the main water flow; The inner diameter of IPX6 nozzle is 12.5 mm; The water flow is 100 ± 5L/min; The diameter of the central part of the main water flow 2.5m away from the nozzle is about 120mm. The same thing is that their shell surface sprays water for about 1min per square meter; The test time shall be at least 3min.

Advantages of ipx456 waterproof test chamber:
1. The shell is made of domestic high-quality steel plate, and the surface is sprayed with baking varnish, which is beautiful and durable.
2. The inner box, turntable and wading part are all made of SUS304 # stainless steel plate, which ensures no rust after long use.
3. The swing tube drive adopts domestic high-quality stepping motor. The swing tube speed and angle are accurate and adjustable, and there is no out of step problem.
4. A filter is installed on the water supply pipe, which can filter impurities in the water to prevent nozzle blockage
5. Touch screen control function: the self-developed IPX waterproof level test operation interface can automatically test according to the waterproof level conditions in the standard terms by directly selecting the waterproof level
6. With water storage tank, water can be recycled

Maintenance contents of ipx6 waterproof test chamber:
1. Please run the machine regularly to avoid damage caused by long-term idle; It is recommended to do it every half a month.
2. The equipment shall be placed in a ventilated environment as far as possible to avoid the impact of humid climate on the chassis.
3. The bearing capacity of the standard turntable is ≤ 50kg. Do not overload.
4. After the test, turn off the power switch of the device.
5. When adjusting the flow, do not rotate the regulating valve rapidly or vigorously; When the traffic is not up to the standard, it should be stopped in time.
6. Drain the water in the water tank and clean the water tank at least once a week.
7. According to the date of the calibration certificate, the local third-party organization shall be found in time for calibration; Once a year.
8. The water storage tank shall be cleaned regularly, and shall not be used in a short time. The water in the water storage tank shall be drained in time.
9. Wipe the water stain in the inner tank with a clean cloth.
10. When it is not used within two weeks, it is necessary to manually check whether each component operates normally.

What functions does the waterproof test chamber have?
1. The functions of the rain test chamber are various, for example, the waterproof performance of the product shell can be checked to see whether the product has waterproof performance, which is one of its functions.
2. Various IP waterproof grade tests can be carried out for different products, so as to facilitate the classification of grade waterproof standards for products. The larger the number, the higher the waterproof grade, indicating the better waterproof effect.
3. It is the test conditions of the product, which can provide a variety of test functions, such as drip test, immersion test, spray water test and strong flushing test.
4. Its types can also provide users with a variety of equipment choices. Of course, you can also customize various testing instruments suitable for your own products according to users’ testing needs, box size, technical parameter requirements, etc.

LISUN lauched JL-XC series waterproof test chambers are mainly used for small electronic and electrical products such as lamps, electrical cabinets, electrical components and so one. It is used for physical and other related properties checking under simulated climatic conditions. It determines whether the performance of the product meets the requirements or not after the test. It is very useful in the design, improvement, verification and factory inspection of the product. The JL-XC waterproof testing fully meets IEC60598-1,  IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208-2008 and GB7000.1.
