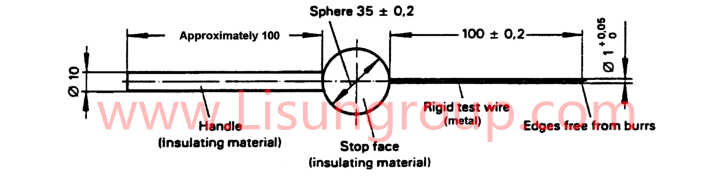

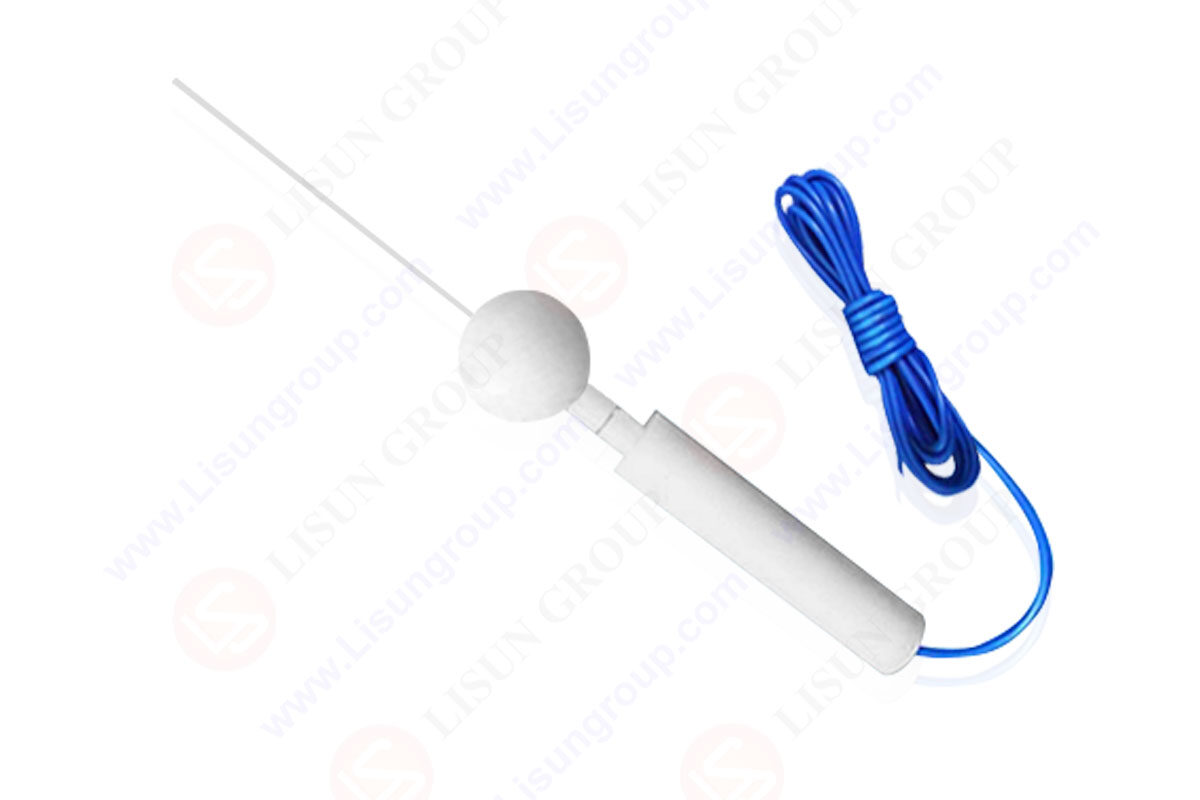

IP4X Test Probe with 1N Force IEC 61032

1 General
1.1 Scope and object
This International Standard(IEC61032) specifies details and dimensions of test probes intended to verify the protection provided by enclosures with regard to:
– protection of persons against access to hazardous parts inside the enclosure;
– protection of the equipment inside the enclosure against ingress of solid foreign objects.

The object of this International Standard is:
– to bring together in one publication object probes and access probes currently specified in other standards, together with any necessary new probes;
– to guide technical committees in the selection of test probes;
– to encourage those concemed to specify test probes in accordance with those already specified in this International Standard rather than modify details and dimensions;
– to limit the further proliferation of types of test probe.

1.2 General recommendations
When selecting probes, priority should be given to IP code probes.
The use of other probes, particularly probes which are not specified in this International Standard, should be limited to cases where the use of an IP code probe is for some reason impractical.

NOTE 1-The selection of a test probe for a particular purpose is the responsibility of the relevant technical committees.
NOTE 2-Technical committees wishing to develop new probes or to modify existing probes should submit proposals to technical committee 70 for amendment of this standard.

Application of the probes, test conditions, acceptance conditions and the procedure in case of conflicting test results are the responsibility of the relevant product committee. Certificates based on test probes conforming to the first edition of IEC 61032 should remain valid.

2 Reférences normatives
Les documents normatifs suivants contiennent des dispositions qui, par suite dela référence qui y est faite, constituent des dispositions valables pour la présente Norme internationale. Au moment de la publication, les éditions indiquées étaient en vigueur. Toute norme est sujette à révision et les parties prenantes aux accords fondés sur la présente Norme internationale sont invitées à rechercherla possibilité d’appliquer les éditions les plus récentes des documents normatifs indiqués ci-après. Les membres de la CEl et de I’ISO possèdent le registre des Normes internationales en vigueur.

CEI 60050(826): 1982, Vocabulaire Electrotechnique International (VEI)-Chapitre826: Instal-lations électriques des batiments.
CEI 60529: 1989, Degrés deprotection procurés par les enveloppes. (Code IP)
CEI 60536: 1976, Classification des matériels électriques et électroniques en cequi concerne la protection contre les chocs électriques.
ISO 4287-1: 1984, Rugosité de surface – Terminologie – Partie 1: Surface et ses paramètres.
