20 Nov, 2022 870 Views Author: Cherry Shen

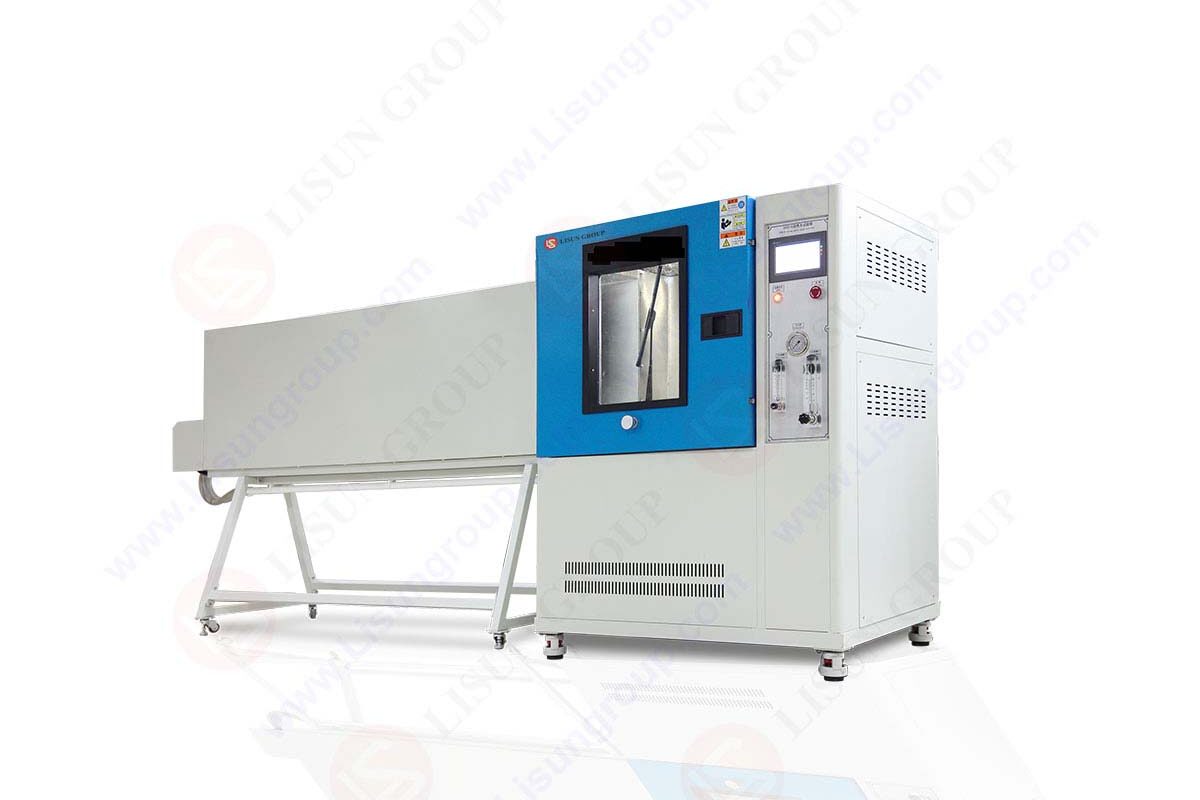

IPX12 raindrop test chamber

IPX12 raindrop test chamber, just as its name implies, is a box type structure with the characteristics of circulating water: for testing, it is energy-saving and environmentally friendly. More importantly, customers do not need to build a special waterproof laboratory, which greatly saves the initial investment cost. The shell of IPX12 raindrop test chamber is made of high-quality stainless steel, and the box is made of blue and white paint, which is generous and beautiful. The right side outside the box is also provided with a heat dissipation hole, which can effectively prolong the service life of the equipment.

video

The top of the box in the test box is a raindrop plate, which is made of high resistance stainless steel. Drip holes (each hole diameter is 0.4mm, which is designed in strict accordance with GB4208 standard) are evenly distributed on it, and the distance between holes is 20mm. It can effectively simulate the rain climate, making the rain area of the test sample more comprehensive.

Below the drip hole is the turntable for placing test samples. The turntable is also made of SUS304 stainless steel. The tilt of the turntable is 0 ° or 15 °, which can be adjusted manually. The distance between the test sample and the drip hole is 200mm. The turntable can rotate in three ways: one is positive and negative rotation; One is always turning forward; Another is adjustable interval rotation. The mode of rotation can be controlled by the operating system.

The door of IPX12 raindrop test chamber is equipped with transparent tempered glass window, and the box is equipped with LED lights, so that the operator can see the test of the inner box more clearly. The sample power socket is installed directly below the LED lamp, and the sample power on/off time can be controlled through the system panel for the sample power on/off when required during the test. The back of the test cabinet is equipped with a high-precision filter as standard, which can effectively filter impurities in tap water and prevent the nozzle under the rain drip panel from being blocked by foreign matters. The filter element can be replaced regularly to ensure the water quality during the test.
The materials used for different parts of the raindrop test chamber are different. It is equipped with a water quality filtration system, which has friendly control interface, simple operation, low noise design, and low carbon energy conservation.

Material of raindrop test chamber:
1. Outer box material: all the boxes are made of high-quality (t=1.2mm) A3 steel plate with CNC machine tools, and the shell surface is sprayed with plastic, which is more smooth and beautiful
2. Inner box material: imported high-grade stainless steel (SUS304)
3. Thermal insulation material: rigid polyurethane foam+glass fiber
4. Door insulation material: glass fiber cotton
5. Rotary table: the table is made of PVC hard board (corrosion resistant)
6. The parts in contact with water are made of stainless steel or copper

JL-XC series waterproof test chambers are mainly used for small electronic and electrical products such as lamps, electrical cabinets, electrical components and so one. It is used for physical and other related properties checking under simulated climatic conditions. It determines whether the performance of the product meets the requirements or not after the test. It is very useful in the design, improvement, verification and factory inspection of the product. The JL-XC waterproof testing fully meets IEC60598-1,  IEC60529:1989 +A1:1999 +A2:2013 《Degrees of protection provided by enclosures(IP Code)》GB4208-2008 and GB7000.1.

IPX12 raindrop test chamber

JL-XC waterproof test chamber
