Key Features to Consider When Choosing an EMI Test Receiver

Introduction:
Problems with electromagnetic interference (EMI) are a major obstacle to achieving EMC in electronic equipment. To overcome these obstacles, EMI test receivers are important for taking precise readings of electromagnetic radiation and evaluating the data they provide.

When it comes to EMI testing and compliance, having the correct EMI test receiver is crucial. To help engineers and manufacturers pick an EMI test receiver capable of producing accurate and dependable findings, this article explores the most important aspects to look for.

Frequency Range and Resolution Bandwidth:
The frequency range and resolution bandwidth of an EMI test receiver are two of its most essential characteristics. The receiver’s ability to detect and monitor electromagnetic radiation is limited by the frequency range. Selecting a receiver that works throughout the frequency range needed to test the device is crucial.

The capacity to discriminate between signals and the precision with which they may be detected are both functions of resolution bandwidth. The measurements may be fine-tuned to capture unique emission properties by choosing a receiver with a broad range of adjustable resolution bandwidths.

Sensitivity and Dynamic Range:
When looking for an EMI test receiver, sensitivity and dynamic range are two of the most important features to look for. The sensitivity of a receiver is measured by how well it picks up on very faint signals.

A more sensitive receiver can assess the EMI performance of the device by picking up emissions at lower levels. The receiver’s dynamic range is the range of signal intensities that it can faithfully reproduce. A receiver with a large dynamic range prevents saturation and loss of measuring accuracy at extremes of signal strength.

Quasi-Peak and Average Detection Modes:
The two primary types of detection provided by EMI test receivers are quasi-peak and average. Because it more closely mimics the interference that sensitive equipment really encounters, quasi-peak detection is often utilized in compliance testing.

On the other hand, average detection offers a more comprehensive picture of emissions across time. To guarantee thorough analysis and adherence to applicable requirements, use a receiver that supports both detection modes.

EMI Preselectors and Filters:
An EMI test receiver would be useless without the preselectors and filters that attenuate electromagnetic interference (EMI). By filtering out unwanted signals outside of the measured range, preselectors improve measurement precision.

Bandpass filters and notch filters are two types of filters that may be used to muffle just certain frequencies or bands of frequencies. An EMI test receiver’s preselectors and filters are crucial to collecting accurate readings and producing trustworthy findings.

Real-Time Spectrum Analysis:
Engineers may now see and study electromagnetic emissions in real time thanks to real-time spectrum analysis. It offers a comprehensive look of the frequency range, making it possible to spot brief disruptions.

Engineers may more easily identify the source of interference and devise efficient mitigation techniques because of real-time spectrum analysis’s ability to detect and analyze complicated signal patterns.

Compliance Database and Reporting:
To ensure EMI compliance, measurements are routinely compared to predetermined limits and standards. An EMI test receiver with a built-in compliance database makes this procedure easier by offering ready access to a large collection of applicable standards and regulatory restrictions.

The system makes it simple for engineers to check for compliance and provide reports. For reasons of record-keeping and as evidence of conformity throughout product certification procedures, the capacity to create thorough and adaptable reports is crucial.

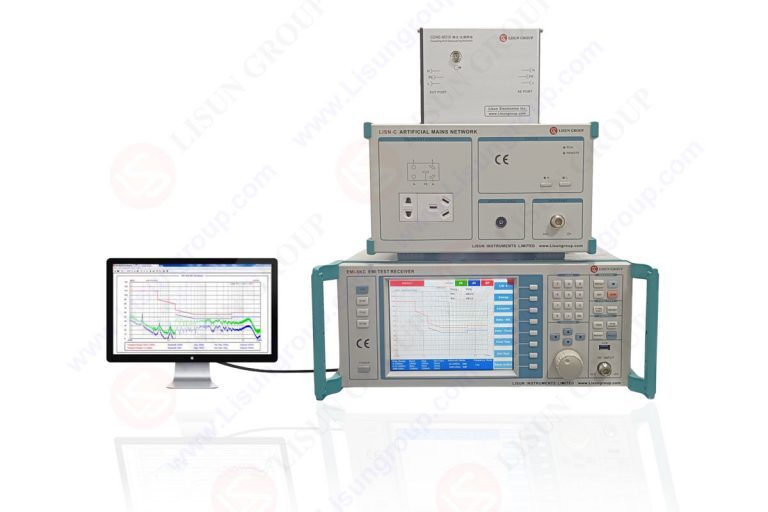

Figure: EMI compliance testing

Antenna Options and Accessories:
When looking for an EMI test receiver, it’s crucial to take into account the variety of antennas and antenna accessories that are available. Biconical, log-periodic, and horn antennas are only a few examples of possible test-specific antenna topologies.

It is crucial to choose a receiver that provides a wide range of antenna configurations and accessories to meet a wide range of test configurations and measurement needs. LISUN provides the best EMI test receivers.

Advanced Signal Processing and Analysis Tools:
With the help of modern signal processing and analysis tools, EMI test receivers may greatly improve the reliability and productivity of EMI testing. Automatic signal categorization methods, time-domain analysis, and peak search functions all help to discover and analyze complicated emission patterns.

Engineers may use these technologies to better understand the nature of electromagnetic emissions, which in turn allows for more efficient problem-solving and protection measures to be implemented.

Modulation Analysis:
Modulated signals used in modern wireless communication systems increase the difficulty of EMI testing. Engineers may assess how modulated signals affect the EMC performance of the device by using an EMI test receiver with modulation analysis capabilities.

The receiver has to be able to demodulate and analyze a wide variety of modulation schemes, including AM, FM, and digital modulation methods like QPSK and QAM. The vulnerability of the device to modulated interference sources may be thoroughly evaluated with the use of modulation analysis.

Integration with Software and Test Automation:
In order to speed up the EMI testing procedure, it is recommended to integrate with software and test automation systems. Data collection, analysis, and reporting are all simplified by EMI test receivers that either integrate with common software programs or provide their own software environments.

There is less room for human mistake and more testing efficiency thanks to integration with test automation tools that automate test configurations, data gathering, and result interpretation.

Calibration and Traceability
Correct calibration and traceability are essential for EMI measurements to be reliable. Selecting a reliable manufacturer that offers calibration services and guarantees traceability to national or international standards is crucial when shopping for an EMI test receiver.

The findings of compliance assessments may be trusted thanks to regular calibration, which guarantees that measurements are accurate and reliable.

Portability and Form Factor:
For on-site testing or other mobile applications, it is crucial that an EMI test receiver be lightweight and compact. With a portable receiver, you can take your exams wherever you choose. Designs that are compact and lightweight make transportation and set up a breeze.

However, it is important to find a happy medium between mobility and performance to guarantee that the receiver can handle the technical demands of taking precise readings.

Expandability and Upgradability:
For future scalability and versatility, choose an EMI test receiver that can be upgraded and expanded. Extra features, such time-domain measurements, conducted emissions testing, and transient analysis, may need to be added to the receiver, thus it’s important that there be expansion slots or interfaces for doing so.

The receiver’s ability to accept updates to its firmware assures that it will continue to function in accordance with current and future EMI standards and regulations.

Training and Support:
When deciding on an EMI test receiver, you should think about whether the manufacturer offers any training materials or customer assistance. Engineers who have received enough training will be able to use the receiver and all its functions to their full potential.

In addition, having access to documentation, application notes, and frequently asked questions (FAQs) as well as rapid technical help may be crucial in addressing difficulties and optimizing the receiver’s usability.

Cost-Effectiveness:
It is important to assess the value of the EMI test receiver while thinking about its many features and functions. The receiver must be cost-effective while yet satisfying all technical standards. You may better strike a balance between quality, performance, and cost by considering the receiver’s longevity, upgrade potential, and support services.

Conclusion:
In order to conduct credible EMI testing and compliance analysis, it is essential to use a high-quality EMI test receiver. Key features such as frequency range, sensitivity, detection modes, preselectors, real-time spectrum analysis, compliance database, antenna choices, signal processing tools, integration capabilities, calibration, portability, expansion, training and support, and cost-effectiveness should be considered by engineers and manufacturers.

Stakeholders may make an educated choice about purchasing an EMI test receiver that allows efficient and successful electromagnetic compatibility testing by carefully assessing these qualities and their connection with particular testing needs.
