LISUN DYJ-60HZ Adjustable Reference Standard Ballast – After Sales Questions and Answers

According to Double end fluorescent lamp of IEC 60081 (GB/T10682) and the single-ended fluorescent lamp of IEC60901 (GB/T17262), ANSI C78.81 and ANSI C82.3, DYJ Adjustable Reference Standard Ballast is used to test for 4w~85w fluorescent lamp and electronic ballast test.

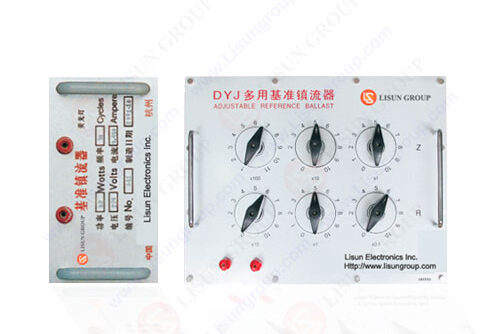

DYJ_adjustable reference ballast

Specification:
• Inductance: 0~1240Ω (adjustable)
• Inductance Power Factor COSφ: 0.075~0.120
• Resistance: 0~111Ω (adjustable)
• Current Range 0.150~0.670A (Imax: 1A)
• Order Code: DYJ-50HZ is for 50Hz lamp test and DYJ-60HZ is for all 60Hz lamp test

According to IEC60188, IEC60662 and ANSI C82.5, Lisun Group developed the DYJ-HID Standard Ballast (Reference Ballast) to test the HID lamp, HID ballast, High-Voltage Mercury Lamp, High Voltage Sodium Lamp, Metal Halide Lamp and Halide Reactor. More information, please contact Lisun Group.

Q1: What is the difference between the terminal block on the top and the bottom of the equipment?
A1: The function of the terminal block on the top and the bottom of the equipment is the same. One set of terminal blocks can be used.

Q2: How to wire the three terminals of 60HZ DYJ?
A2: As for DYJ 60HZ instrument there are three terminals on the front panel. When testing parameters of 220V 50HZ FL6W or CFL9W lamps, the 1# and 3# terminals should be applied; when testing parameters of other lamps, the 1# and 2# terminals should be applied.
