LISUN JL-34 IP Waterproof Test Equipments – After-sales Frequently Asked Questions (FAQ)

JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

The whole JL-X waterproof test system includes:
• Drip Box (JL-12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm (LxWxH). The diameter of drip hole is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.
• Swing Pipe Water Spray Test Equipment (JL-34): It is for IPX3 and IPX4 waterproof test. The semi-diameter of swing pipe is 1meter (Any other size is also available). The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other size according to the diameter of the swing pipe), and the height is adjustable. The rotation speed is 1~5rpm which controlled by PLC panel.
• Waterproof Jet Test Device (JL-56): With water supply device size is 1000x1000x600mm, the nozzle diameter is ф6.3mm (IPX5 waterproof test ) and ф12.5mm (IPX6 waterproof test). The water speed is 12.5 ±0.626L/min for IPX55 and 100 ±5L/min for IPX6
• Immersion tank Waterproof test Device (JL-7): It is for IPX7 waterproof test. The water tank size is 1000x1000x1200mm (Other size can be designed according to your request). It can test samples up to 120kg.
• Immersion tank Waterproof test Device (JL-8): It is for IPX8 test. It can simulate a water depth of 0~50m. The water immersion tank diameter is 600mm and the height is 1200mm. The compressive stress is 10 atmospheres or design according to customer‘s request.

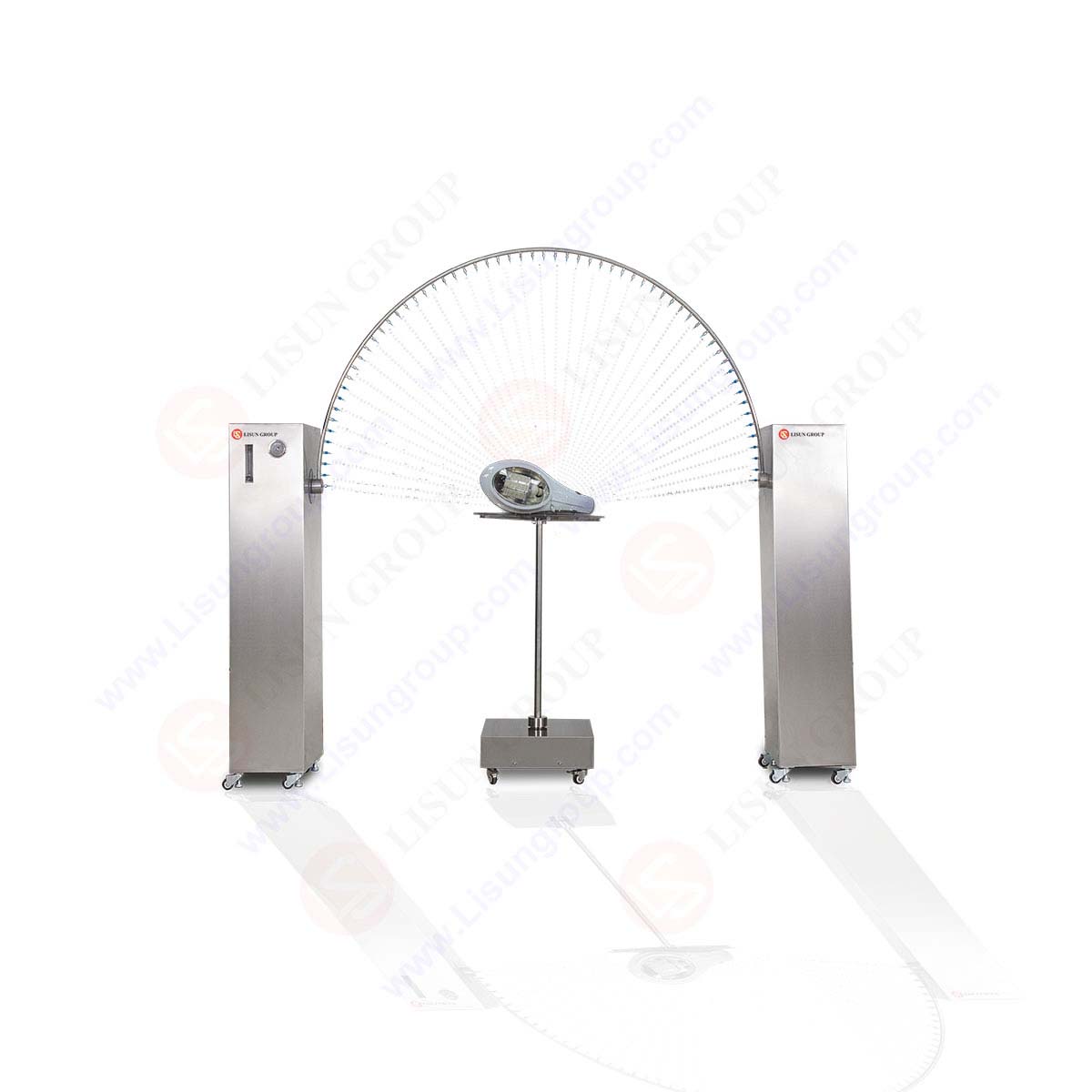

IP Waterproof Test Equipments JL-34

Q1: After starting, I can hear the sound of the water pump, but no water comes out
A1: Please make sure that the voltage and frequency of the power supply connected to the equipment are consistent with those marked on the nameplate. If not, it will affect the water pump and even damage the equipment.
Air in the water pump will also affect the water pumping effect. Fill the water tank with water and start the water pump after the water enters the water pump.

Q2: The touch screen prompts “Water tank overfilled” as follows

JL-34 Water tank is overfilled

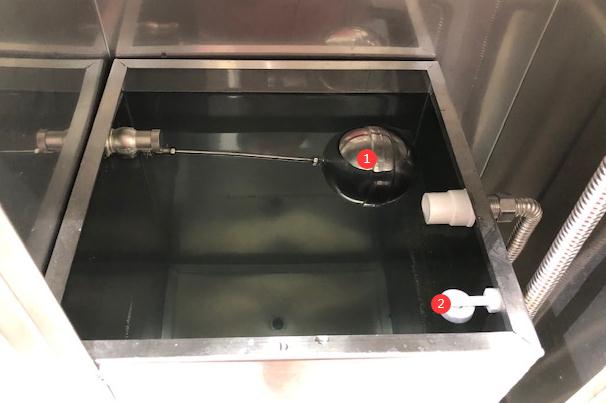

A2: The position of ① float ball of the water tank may be changed during the transportation or handling of the equipment. The float ball is too high, causing the water level upper limit sensor ② to float up and alarm. Please rotate the rod of the float ball ①, or slightly bend it to lower the final position of the float ball. When the water level of the water tank is at the highest point refer to the float ball, and do not float the sensor ②, then there will be no error.

Water tank

Q3: Click “Test Start”, but the equipment cannot start the test, and the following errors on the touch screen:

JL-34 Oscillating tube is not at 0

JL-34 Test time is not reset

A3: Please click “return”, and click “Tube reset” to rotate the osillating tube to 0 degree position, and click “Time reset” to clear the time of the last test, and then click “Test start” again.

JL-34 Tube reset and time reset

Q4: During testing, the sample power cord is tangled?
A4: The turntable we designed will only rotate in one direction when the sample does not need power supply. When the sample needs power supply (click “Sample Power Supply” on the touch screen), the turntable will automatically change the direction of rotation every minute without causing the power cord to get tangled.

Q5: The needle get blocked
A5: For the first use, please clean the oscillating tube and the inside of the water hose before installing the needle. Use clean water as much as possible. If the filter element changes color after long-term use, please replace the filter element in time to ensure that no debris enters the oscillating tube. If the needle is found to be blocked, use the tool provided by LISUN to clear the needle and then reinstall the needle.

Dredging tools

Q6: How to use counterweight?
A6: In order to ensure the stability of swing tube rotation, only large-size swing tubes (radius 1.4m and above) will be equipped with counterweights. Small size swing tube does not need to use counterweight. The counterweight is shown in the following figure:

Counterweight tool

Q7: Turntable size and height
A7: In order to match the swing tubes of different sizes, we have a variety of turntable sizes, and the height can also be adjusted. Select the turntable of the corresponding size and adjust it to the appropriate height.

Q8: How to confirm test results?
A8: If the sample short-circuits and shuts down during the test, it is definitely not in compliance with the standard. If the sample can still start and run normally, you need to take out the sample, wipe off the moisture on the surface, and then open the sample to check whether there is water inside. If there is water, it is also not in compliance with the standard.
For specific details, different industries have different rules, and you can refer to the corresponding industry standards.
