LISUN LEDRACK-100W192P LED Driver Aging Test Rack – After-sales Frequently Asked Questions (FAQ)

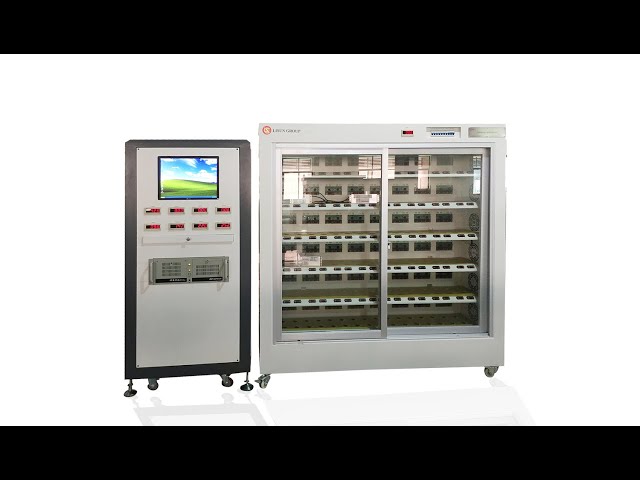

The LED Driver Aging Test Rack is applied to the production line for the finished products testing. With features of simplified operation and nice-looking, it can improve the workers’ work efficiency. This system can meet the requirements of IEC62384, GB24825-2009 and other relative standards.

Configuration:

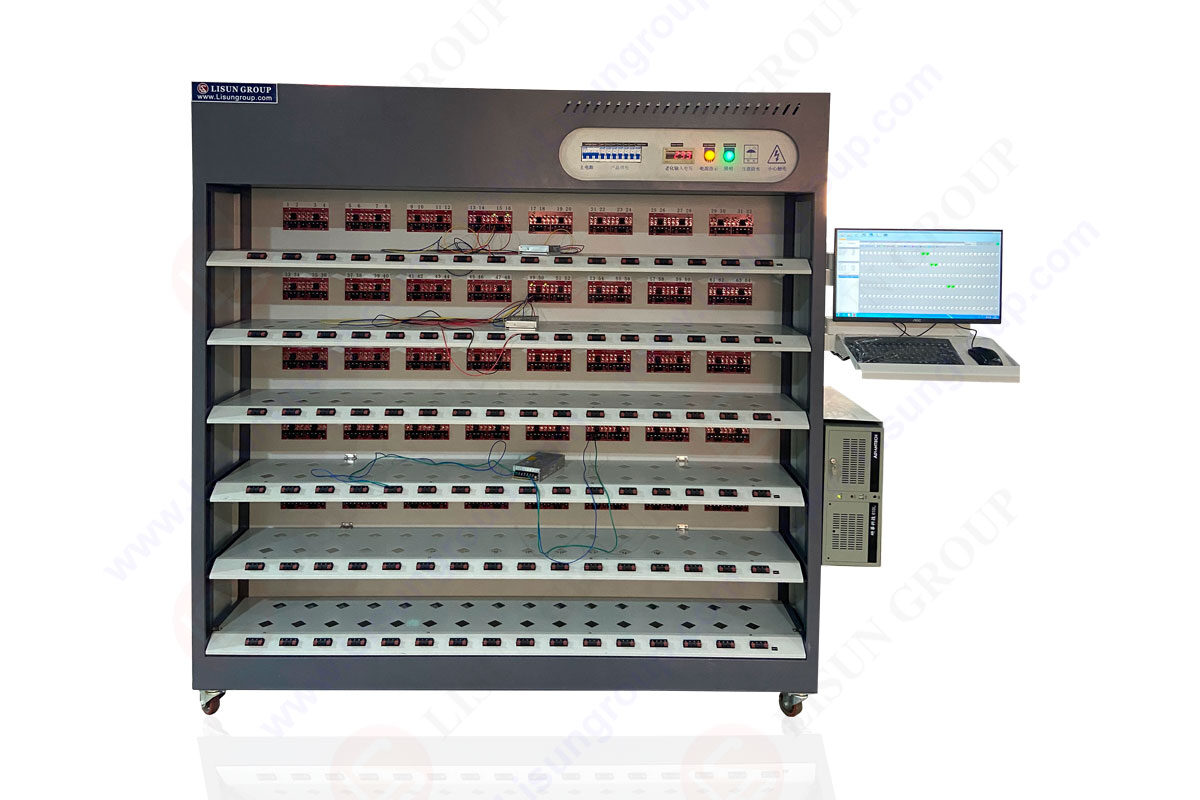

The LED Driver Aging Rack includes three parts: LED Driver Aging Rack, Aging Control System includes PC & software, and LED Load Modules.

Specification:
• Application range: LED driver and multi channel driver power aging. It is equipped with computer and monitor system. The working condition can be set on the computer software, and the software will record all the real time data to do the statistical analysis.
• The parameters of load can be set freely on the software. The monitor shows the real time voltage, current, and power etc
• Load mode: CC, CV, CR, CP, and LED
• Aging control system includes: ON/OFF control signal output; signal of relay switch control; K type thermocouple temperature acquisition
• The channels are parallel connected under arbitrary load mode, which can allow product power expansion
• Automatic current switching function (optional)
• AC power meter to measure modules, and test power input characteristics (optional)
• Temperature monitoring function at product zone (optional)
• PWM dimming and two sets of logic control signal function (optional)
• The LED Driver Aging rack can also be designed according to customer’s LED driver power and other requirement

Q: How to connect power cord to the rack correctly?

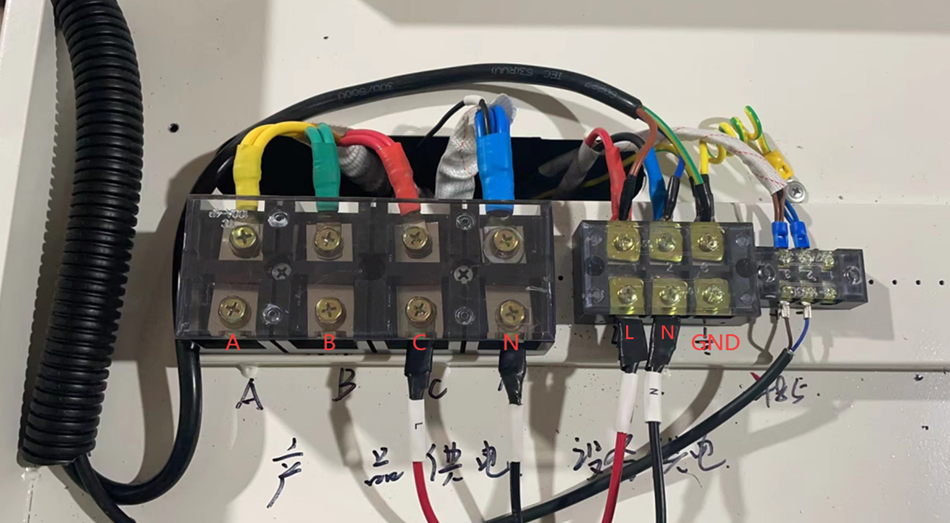

A：See below. A B C N on the left supplies power to the samples. The sum of all samples powers can be very large. To prevent the wire from heating up, three-phase power is used here.
If you only have single-phase power and all your samples use the same input voltage, you need to prepare thick enough wires and directly short-circuit the three phases of ABC and directly use single-phase power. The connected voltage and frequency can refer to the samples you connected.

L N on the right supplies power for the rack itself, which requires single-phase 220V power.

GND is the ground wire, please ground the rack well.

Note: When the rack leaves the factory, the left and right terminals may be short-circuited by wires. If the voltages of the sample and rack are the same, the power cord can be shared. When you use the equipment, you can decide how to connect the two power cords according to the actual situation.
