13 Nov, 2022 973 Views Author: root

LISUN LMS-6000UV Portable CCD Spectroradiometer– After Sales Questions and Answers

Standards:
Fully meet CIE 177,  CIE-13.3 ,  Optical-Engineering-49-3-033602, and IEEE.

video

The Chroma Meter Specifications:
• Spectral resolution: ±0.2nm, Reproducibility: ±0.5nm
• Accuracy of chromaticity coordinate (Δx, Δy): ±0.005
• Correlated color temperature CCT: 1, 000K ~ 100, 000K (±0.6%)
• Illuminance range: 5~200,000lx
• LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854
• With 4000mAh rechargeable Li-ion battery which can continuously work for 20 hours
• Dimensions: 135mm*80mm*23mm
• Connect to PC via USB cable. English version software can run on Win7, Win8 or Win10

Portable CCD uv Spectroradiometer

Portable CCD Spectroradiometer LMS-6000UV

Q1: The software cannot connect the device for testing
A1: LMS-6000UV has two versions of software. New equipment can only use new software, and old equipment can only use old software.
This device is a handheld device, and the software is only an auxiliary tool. Neither the new software nor the old software can communicate with the device and then conduct operation test on the software. The software can only open the test results saved on the device, view and print the test report.
The device uses a USB cable to connect to the computer, and ensure that File transmission is selected as the Usb communication in the settings. Then you can use the device as a USB flash disk and open the files saved in the device with software.

LISUN LMS-6000UV Portable CCD Spectroradiometer– After Sales Questions and Answers

Files in the device

Q2: Inaccurate test data
A2:
a. Ensure that the probe is facing the tested object during the test. There is no stray light, and it is better to test in a dark room environment.

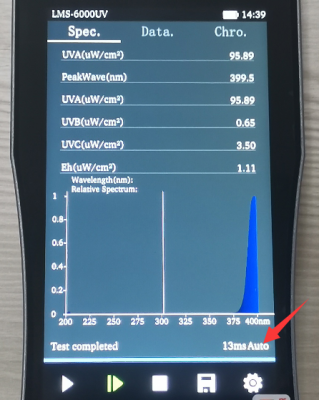

b. The integration time during equipment test should be automatic. If it is not automatic, please click to change to automatic.

LISUN LMS-6000UV Portable CCD Spectroradiometer– After Sales Questions and Answers

Change to auto
