LISUN YWX/Q-010 Salt Spray Test | Salt Spary Chamber – After-sales Frequently Asked Questions (FAQ)

Salt Spray Test Chamber | Salt Fog Test | ASTM B117 Salt Spray ChamberSalt Spray Test Chamber is applicable to the salt spray corrosive test for the protection layer of components, parts, electronic and electrical parts and metal materials and industrial products. The salt fog test chamber meets the following standards: IEC60068-2-11 (GB/T2423.17), GB/T10125, GB/T1771, ISO9227, ASTM-B117, GB/T2423-18, QBT3826, QBT3827, IEC 60068-2-52, ASTM-B368, MIL-STD-202, EIA-364-26, GJB150, DIN50021-75, ISO3768, 3769, 3770; CNS 3627, 3885, 4159, 7669 etc.

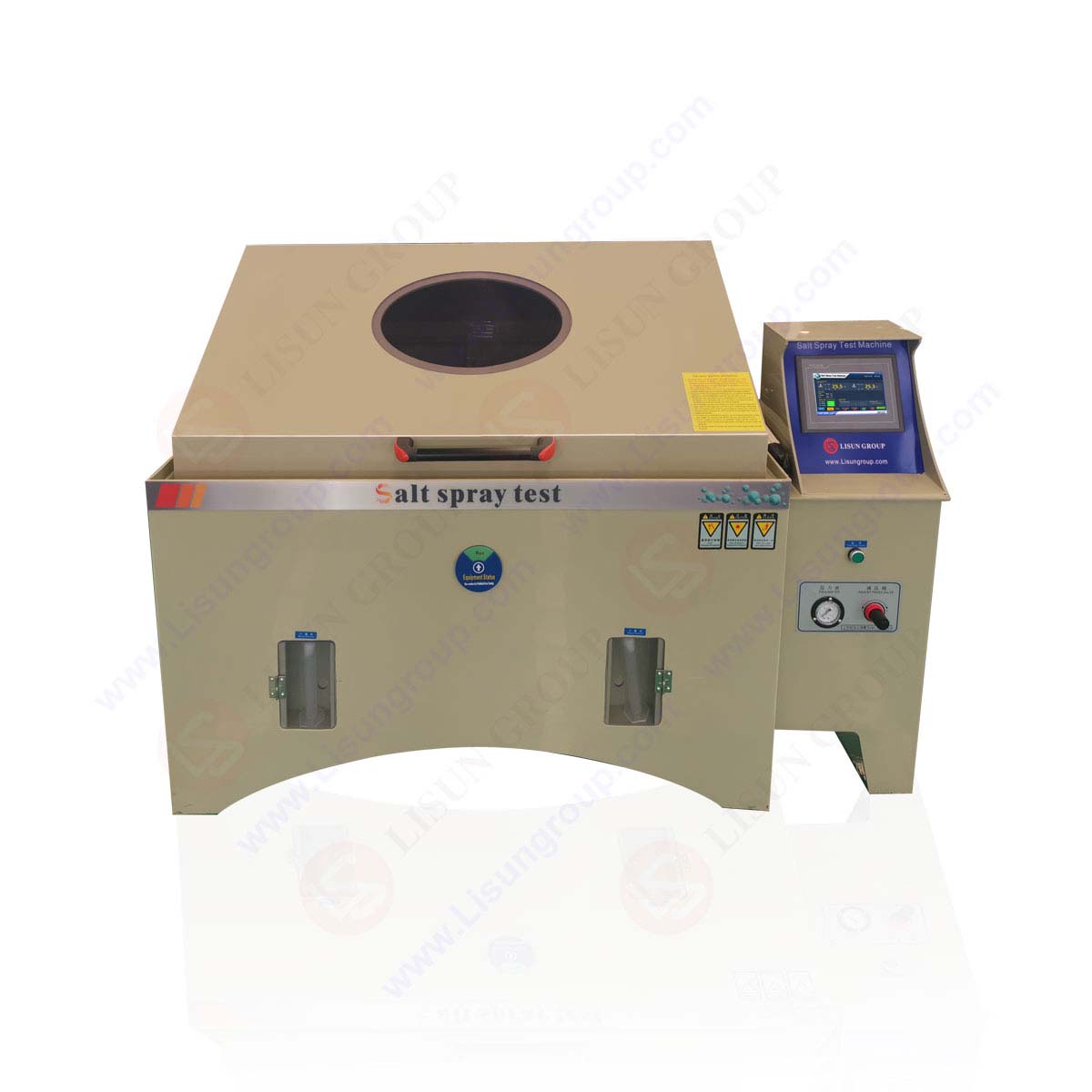

YWX/Q-010_Salt Spray Test Machine

How do you do a salt spray test?

1. First power on the salt spray test chamber (plug in)
2. Press the red power switch panel from left to right, respectively: the low water level A light is on, the low salt water B light is on, and the low water level C light is on.
3. Pour distilled water directly into the test chamber, wait until the water level A indicator light off, and stop adding water. […more…]

Q1: Uneven spray or incorrect spray amount
A1: The nozzle position may move during the transportation of the chamber or after long-term use. Please readjust the nozzle direction. The spray volume can also be controlled by adjusting the size and direction of the spray tower window.

Nozzle and spary tower

Q2: Nozzle clogged
A2: After the chamber has been used for a long time, the nozzle may be clogged by impurities. Just remove the nozzle, clean it, and then reinstall it.
Please use pure water for saturated barrel water and solution water to avoid nozzle clogging. In addition, each of our salt spray chambers is equipped with a spare nozzle. If the old one is damaged, it can be replaced with a new one.

Nozzle and spary tower

Q3: The test chamber I received is different from the one in the instruction manual or brochure.
A3: The appearance and details of salt spray test chambers of different sizes may be a little different. In addition, we will also improve the hardware from time to time based on our experience to make the equipment easier to operate.
