Measurement Techniques in Goniophotometry: Integrating Sphere vs. Goniometer

Introduction

Goniophotometry is a standard method for describing the light field around a given point source. It’s vital in lots of different fields, such as lighting design, car lighting, garden illumination, and more.

The integrating sphere and the goniometer are two popular measuring tools used in goniophotometry. Different tasks call for various methodologies due to their own strengths and weaknesses. This article delves into the fundamentals, measurement setup, advantages, and limitations of each method, as well as their respective fields of application and measurement accuracy concerns.

Integrating Sphere

The integrating sphere is a typical device that is used for obtaining measurements in the field of goniophotometry. It has the form of a hollow spherical, the surface of which is coated on the inside with a highly reflecting material (often barium sulfate).

Because the light from the source is dispersed uniformly over the sphere, it is possible to quantify both the total luminous flux as well as its spatial distribution.

1. a) Measurement Setup: The inside surface of the sphere will both absorb and disperse light coming from a source that is positioned near the sphere’s center. It is possible that we will be able to get a spatial distribution of the scattered light if we position photodetectors or spectroradiometers at key spots all around the sphere.
2. b) Advantages: Because it provides a measurement that is averaged throughout the light’s dispersion in all directions, the integrating sphere is helpful for obtaining total luminous flux, colorimetric properties, and an overall performance evaluation. The setup is straightforward, and it offers reproducibility and dependability in measurements. In addition to this, it is compatible with a wide range of source configurations in terms of both size and form.
3. c) Limitations: As a result of its low angular resolution, the integrating sphere is not nearly as efficient or accurate as other approaches when it comes to monitoring sources that are highly directed. The only thing that can be determined from the data is the typical distribution of the light, and it is possible that specific directional information will be lost in the process. In addition, owing to the size of the sphere, it might be challenging to evaluate sources that are very large or have intricate geographic distributions.

Goniometer

The goniometer is yet another common instrument used in goniophotometry. It is possible to get very precise measurements of the angular distribution of the output of a light source. The goniometer is a device that measures light at different angles of incidence; it consists of a rotating platform on which the source and a photodetector or spectroradiometer are attached. The goniometer is used to determine how light interacts with different surfaces.

1. a) Measurement Setup: The goniometer platform, to which the source is mounted, has the capability of rotating in both the horizontal and the vertical planes. While a photodetector or spectroradiometer is mounted to an arm that spins in synchrony with the source, the arm itself rotates. When the source is rotated, data on the light’s dispersion is obtained from a broad variety of perspectives.
2. b) Advantages: Utilizing the goniometer’s capacity to measure the angular dispersion of light is helpful when doing research on highly directed sources. The spatial features that are exhibited include things like beam angles, intensity distributions, and light cutoff angles. These are only some of the characteristics that are shown. When it comes to evaluating the performance of directed lighting systems, such as those seen in vehicles and including headlights and spotlights, the goniometer really comes into its own.
3. c) Limitations: When utilizing a goniometer, time is a consideration since precise angle control as well as many measurements taken at a variety of angles are necessary. The accuracy of the measurements may be called into question due to a number of factors, including, but not limited to, mechanical vibrations and stray light. In addition, there is a possibility that goniometer installations may struggle to accommodate sources that are either very large or have particularly intricate geometries.

Application Areas and Considerations

Which of the integrating sphere and the goniometer should be used for a particular measurement is determined by elements that are unique to the application as well as the light source. In the next paragraphs, considerations and examples of applications are provided for each approach:

1. a) Integrating Sphere: An integrating sphere is a tool that may be used to quantify a variety of aspects of light sources, including total luminous flux, colorimetric features, and an overall performance evaluation. It is possible to utilize it to provide an accurate measurement of the brightness of light sources that are diffuse or omnidirectional, such as incandescent and fluorescent lights. It is also helpful for assessing the color rendering index (CRI) and maintaining color uniformity across a range of lighting conditions. In architectural lighting design, where the total distribution of light is very important, the integrating sphere may be a helpful tool when analyzing the performance of luminaires.

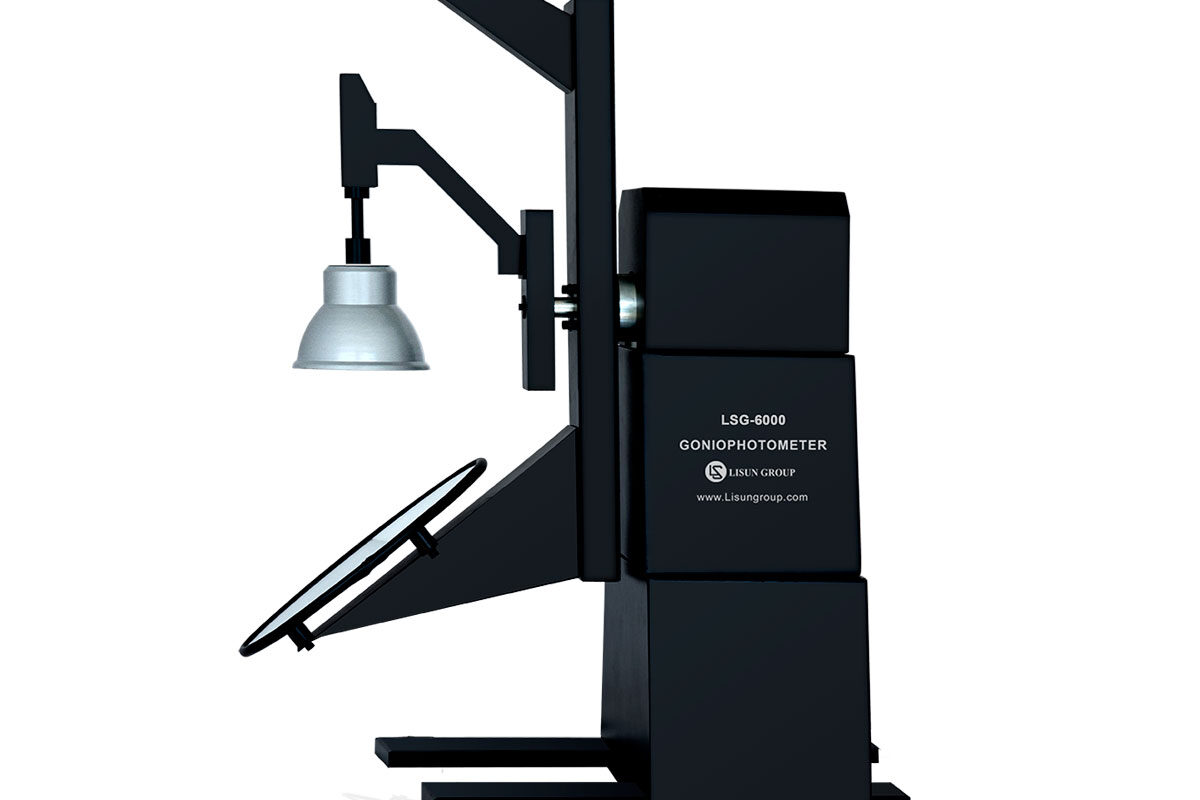

Figure: Goniophotometer

LEDs, spotlights, and car headlights are all examples of extremely directed light sources, hence a goniometer is the tool of choice when measuring their beam angles. Light beam angles, intensity distributions, and light cutoff angles may all be measured precisely with the use of a goniometer. This is especially important in lighting fixtures for vehicles, theaters, and homes, where precise light direction is necessary. You can select LISUN for the best goniophotometers.

There are a number of things to think about while deciding on a measuring method. To begin, the size and shape of the light’s source matter. Because of its adaptability, integrating spheres may be used for a variety of purposes. However, goniometers may struggle to deal with very big or intricate sources.

The second factor to think about is how much detail and precision you need in the physical world. While integrating spheres can assess light dispersion on an average basis, goniometers may give more precise direction data. The integrating sphere is a useful tool for determining averages or assessing overall performance. The goniometer is the tool of choice when precise measurements of angles, beam patterns, or asymmetric distributions are required.

Third, the time and effort needed to set up the measurement should be considered. Simple integrating sphere configurations may provide accurate results rapidly. However, goniometer setups may be time-consuming since they need for accurate angle control and many readings at various places.

Finally, the standards and regulations that are relevant to the intended use should be taken into account. The International Commission on Illumination (CIE), the American National Standards Institute (ANSI), and others all provide recommendations and standards for goniophotometric evaluations. The ability to measure accurately and consistently among labs and manufacturers relies on their familiarity with these standards.

Conclusion

Integrating spheres and goniometers are both essential tools in the field of goniophotometry, which studies the spatial distribution of light from various sources. When evaluating the effectiveness of a diffuse or omnidirectional source, the integrating sphere is useful for assessing total luminous flux, colorimetric parameters, and overall performance.

But the goniometer really shines when it comes to measuring the precise angular dispersion of light from pinpoint sources. The size, spatial resolution, ease of setup, and adherence to applicable standards are only few of the factors that should be taken into account while deciding between the two methods. For reliable and useful goniophotometric readings, it is crucial to have a firm grasp on the strengths and weaknesses of each method.
