Overview of Coating Thickness Analyzer and Its Application Areas

What is a Coating Thickness Analyzer?

A coating thickness analyzer, also known as a coating thickness gauge, electroplating layer tester, or anti-corrosion layer detector, is an instrument capable of non-destructively measuring the thickness of coatings on various substrates. It can measure non-magnetic coatings (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron, alloys, and hard magnetic steel) and non-conductive coatings (such as enamel, rubber, paint, plastic, etc.) on non-magnetic metal substrates (such as copper, aluminum, zinc, tin, etc.).

Technical Background

Coating thickness measurement has become a crucial step in quality inspection for the processing industry and surface engineering. It ensures that products meet high-quality standards. With the growth of global trade and international market demands, China has clear requirements for the coating thickness of export products and foreign-related projects. Using a coating thickness analyzer for inspection can improve product quality, enhance market competitiveness, and meet the stringent quality requirements of international markets.

Basic Principles of X-ray Fluorescence Coating Thickness Analyzers

Basic Concept of X-ray Fluorescence

X-ray fluorescence (XRF) refers to the X-rays emitted by a sample when it is irradiated with X-rays. This fluorescence contains information about the chemical composition of the sample. By analyzing this fluorescence, the content of various components in the sample can be determined, a method known as X-ray fluorescence analysis.

Atomic Physics Fundamentals

According to atomic physics, each chemical element’s atom has a specific energy level structure, with its electrons operating at fixed energies in their orbits. When inner-shell electrons are irradiated with enough X-ray energy, they can escape the atom’s pull and become free electrons, causing the atom to become excited.

Generation of Fluorescent X-rays

When inner-shell electrons are excited out of their orbits, the atom becomes unstable. To return to a stable state, other outer-shell electrons fill this vacancy, a process called electron transition. During this transition, electrons release energy in the form of X-rays, known as X-ray fluorescence.

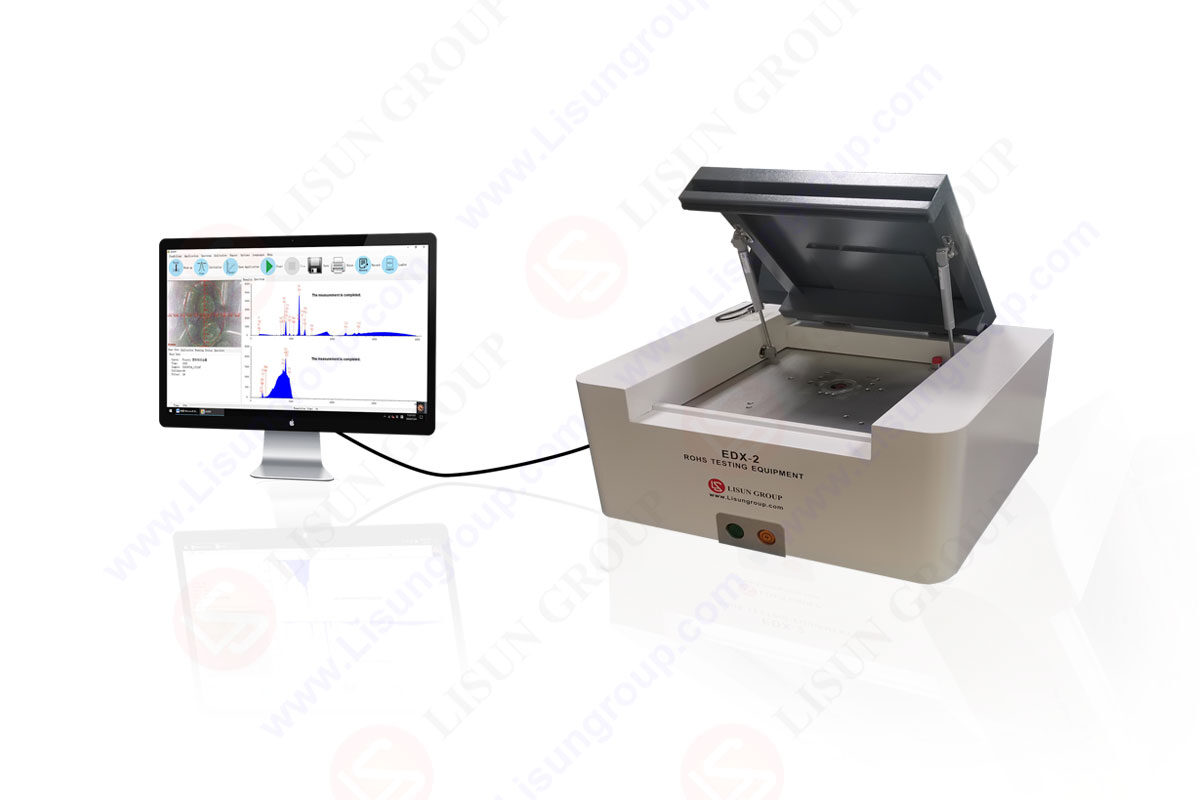

EDX-2A_RoHS Testing Equipment

Working Principle of X-ray Fluorescence Analyzers

• Excitation of Sample: The X-ray fluorescence analyzer first irradiates the sample with X-rays, exciting the atoms in the sample and causing them to emit X-ray fluorescence.
• Collection of Fluorescence: Detectors in the instrument collect the fluorescent X-rays emitted from the sample.
• Spectral Analysis: Through spectral analysis, the characteristic X-ray energy and intensity emitted by each chemical element are determined.
• Qualitative and Quantitative Analysis: The characteristic X-ray energy identifies the elements present in the sample (qualitative analysis), and the intensity determines the content of each element (quantitative analysis).

In coating thickness measurement, X-ray fluorescence analyzers primarily utilize the following principles:

• Identification of Characteristic X-rays: Different elements have distinct characteristic X-ray energies. By identifying these X-rays, the elements in the coating can be determined.
• Relationship Between Intensity and Thickness: The intensity of characteristic X-rays is proportional to the coating thickness. By measuring the intensity of the fluorescent X-rays, the coating thickness can be calculated.

Main Features

• High Precision: Low measurement error ensures accuracy.
• High Reliability: Stable performance and long service life.
• Easy Operation: User-friendly interface and easy to operate.
• Versatility: Suitable for various types of coatings and substrate materials.

Coating thickness analyzers employ various techniques, categorized into destructive and non-destructive methods. Below are some common measurement methods:

Destructive Methods

• Wedge Cutting Method: Creates a wedge-shaped cut in the coating using mechanical cutting, then measures the thickness through microscopic observation. High precision but complex and destructive.
• Optical Section Method: Uses an optical microscope to observe the cross-section of a cut sample and measure the coating thickness through optical imaging. High precision, suitable for transparent or semi-transparent coatings, but requires sample cutting.
• Electrolytic Method: Uses an electrolyte to corrode the coating, measuring the thickness difference before and after electrolysis. High precision but complex and destructive.
• Thickness Difference Measurement: Removes the coating through mechanical or chemical means and measures the thickness difference before and after removal. Simple but destructive.
• Weighing Method: Measures the weight before and after coating application to calculate the thickness based on the weight difference. Suitable for uniform coatings, but less precise and complex.

Non-Destructive Methods

• X-ray Fluorescence (XRF): Uses X-rays to excite the elements in the sample, measuring the thickness through fluorescence intensity. High precision, fast, non-destructive, and suitable for various coatings and substrates.
• Beta Backscatter Method: Measures the intensity of beta radiation scattered back from the sample to determine coating thickness. Suitable for thin coatings and simple operation.
• Capacitance Method: Measures the change in capacitance between the coating and substrate to determine thickness. Suitable for non-conductive coatings and simple operation.
• Magnetic Measurement Method: Measures the effect of a non-magnetic coating on a magnetic substrate using magnetic fields to determine thickness. High precision and suitable for non-magnetic coatings on ferromagnetic substrates.
• Eddy Current Measurement Method: Uses eddy current sensors to measure the impedance change caused by the coating on a conductive substrate to determine thickness. High precision and simple operation, suitable for non-conductive coatings on conductive substrates.
• Development and Application of X-ray Coating Thickness Analyzers

With technological advancements, particularly the introduction of microcomputer technology, X-ray coating thickness analyzers have seen significant developments in the following areas:

• Miniaturization and Intelligence: Modern X-ray coating thickness analyzers are smaller and more powerful. The introduction of microcomputer technology makes the operation more intelligent and user-friendly.
• Multifunctionality and High Precision: The instruments are more versatile, not only measuring coating thickness but also performing quantitative analysis of various elements. Measurement resolution has reached 0.1 microns, with an accuracy of up to 1%, greatly improving measurement accuracy.
• Practicality: X-ray coating thickness analyzers are widely applicable, with a broad measurement range, simple operation, and relatively low cost, making them widely used in industry and research.

Industrial X-ray coating thickness analyzers, with their rapid, non-destructive, on-site measurement capabilities, are widely used in various fields, including:

• Metallurgy: Used to detect the coating thickness on metal surfaces, ensuring product quality and corrosion resistance.
• Building Materials: Measures the coating thickness on construction materials to ensure protective performance.
• Geology: Analyzes the coating on mineral samples, aiding geological research and resource exploration.
• Environmental Protection: Detects the anti-corrosion coating on environmental equipment to ensure durability in harsh environments.
• Trade Inspection: Used for inspecting import and export goods to ensure compliance with international standards.
• Archaeology: Analyzes protective coatings on artifacts, aiding in the preservation and restoration of cultural heritage.
• Medical Field: Measures the coating on medical devices to ensure compliance with hygiene standards.

Conclusion

As technology advances, especially with the introduction of microcomputer technology, X-ray coating thickness analyzers have developed towards miniaturization, intelligence, multifunctionality, and high precision. Their broad application range and significant advantages make them widely used in industry and research. In the future, as technology continues to progress, X-ray coating thickness analyzers will play an increasingly important role in more fields, driving advancements in industrial measurement technology.
