Questions and answers to the colorimeter

Colorimeters are widely used in printing, painting, plastic, textile, automobile and food industries.
Color deviation has become a difficult problem in color printing, textile and paint industries, and the use of colorimeter detection can make color data quantitative, which is conducive to data exchange with customers or enterprises. The built-in light source of the color difference instrument irradiates the sample, collects the reflected light on the sample surface, and detects the RGB component of the color in the reflected light through the RGB detector, so as to calculate the LAB and color difference value of the color.

When the colorimeter is used to monitor the color difference of printing, it can basically play a monitoring effect, better reflect the psychological and physiological laws of color vision, provide more detailed color information, and play a good role in promoting the management of printing color.

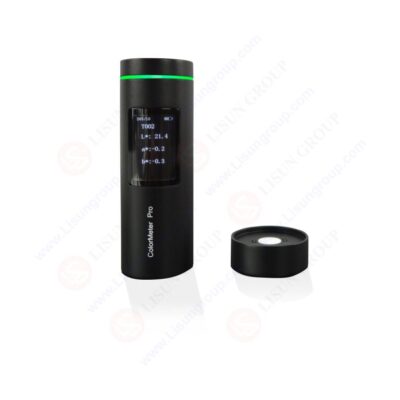

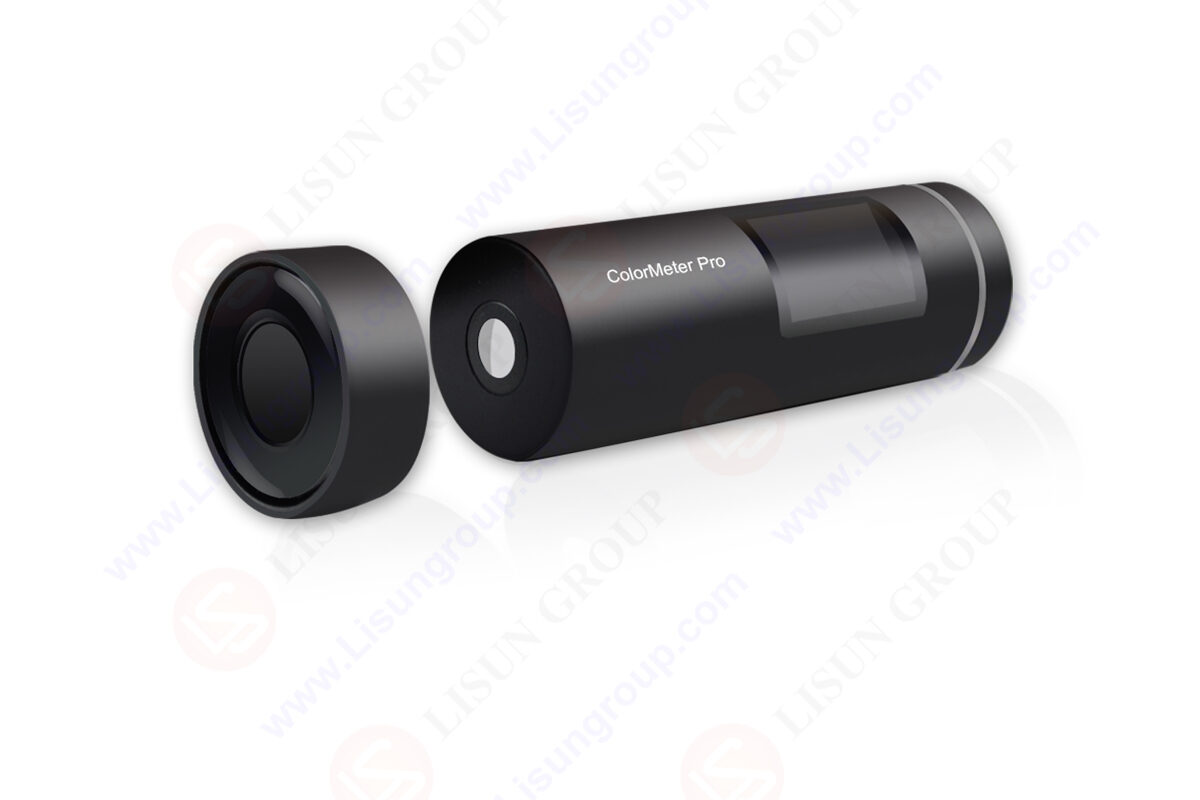

CD-320PRO Detail Pictures

Questions and answers to the colorimeter:
Q1: What should I do if the colorimeter cannot be turned on when the battery is used for power supply?
A1: ①. If this phenomenon occurs, it means that the battery power is insufficient and the colorimeter needs to be powered; (Plug in the power adapter or replace the battery)

Charging port

② . If not, you can unplug the power adapter and plug it in again to check whether it can be turned on, or plug and unplug the power adapter several times.
③ . If the above methods are not available, replace the battery.

Q2: What should I do if the results measured by the colorimeter are abnormal?
A2: ① This situation is generally caused by the lack of black-and-white correction or inaccurate black-and-white correction, so it is necessary to carry out black-and-white correction first.
② . Dirty objects entering the measuring port will also cause inaccurate measurement. It is better to check before measurement;
③ . Check whether the battery consumption is too low (less than 20%), replace it with a new dry battery or use DC power supply.
④ Check whether the instrument and test object are stable during measurement, and whether the contact between the measuring port and the measuring surface is tight and good
⑤ Check whether the measured object is too thin and light leakage
⑥ Check whether the measured part is mixed
⑦ If the measurement results are still zero after the black and white board correction, it can be judged that the instrument is broken.

Q3: What should I pay attention to when using the colorimeter?
A3: ① This instrument is a precision measuring instrument. During the measurement, the drastic changes in the external environment of the instrument should be avoided, such as the flicker of ambient light should be avoided during the measurement.
② This instrument is not waterproof and cannot be used in high humidity environment or water mist.
③ . Keep the instrument clean, avoid water, dust and other liquid, powder or solid foreign matters entering the measuring caliber and inside the instrument, and avoid the impact and collision of the instrument.
④ If the instrument is not used for a long time, remove the battery.
⑤ The power adapter other than the company’s special power adapter cannot be used, otherwise the instrument may be burned.
⑥ After the instrument is used, put the colorimeter and whiteboard cover into the instrument box and keep it properly.
⑦ The instrument should be stored in a dry, cool and environment. To avoid damage to the instrument.

Portable Colorimeter/Chroma Meter is an innovation color measuring tool with powerful configuration to make color measurement easier and more professional; It support Bluetooth to connect with Android and ISO devices, Portable Colorimeter/Chroma Meter will take you into a new world of color management; It can be widely used to measure color value, color difference value and find similar color from color cards for printing industry, paint industry, textile industry, etc.

CD-320PRO_Portable Colorimeter/Chroma Meter
