Salt Spray Testing for Protective Coatings: Assessing Durability and Performance

Introduction
Coatings designed specifically to protect surfaces from things like corrosion, wear, and environmental degradation are invaluable. Salt spray testing has become an important means of evaluating products to assure their longevity and functionality.

This article delves into the relevance of salt spray testing and how it evaluates the durability and efficacy of protective coatings under severe conditions. Coatings’ resistance to corrosion and preservation of their protective characteristics over time may be evaluated by exposing them to a corrosive saltwater mist in this test.

Understanding Salt Spray Testing
Salt spray testing, also known as salt fog testing or ASTM B117 testing, is used by a variety of industries in order to determine the degree to which protective coatings are effective. In order to replicate severe corrosive conditions, coated samples are put through a controlled experiment in which they are exposed to a saline mist.

The performance of a coating is tested and assessed over varied durations of time, taking into consideration a number of factors including the intended usage of the coating as well as the relevant industry criteria.

Assessing Corrosion Resistance
Salt spray testing is one method that may be used to quantitatively assess the corrosion resistance of a coating. In this experiment, the coating’s resistance to rust and other types of degradation produced by exposure to saltwater mist is tested.

Rust is only one kind of deterioration. By exposing coated samples to a controlled salt spray environment, corrosion signs such as blistering, the formation of rust, and color changes may be studied. The duration of the test may be used to estimate both the severity of the corrosive conditions and the coating’s ability to withstand long-term exposure.

Evaluating Coating Adhesion
The resilience of protective coatings against corrosion and their ability to adhere are both evaluated by salt spray testing. The ability of coatings to adhere to the surfaces they are applied to is critical to their capacity to remain in place and to provide protection.

Throughout the whole of the examination, we check for signs of flaking, peeling, and blistering on the coating. The data shown here indicates both the coating’s resilience to corrosion and its strength as an adhesive.

Testing Coating Performance in Harsh Environments
Salt spray testing for coatings is designed to simulate the corrosive and abrasive conditions that are seen in harsh environments. This kind of testing is helpful for measuring the coating’s endurance in environments with high concentrations of saltwater, humidity, and air pollutants, such as coastal areas, chemical plants, and industrial settings.

Specifically, this testing method is beneficial for determining how well the coating will perform in these types of environments. The capacity of coatings to survive corrosion may be evaluated in a controlled salt spray chamber.

This gives manufacturers the opportunity to ensure that their products are up to snuff in terms of performance and will stand the test of time when they are put to use in the real world.

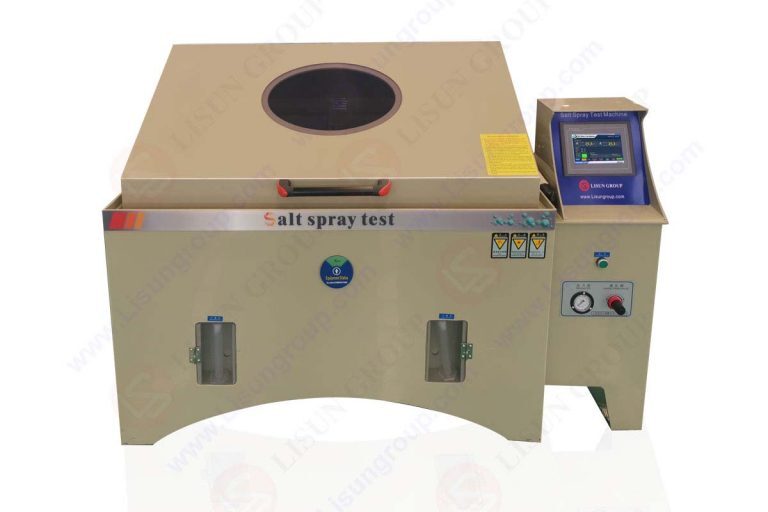

Figure: Salt spray test chamber

Influence on Coating Development and Selection
With the use of salt spray testing, the efficacy of protective coatings may be significantly increased. By putting several coatings through salt spray testing, manufacturers may identify which coating composition and application technique is most suitable for a certain application.

As a result of the results of the tests, coating formulations might be improved, application techniques could be made more efficient, and quality assurance could be accomplished regarding the durability and corrosion resistance of coatings.

Importance of Testing Standards and Parameters
For salt spray testing to provide accurate and trustworthy findings, strict adherence to testing standards and careful control of test parameters are absolutely necessary. In order to ensure uniformity and consistency in salt spray testing, organizations such as ASTM International and ISO have developed guidelines and standards such as ASTM B117 and ISO 9227.

Accurate management of test parameters such as test time, temperature, and humidity, as well as solution concentration, are essential for producing meaningful and comparable results across different testing facilities.

Limitations and Supplemental Testing Methods
When performing salt spray testing to determine how resistant protective coatings are to corrosion and how long they will last, there are numerous limitations that must be taken into consideration. The major objective of salt spray testing is to assess how well a coating can survive the corrosive effects of being exposed to an environment that is high in saltwater mist.

The performance of coatings is very susceptible to environmental factors such as temperature, ultraviolet radiation, mechanical stress, and chemical exposures; all of these factors may change greatly under real-world conditions.

As a consequence of this, other testing methods that simulate specific environmental conditions that are pertinent to the application that is planned should be used in combination with salt spray testing.

Supplemental testing methods may include:
UV Exposure Testing: As coatings that are exposed to ultraviolet radiation, which is prevalent in outdoor settings, have the potential to deteriorate over time and lose their original color, this test evaluates how well they stand up under these conditions. LISUN provides one of the best salt spray test chambers.

Cyclic Testing: Samples that have been coated go through a process called cyclic testing, in which they are put through a range of ordeals in succession, such as being subjected to salt spray, then high humidity, then temperature variations, or even mechanical stress. This method replicates the conditions that are encountered in the actual world, which provides a more accurate evaluation of the coating’s performance.

Immersion Testing: In order to simulate circumstances that could be encountered in the real world, samples with protective coatings are immersed in corrosive chemicals or solutions during the immersion testing phase. This method analyzes how resistant the coating is to degradation and corrosion brought on by chemical agents.

Accelerated Weathering Testing: During accelerated weathering testing, specialized chambers are used in order to simulate a variety of environmental conditions, including temperature, humidity, ultraviolet radiation exposure, and wetness. With the aid of this method, which provides an accelerated aging environment, the long-term performance of coatings may be tested in a shorter period of time.

Field Exposure Testing: Samples that have been coated are then field-exposed for extended periods of time in settings that are representative of the actual world. This method takes into consideration all of the environmental factors and variations that might have an effect on coating performance in a particular application. As a result, it provides reliable data on the performance of coatings.

Conclusion
Testing with salt spray is a very helpful resource for determining whether or not protective coatings will be effective over time and how long they will last. Anyone who is even somewhat interested in the resistance to corrosion, adhesion, or performance under harsh circumstances absolutely has to read this article.

Because salt spray testing has its limitations, it is essential to supplement it with additional testing methods that imitate the environment in which the product will be utilized. By combining a number of different testing procedures, manufacturers may get a deeper comprehension of coating performance and be better equipped to make informed decisions about the formulation, selection, and application of coatings.

Because of the all-encompassing nature of this procedure, you can be certain that the protective coatings you use will withstand corrosion for a significant amount of time and last for years.
