Streamlining Safety: The Power of Automatic Safety Test Systems

Introduction
In today’s lightning-fast technological environment, the need of taking precautions to ensure the safety and reliability of all electrical tools and pieces of equipment cannot be stressed. As a result of this, an increasing number of organizations and manufacturers are making investments in automated safety test systems in order to enhance the quality of their products and save time during the testing process.

This article about automatic safety test systems covers a variety of subjects, some of which include the Withstand Voltage Test (AC/DC), Insulation Resistance Test (IR), Leakage Current Test (LLC), Grounding Resistance Test (GR), and Power Test. These are only a sampling of the material covered. Using cutting-edge technologies like these, businesses may meet stringent safety regulations, reduce risks, and win back the trust of their customers.

Withstand Voltage Test (AC/DC)
Automated safety test systems do something that is referred to as a Withstand Voltage Test, which is also known as a Dielectric Strength Test. This test is considered to be one of the most essential aspects of the system.

It evaluates whether or not a certain piece of electronic equipment can be exposed to dangerously high voltage levels before it fails or suffers insulation failure. This is done so that the equipment may be used safely.

By subjecting the item in question to an AC and DC voltage for a certain length of time, one may be able to identify any potential insulation and design flaws that may exist. Both an excessive flow of current and a breakdown of the insulation, for instance, are indicators of a potentially hazardous situation.

When performing the Withstand Voltage Test, employing an automated safety test system has a number of advantages that users may take advantage of. They provide accurate voltage generation, precise measurements, and reliable criteria for determining if something is successful or not.

These systems make use of pre-programmed test sequences and complex algorithms in order to speed up the testing process. In addition to this, they provide comprehensive test data that manufacturers may utilize to demonstrate compliance with all relevant safety regulations.

Insulation Resistance Test (IR)
Insulation in electric equipment and machinery is put to the Insulation Resistance Test in order to determine how effective it is. It is used in the process of determining the efficacy of insulation on conductive components.

Automatic safety test systems may assess the quality of the insulation by sending out a high-voltage DC signal and measuring the leakage current. This is done in order to determine the quality of the insulation. LISUN has the best automatic safety test systems.

When it comes to assessing insulation resistance, using automated safety inspection systems offers a variety of benefits that cannot be ignored. Because of the automation that these technologies make possible, measuring manually, which is laborious and takes a lot of time, is now completely unnecessary. They provide reliable measurements, which enables an accurate evaluation of the insulation’s overall quality. In addition, automated safety test systems may record the values of insulating resistance in detailed reports that may be used to the assessment of compliance as well as quality control.

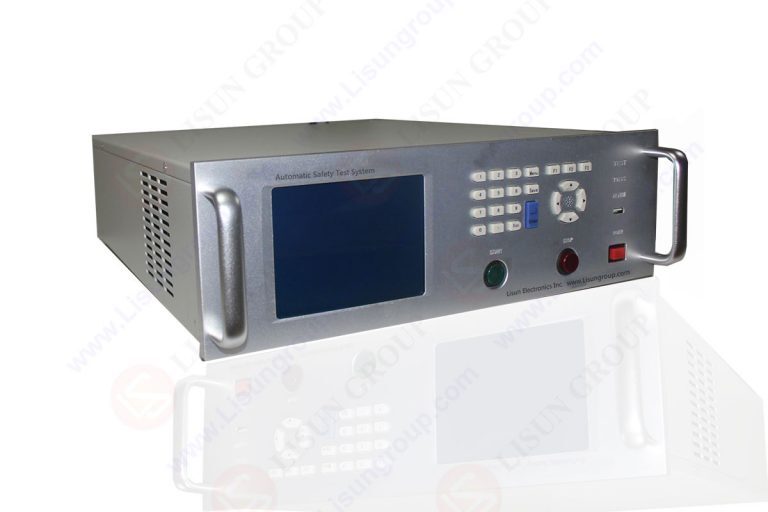

Figure: Automatic safety test systems

Leakage Current Test (LLC)
The Leakage Current Test is an important test that is carried out by automatic safety test systems. This test determines the amount of current that is escaping from a piece of electrical equipment or machinery and is known as the Leakage Current Test. A significant quantity of leakage current poses a danger in the form of electric shocks as well as the potential for the instrument to become inoperable.

By applying a fixed voltage to the device under test and monitoring the current flowing via its protective ground connection, automatic safety test systems have the potential to identify leakage problems. It is possible to carry out this task in order to determine whether or not the system is operating effectively.

When it comes to conducting the Leakage Current Test, using an automated safety test system provides the user with a number of benefits that are very beneficial to them. They offer precise current monitoring, which makes it easy to spot even the slightest amounts of leaking current. The very sophisticated algorithmic frameworks that are included into these systems make it feasible to gain findings upon which one may depend.

They were able to boost the repeatability of the test as well as reduce the amount of human error by automating the testing procedure. The extensive data that is produced by automatic safety test systems not only helps with the documentation of compliance, but it also makes it easier to find design faults and manufacturing difficulties, which is an additional advantage of using these kinds of systems.

Grounding Resistance Test (GR)
The Grounding Resistance Test is a form of automated safety test that is used by automated safety systems to assess the quality and efficacy of the grounding system in electronic devices or equipment. These devices or equipment may be things like computers or other types of electronic devices. Both the dissipation of electrical faults and the protection against electric shocks need a grounding system that is in proper operating condition. This is important for both purposes.

One approach for establishing whether or not a device has the capacity to make a safe ground connection is to measure the resistance that is present between the protected earth terminal and a known reference point. LISUN has the best automatic safety test system.

When it comes to conducting the Grounding Resistance Test, the use of an automated safety test system provides the user with a number of benefits that are very advantageous. They give a precise measurement of the resistance, which is required in order to guarantee that the grounding system is functioning properly. These systems make use of innovative testing procedures, such as the three-pole or four-pole technique, in order to bring the number of measurement mistakes down to a level that is more tolerable.

They have the potential to increase both productivity and reliability by automating the testing technique, while also minimizing the number of mistakes that may be produced by human error. Additionally, automated safety testing systems give complete results, which may be utilized for validating compliance or pinpointing the underlying cause of a grounding problem. Data analysis is a useful tool for achieving this goal.

Conclusion
The proliferation of automatic safety test systems has fundamentally altered the way in which electronic equipment and machinery are evaluated in terms of their level of dependability and security.

The AC/DC Withstand Voltage Test, Insulation Resistance Test, Leakage Current Test, Grounding Resistance Test, and Power Test are just some of the characteristics that allow these systems to provide accuracy, efficiency, and reliability that are unmatched by any other. Automated safety testing solutions assist manufacturers in meeting regulatory standards, lowering risk to employees and customers, and earning the confidence of consumers.

The process of testing may be automated, which has a few advantages, including a decrease in the number of errors caused by humans, the creation of comprehensive findings, and the convenience of compliance paperwork. Automated safety testing systems will play an increasingly significant part in the future of technology, contributing to the simplification of safety testing and driving innovation across a wide variety of industries.
