Technical parameters of IPX9K High Temperature Pressure Jet Waterproof Test Chamber

IPX9K High Temperature Pressure Jet Waterproof Test Chamber is mainly used for passenger cars, buses, tractors, motorcycles and other vehicles as well as their parts. It tests the physical and other related properties of products under the cleaning process conditions of high-pressure/steam jet cleaning. After the test, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification and delivery inspection of the product.

1. IPX9K High Temperature Pressure Jet Waterproof Test Chamber is applicable to IPX9K waterproof grade test of products;
2. The shell of IPX9K waterproof grade testing machine is made of domestic steel plate, and the surface is sprayed with baking paint, which is beautiful and durable;
3. The inner chamber and turntable of IPX9K High Temperature Pressure Jet Waterproof Test Chamber are all made of SUS304 # stainless steel plate to ensure that they will not rust after long use;
4. IPX9K High Temperature Pressure Jet Waterproof Test Chamber-type structure; Self-contained water tank, circulating water; Automatic control of water inflow and low water level alarm detection can effectively prevent water pump from being damaged due to water shortage;
5. There is a transparent observation window (made of tempered glass) on the door, and an LED lamp is installed in the box to facilitate the observation of the internal test;
6. Four fan-shaped nozzles are uniformly distributed in the right side of the box within 90 ° vertically, and are designed and manufactured in strict accordance with the standard;
7. Turntable drive: domestic high-quality stepping motor is used, the speed can be set (adjustable) on the touch screen, and it is accurate and stepless adjustable within the standard range;
8. The test chamber is imported from Italy, which is resistant to high temperature and high pressure, can be used for a long time, and has stable performance;
9. The test time can be set on the touch screen, and the setting range is 0-999min (adjustable);
10. The core control system adopts 7-inch touch screen+Panasonic PLC, and the electrical components adopt imported brands such as LS, Omron, etc. The wiring process meets the requirements of national standards, the panel layout is reasonable, the wiring is firm, and the marking is clear.

How does the IPX9 High Temperature Pressure Jet Waterproof Test Chamber operate during the experiment?
1. Please place the sample on the sample turntable of IPX9 High Temperature Pressure Jet Waterproof Test Chamber, so that the sample is at the center of the table;
2. Adjust the distance between the sample and the 90 ° nozzle: turn counterclockwise to loosen the lower screw buckle (tighten clockwise), and then directly turn the table top (lower clockwise and higher counterclockwise) to make the sample reach the standard distance from the top nozzle (125 ± 25mm, measured with a steel ruler), and then tighten the screw thread;
3. Adjust the distance between the sample and the 30 °/60 ° nozzle: turn the knob at the right end of the bracket to make the distance between the nozzle and the sample 125 ± 25mm, (clockwise close, counterclockwise far);
4. Adjust the distance between the sample and the 0 ° nozzle: turn the knob under the bracket to make the 0 ° nozzle align with the center of the sample (lower clockwise, higher counterclockwise);
5. Enter the “test parameters” interface, and input various test parameters: spray time (30 seconds), spray interval (10 seconds), temperature setting (80 ℃), turntable speed (5r/min), and actual power-on and power-off time;
6. Open the water tank cover and reconfirm that the IPX9 waterproof test Shedel water tank has been filled with water; Or click the “water filling switch” to start the test when the water full alarm prompt appears;
7. Return to the main interface, click “heating switch” and wait for the water temperature to rise to 80 ℃ (heating time is about 30min);
8. Click “Test Start” to officially start the test. Please note that during the test, please protect the “heating switch” key to keep the water temperature in the standard state;
9. When the test time is up, the IPX9 High Temperature Pressure Jet Waterproof Test Chamber automatically stops the test and displays the alarm interface after the test is completed. Then, please open the door slightly (do not open the door all at once to prevent skin scalding by high temperature steam);
10. Remove the sample, turn off the “heating switch” key, and turn off the power supply of IPX9 High Temperature Pressure Jet Waterproof Test Chamber; If the next test is to be carried out, you need to click the “Reset” button to reset the previous test data.

LISUN lauched JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9，GB7000.1，ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.

The both interior and exterior material of this chamber is high quality stainless steel, big glass observation window and elegant appearance. The turntable and spray lance adopt imported motor, and the rotation speed is adjustable.

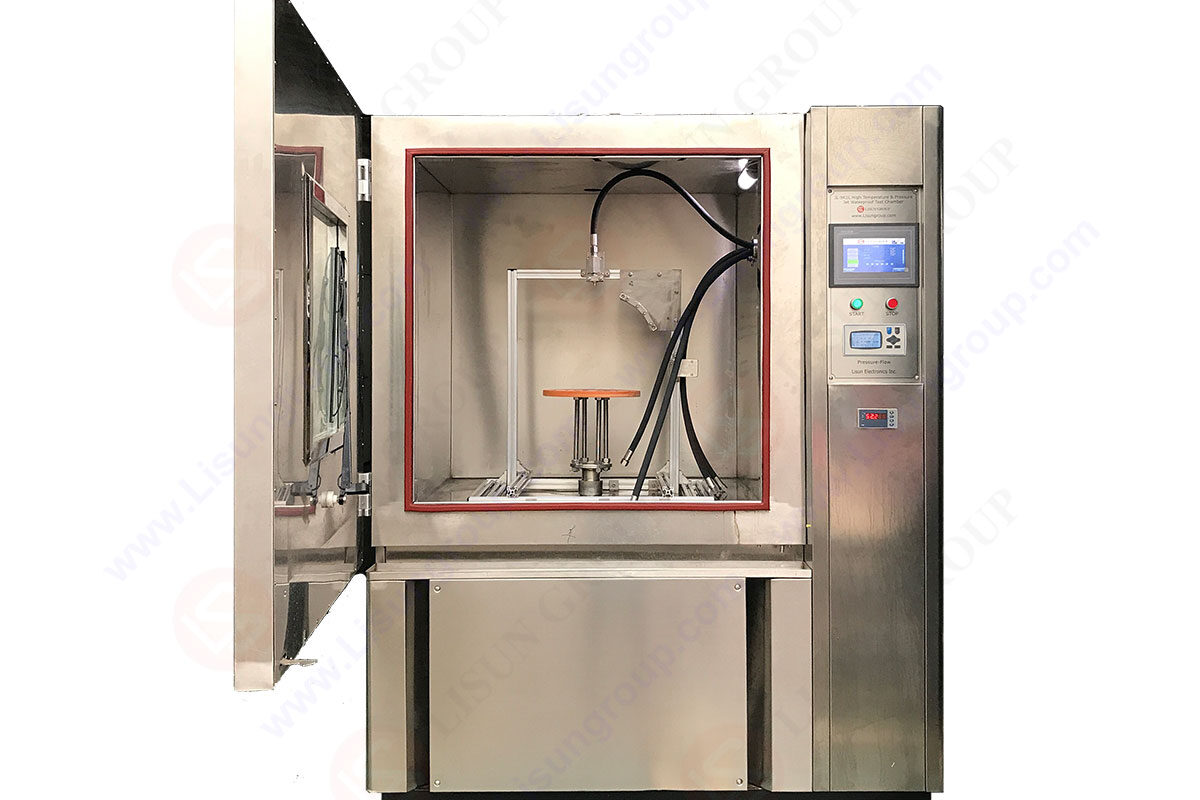

JL-9K1L High Temperature Pressure Jet Waterproof Test Chamber
