Testing Flammability, Ignition Temperature, Combustibility, and Flame Index of Lighting Devices, Electronics, and Household Appliances Using Glow Wire Equipment

Abstract
In the modern world, the safety of electrical and electronic products, as well as household appliances, has become a critical concern due to the potential fire risks they pose. The evaluation of the flammability, ignition temperature, combustibility, and flame index of materials used in these products is essential to ensure consumer safety. One of the key methods used for testing the fire resistance of materials is the glow wire test, performed using glow wire equipment. This paper discusses the use of the LISUN ZRS-3H Glow-wire Test Apparatus, a leading glow wire test equipment, to assess the flammability and combustion properties of lighting devices, electronics, and household appliances. Detailed information on the testing procedures, data, and equipment specifications is provided.

Introduction
The widespread use of electrical products in lighting, electronics, and household appliances has raised significant concerns regarding their fire safety. Improperly designed materials or faulty equipment can easily cause electrical fires, especially when exposed to high temperatures. To mitigate these risks, it is essential to evaluate the ignition temperature, flammability, and combustibility of the materials used in these devices. Glow wire equipment, specifically the LISUN ZRS-3H Glow-wire Test Apparatus, is an indispensable tool used for this purpose. This equipment helps simulate the conditions under which materials may ignite or catch fire when exposed to a high-temperature source.

This article provides an in-depth look at the glow wire test method, the LISUN ZRS-3H apparatus, and its application in assessing lighting devices, electronics, and household appliances. The following sections will discuss the principles of the glow wire test, the features of the LISUN ZRS-3H apparatus, and a practical example of the test data for various materials.

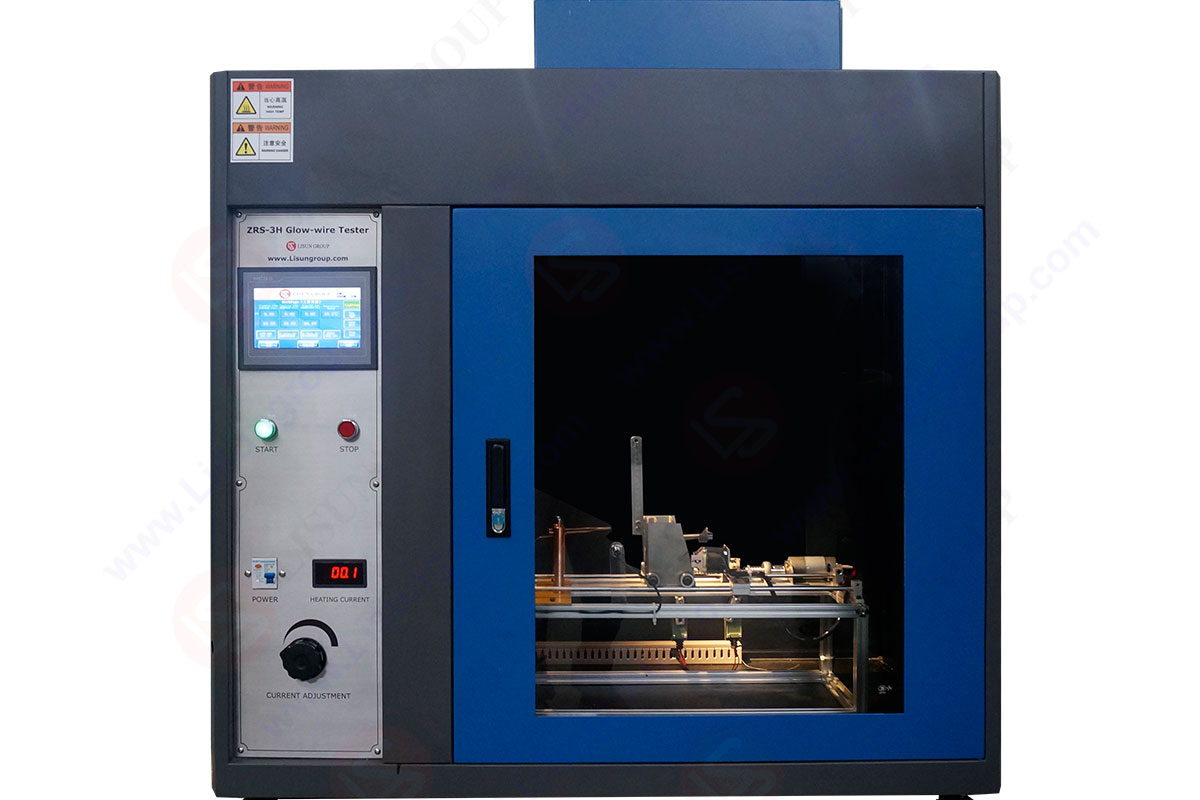

ZRS-3H Glow-wire Test Apparatus

Glow Wire Test Method
The glow wire test is a standard method used to evaluate the fire hazards of materials exposed to high temperatures. This test involves using a heated wire, typically made from a nickel-chromium alloy, to simulate the effect of a heat source that might cause ignition. The wire is heated to a predefined temperature and then applied to the test sample for a specified duration and pressure. The purpose of this test is to determine whether the material ignites, and if it does, to evaluate its combustion characteristics, including the time to ignition, the duration of burning, and the after-effects of the fire.

The key parameters of the glow wire test include:

• Test temperature: Typically set between 500°C and 960°C.
• Contact time: The time for which the heated wire is applied to the material, usually between 30 and 60 seconds.
• Contact pressure: The force with which the wire is pressed onto the material, typically 0.95 N.
VObservation period: The duration during which the material is observed to determine if it ignites, sustains combustion, or self-extinguishes.

By analyzing these factors, manufacturers can determine the fire risk of their products and materials, ensuring they meet safety standards and regulations.

LISUN ZRS-3H Glow-wire Test Apparatus
The LISUN ZRS-3H Glow-wire Test Apparatus is a sophisticated device used to perform glow wire tests on various materials, including those used in lighting devices, electronics, and household appliances. This apparatus is widely regarded for its accuracy, ease of use, and compliance with international safety standards, such as IEC 60695-2-1, IEC 60695-2-11, UL 746A, and others.

Key Features:
• Temperature Range: The temperature of the glow wire can be adjusted between 25°C and 1100°C, with an accuracy of ±1°C.
• Test Time Control: The device can be set to control the exposure time of the sample to the heated wire, allowing for testing in the range of 0.1 to 999.9 seconds.
• Ignition Time Monitoring: The device can record the time to ignition and the duration of the flame, providing detailed information for analysis.
• High-Precision Thermocouple: A K-type thermocouple is used to measure the temperature of the wire, ensuring accurate and consistent results.
• Automatic Flame Extinction Detection: The apparatus can automatically detect when the flame has extinguished, reducing the need for manual observation.

The LISUN ZRS-3H is designed for high-precision testing of plastics, insulation materials, and electrical components in accordance with global safety standards.

Application of Glow Wire Test in Lighting Devices, Electronics, and Household Appliances
The primary purpose of using glow wire equipment in testing lighting devices, electronics, and household appliances is to assess the materials’ resistance to ignition and combustion when subjected to a heat source. This is especially important for products that have electrical components or plastic materials which may become a fire hazard under certain conditions.

• Lighting Devices:
In lighting products, such as lamps and light bulbs, the materials surrounding electrical components need to resist ignition. Glow wire tests can simulate the conditions in which a short circuit or malfunction might occur, causing the surrounding materials to heat up and potentially catch fire. Testing these materials ensures that lighting devices meet safety standards and do not pose a fire risk to consumers.

• Electronics:
Electronics, including circuit boards, wires, and casings, are often made from flammable plastics and polymers. Glow wire testing is used to evaluate the ignition and combustibility of these components. This helps to ensure that electronics, such as televisions, computers, and smartphones, do not pose a fire hazard if internal components fail or overheat.

• Household Appliances:
Household appliances like toasters, microwaves, and washing machines have electrical circuits and heating elements that generate heat. Glow wire testing evaluates the fire resistance of materials used in these appliances, ensuring that the products can operate safely without causing fires due to overheating or malfunctioning parts.

Sample Data from LISUN ZRS-3H Testing
The following table presents sample test data obtained from the LISUN ZRS-3H Glow-wire Test Apparatus. This data highlights the flammability and combustion characteristics of various materials used in lighting devices, electronics, and household appliances.

Conclusion
Glow wire testing, using advanced equipment like the LISUN ZRS-3H Glow-wire Test Apparatus, plays a crucial role in evaluating the fire resistance of materials used in lighting devices, electronics, and household appliances. By assessing the ignition temperature, combustibility, and flame index of various materials, manufacturers can ensure that their products meet safety standards, protecting consumers from potential fire hazards. The data from these tests not only help in compliance with regulations but also contribute to the development of safer products in the electrical and electronics industry.

The LISUN ZRS-3H offers a reliable and efficient means of performing these tests, providing detailed data that manufacturers can use to improve the fire safety of their products. With the increasing use of electrical appliances in everyday life, the importance of such testing cannot be overstated in ensuring public safety and reducing the risk of electrical fires.
