The difference between HBM/MM ESD Simulator for IC testing and IEC61000-4-2 electrostatic discharge generator

1. Differences in application areas
ESD61000-2 Electrostatic discharge generator is fully compliant with IEC/EN 61000-4-2, GB/T 17626.2 standards and belongs to the category of electromagnetic compatibility. The test object is a device that can work independently, such as LED lamps, and the device is in normal working condition.

ESD-883D HBM/MM ESD Simulators fully complies with GJB548A-96 method 3015, national military standard GJB128A-97 method 1020, MIL-STD-883D, EIAJED-4701, ANSI/ESD STM5.1, ANSI/ESD STM5.2, EIA /JESD22-A114-B, EIA/JESD22-A115-A, applied to the ESD tolerance test of semiconductor components, the test object is semiconductor components such as IC, etc., to test their ability to withstand ESD during storage, transportation, and assembly.

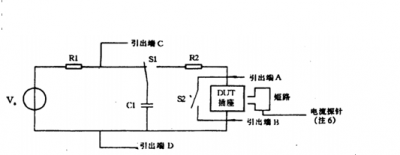

2. Differences in generator principle

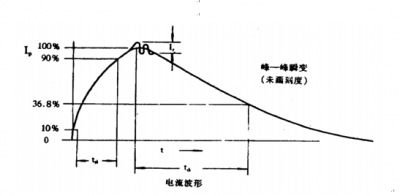

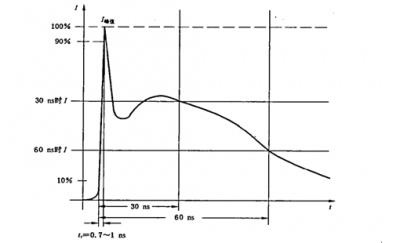

3. The difference of the discharge waveform

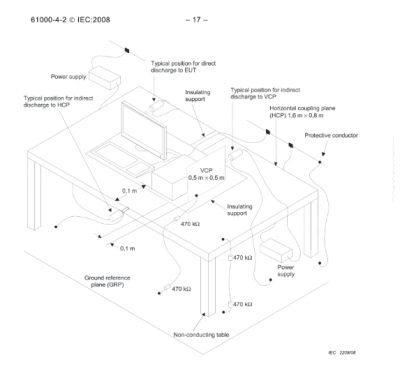

4. Differences in test methods

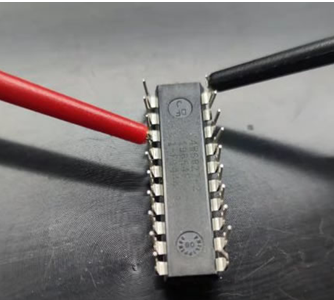

For HBM testing without a discharge gun, use a pair of clips or probes to directly connect the chip pins. The picture shows the situation of testing DIP packaged chips.

5. CNAS measurement calibration difference of China Metrology Institute

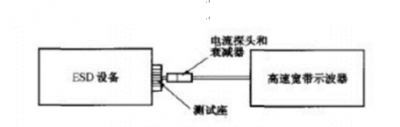

ESD-883D uses a high-frequency current transformer to directly measure the output short-circuit current waveform. Measurement specification: JJF 1238-2010 Integrated Circuit electrostatic discharge sensitivity test equipment calibration specification.
