The Importance of IPX9K High Temperature Pressure Jet Waterproof Test Chamber in Product Development and Quality Control

IPX9K High Temperature Pressure Jet Waterproof Test Chamber is a test equipment specially used to simulate extreme environmental conditions in industries such as automobiles, aerospace and ships.
The test chamber has the characteristics of high temperature, high pressure, high humidity, etc., and can simulate working conditions in extreme weather and harsh environments to ensure product quality and reliability.

1. The high temperature characteristic of the IPX9K High Temperature Pressure Jet Waterproof Test Chamber is its most notable feature. The temperature inside the test chamber can be controlled within the range of -40°C to +80°C, which can very realistically simulate the working environment under various weather conditions, such as high temperature, low temperature, freezing, extreme cold, etc., to ensure that the test products can be tested in different environments down stability. These features enable the device to meet the testing needs of many different types of devices.

2. High pressure spray is also an important function of IPX9K High Temperature Pressure Jet Waterproof Test Chamber. The test chamber adopts a high-pressure pump and nozzle design. The internal high-pressure pump can generate high-pressure water flow up to 100bar, and can provide up to 100 water spray columns, spraying 12.5 liters of water per second, and the spray distance can reach about 3-5 rice. The surface of the product can be exposed to high-pressure water flow in a short period of time to test its waterproof and dustproof performance.

3. The IPX9K High Temperature Pressure Jet Waterproof Test Chamber also has the characteristics of high humidity and small particles, so that the harsh working environment can be more realistically simulated during product testing, so as to test the reliability and durability of the product.

To sum up, the IPX9K High Temperature Pressure Jet Waterproof Test Chamber is an important test equipment for modern enterprises, which can reliably evaluate the waterproof performance of different types of equipment, and provide efficient, reliable and environmentally friendly testing services for enterprises in production, R&D and manufacturing industries. To ensure product quality and reliability.

Features of ipx9k High Temperature Pressure Jet Waterproof Test Chamber:
1. The ipx9k High Temperature Pressure Jet Waterproof Test Chamber is suitable for the product IPX9K waterproof level test.
2. The shell is made of steel plate, and the surface is sprayed with silver-gray baking paint, which is beautiful and durable.

3. The turntable is all made of SUS 304# stainless steel plate to ensure long-term use without rust.
4. Open structure; it also has its own water tank, which cannot recycle water; it automatically controls water intake.

5. Four fan-shaped nozzles are designed and manufactured in strict accordance with the standard at a vertical 90° in the middle of the chamber.
6. Rotational drive: Using a stepper motor, the speed can be set on the touch screen (adjustable), and can be adjusted within the standard range.

7. The ipx9k High Temperature Pressure Jet Waterproof Test Chamber adopts the original Italian imported water pump, which is resistant to high temperature and high pressure, can be used for a long time, and has stable performance.

8. The test time can be set on the touch screen, the setting range is: 0-999min (adjustable).
During the test, the equipment needs to go through a series of test items, including spray angle, spray distance, spray time, etc. At the same time, the surface of the equipment needs to be inspected to ensure that the equipment is intact and free of leakage.

If the equipment passes the test, it proves that it has good waterproof performance, otherwise it needs to be redesigned or improved, which can provide safer and more reliable products for various industries.

JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9，GB7000.1，ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.

The both interior and exterior material of this chamber is high quality stainless steel, big glass observation window and elegant appearance. The turntable and spray lance adopt imported motor, and the rotation speed is adjustable.

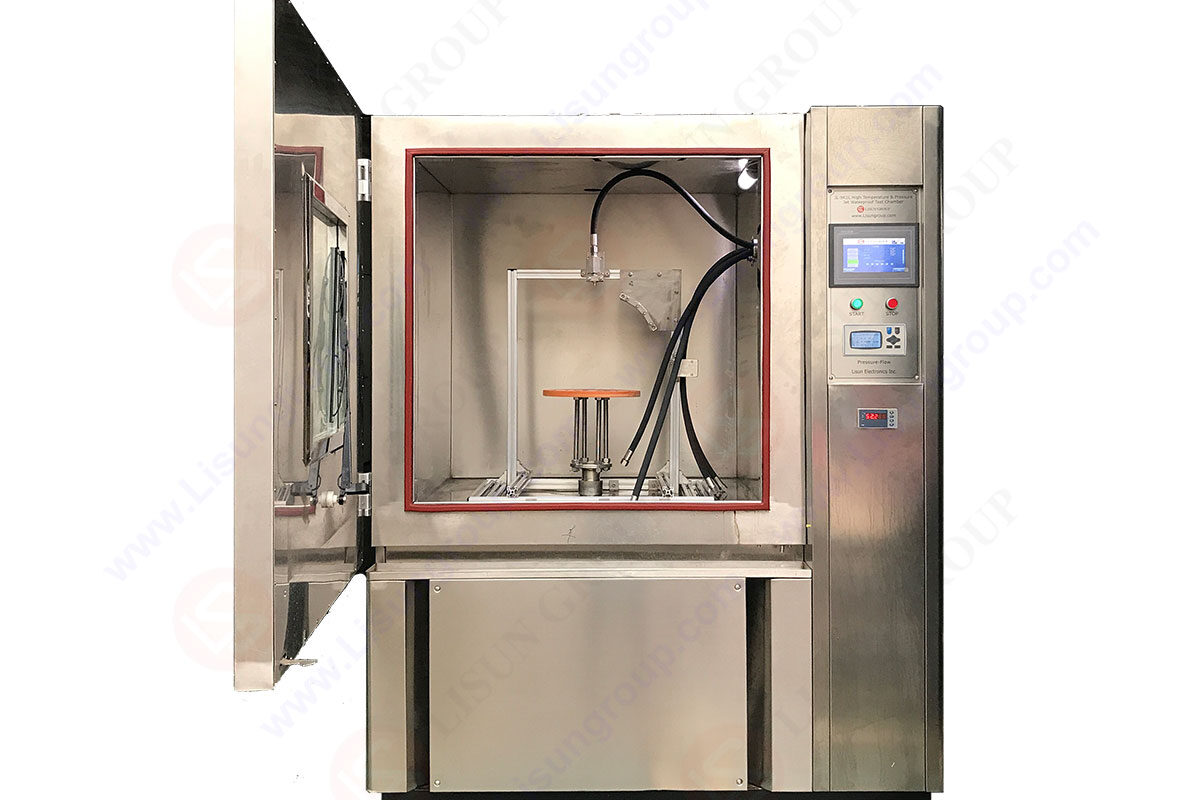

JL-9K1L High Temperature Pressure Jet Waterproof Test Chamber
