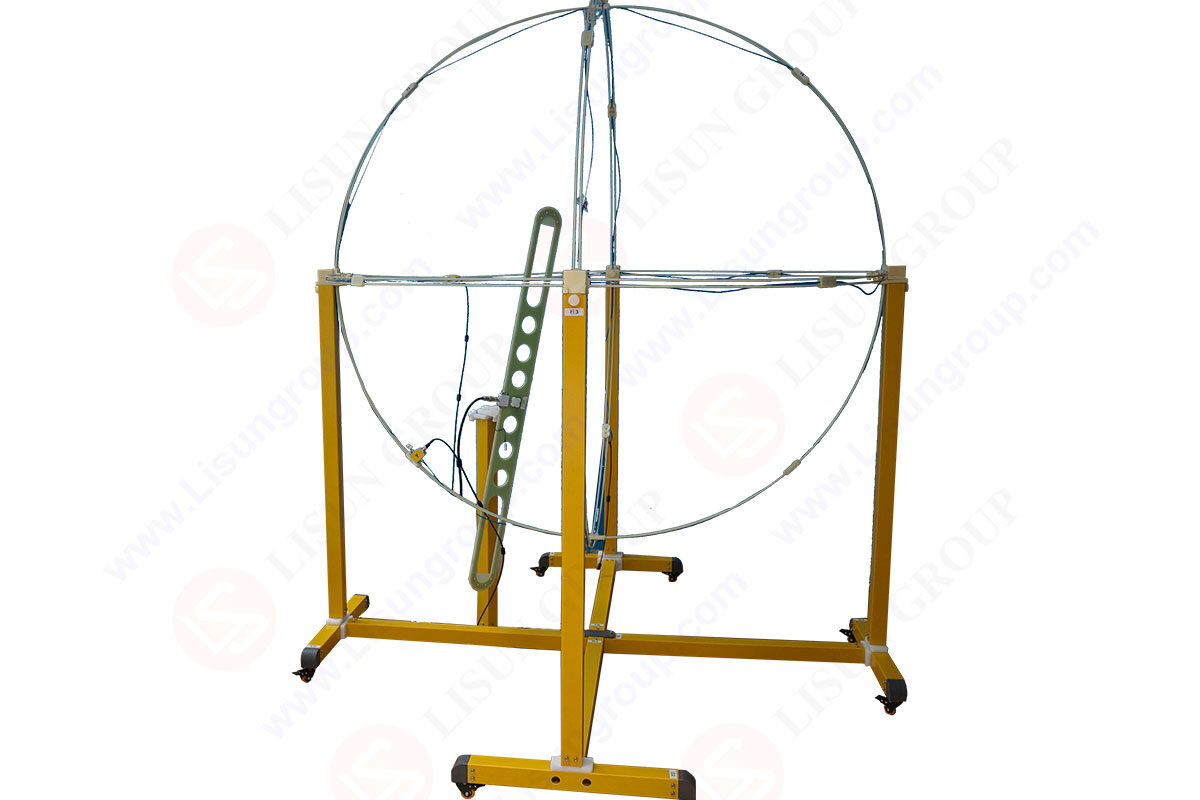

The Triple-Loop Antenna: A Detailed Overview of LISUN VVLA-30M Three Loop Antenna for EMI/EMC Testing

Introduction
In the field of electromagnetic interference (EMI) and electromagnetic compatibility (EMC) testing, antennas play a crucial role in measuring and analyzing electromagnetic fields. The triple-loop antenna is a specialized type of antenna designed for specific applications in these areas. The LISUN VVLA-30M Three Loop Antenna is a notable example of this technology, providing an efficient solution for both radiated and conducted EMI testing. This article explores the principles, applications, and performance characteristics of the triple-loop antenna, with a focus on the LISUN VVLA-30M model.

What is a Triple-Loop Antenna?
A triple-loop antenna is a type of loop antenna that consists of three interconnected loops arranged in a specific geometric configuration. The antenna’s design allows it to be sensitive to electromagnetic fields over a broad range of frequencies, making it ideal for testing various devices in EMI and EMC environments.

The three loops in the antenna are typically placed concentrically or arranged in a triangular configuration to form a specific directional pattern that enhances the antenna’s ability to detect and measure electromagnetic radiation. The multi-loop design offers advantages such as increased signal sensitivity and improved directionality compared to single-loop antennas.

Principles of Operation
The operation of a triple-loop antenna is based on the fundamental principles of electromagnetic induction. When the antenna is exposed to an electromagnetic field, the loops generate a voltage due to the changing magnetic flux. The magnitude of this induced voltage is proportional to the strength of the electromagnetic field and the orientation of the antenna relative to the field.

For EMI/EMC testing, a triple-loop antenna can be used to capture radiated emissions or to evaluate the immunity of electronic devices against external electromagnetic disturbances. The specific arrangement of the loops allows for a comprehensive measurement of electromagnetic interference across different frequencies, making it a valuable tool for evaluating compliance with international EMC standards.

Applications of the Triple-Loop Antenna
The LISUN VVLA-30M Three Loop Antenna is designed primarily for use in EMI and EMC testing. It is commonly used in laboratories and industries where compliance with international standards such as CISPR, FCC, and IEC is required. Some of the primary applications include:

• EMI Testing of Electronic Devices: The triple-loop antenna is widely used in radiated EMI testing for consumer electronics, automotive components, medical devices, and more. Its ability to detect low-frequency radiation makes it suitable for testing devices that may emit electromagnetic interference.
• EMC Testing for Certification: For manufacturers seeking to certify their products in compliance with global EMC standards, the LISUN VVLA-30M provides accurate and reliable measurements. It helps assess whether a device’s emissions exceed regulatory limits.
• Field Strength Measurements: The triple-loop antenna is used for measuring the strength of electromagnetic fields in an environment, which is essential for evaluating the potential impact of nearby radiation sources.
• Immunity Testing: It is also used for assessing the immunity of devices to external electromagnetic fields. This helps ensure that products perform reliably in environments with high levels of electromagnetic interference.

Key Features of the LISUN VVLA-30M Three Loop Antenna
The LISUN VVLA-30M Three Loop Antenna offers several key features that make it ideal for EMI and EMC testing applications:

• Wide Frequency Range: The antenna covers a broad frequency range from 30 MHz to 300 MHz, making it suitable for a variety of EMI/EMC testing scenarios.
• High Sensitivity: The triple-loop design allows for high sensitivity to electromagnetic fields, enabling the detection of even low-level emissions.
• Compact and Durable: The antenna is designed to be compact and robust, ensuring ease of use in both laboratory and field testing environments.
• Broad Application Range: It is effective in testing various devices, including electronic components, household appliances, automotive parts, and telecommunications equipment.

Technical Specifications of the LISUN VVLA-30M
To better understand the performance of the LISUN VVLA-30M Three Loop Antenna, let’s take a look at its key technical specifications.

Specification	Value
Frequency Range	30 MHz – 300 MHz
Loop Diameter	0.3 m (300 mm)
Impedance	50 Ω
Maximum Input Power	30 W
Polarization	Horizontal and Vertical
Connector Type	N-Type female
Weight	6 kg
Size (L x W x H)	600 mm x 600 mm x 600 mm
Applications	EMI/EMC Testing, Certification, Field Strength
Compliance Standards	CISPR, IEC, FCC

Performance Characteristics
The LISUN VVLA-30M is designed to deliver consistent and accurate performance across its operating frequency range. The multi-loop design enhances the antenna’s directional properties and minimizes interference from external sources, making it ideal for controlled testing environments.

• Sensitivity: The antenna exhibits high sensitivity to both radiated and conducted emissions within its frequency range, ensuring accurate measurements even for weak signals.
• Directivity: The triple-loop antenna’s configuration provides improved directional sensitivity compared to traditional single-loop antennas, enabling precise identification of radiation sources.
• Wide Bandwidth: With a frequency range from 30 MHz to 300 MHz, the antenna is capable of covering a wide array of test scenarios, from low-frequency to higher-frequency EMI testing.
• Durability: The LISUN VVLA-30M is built to withstand the demanding conditions of EMI/EMC testing, with durable materials and a robust design that ensures long-term reliability.

Advantages of the Triple-Loop Antenna in EMI/EMC Testing
Enhanced Sensitivity: The triple-loop configuration provides improved detection of electromagnetic fields compared to single-loop designs. This makes it ideal for precise EMI measurements.

• Better Directionality: The multi-loop arrangement enhances the directional characteristics of the antenna, allowing for better identification of the source of EMI.
• Wide Frequency Range: The wide frequency range of the LISUN VVLA-30M ensures that it can handle a broad spectrum of EMI/EMC testing requirements without the need for additional equipment.
• Compact Design: Despite its high performance, the LISUN VVLA-30M is compact, making it suitable for testing in confined spaces or for mobile field testing applications.
• Ease of Use: With simple connectivity options (N-Type connectors) and an intuitive setup, the LISUN VVLA-30M is user-friendly, enabling efficient operation for both novice and experienced technicians.

Conclusion
The triple-loop antenna, specifically the LISUN VVLA-30M Three Loop Antenna, is a critical tool in the realm of EMI and EMC testing. Its unique design and performance characteristics make it ideal for measuring electromagnetic fields, testing the EMI/EMC compliance of electronic devices, and evaluating their immunity to external electromagnetic disturbances. The combination of sensitivity, wide frequency range, and directional capabilities ensures that it is well-suited for both laboratory and field applications.

For manufacturers seeking to meet stringent international standards, the LISUN VVLA-30M provides an invaluable solution for ensuring their products are compliant with EMI/EMC regulations.
