Comprehensive Evaluation of the LISUN LSRF-3: A Market-Ready Solution for LED Start-Up, Run-Up, Stabilization, and Light Flicker Testing

Abstract
The rapid advancement in LED lighting technology has driven the need for precise and reliable testing systems. The LISUN LSRF-3 is a comprehensive testing solution designed to meet the rigorous demands of the LED lighting industry. This paper provides an in-depth analysis of the LSRF-3, focusing on its ability to accurately assess LED start-up, run-up, stabilization, and light flicker performance. Through a detailed examination of the system’s features and testing capabilities, we demonstrate how the LSRF-3 satisfies market requirements and supports the development of high-quality LED products.

1. Introduction
With the global shift towards energy-efficient lighting solutions, LEDs have become the predominant choice for residential, commercial, and industrial applications. The performance of LED products is critically assessed based on several parameters, including start-up time, run-up time, stabilization time, and flicker. These parameters are essential in determining the quality and reliability of LED lighting. The LISUN LSRF-3 Lamp Start, Run-Up Time, and Light Flicker Test System is engineered to meet these testing needs. This paper aims to explore the LSRF-3 system’s functionality, focusing on its compliance with industry standards and its capacity to provide accurate and reliable measurements.

2. The Importance of LED Testing

2.1 Start-Up Time

Start-up time refers to the duration required for an LED lamp to reach its full light output from the moment it is switched on. This is a critical parameter, especially in environments where immediate lighting is required, such as emergency lighting systems.

2.2 Run-Up Time

Run-up time is the period an LED lamp takes to reach a stable light output after start-up. This is particularly important for applications where consistent lighting is necessary from the outset.

2.3 Stabilization Time

Stabilization time measures the duration until an LED lamp’s light output stabilizes at a constant level. This factor is crucial in applications requiring long periods of stable illumination, such as in offices or street lighting.

2.4 Flicker

Flicker refers to the rapid fluctuation in light intensity, which can cause discomfort or health issues in sensitive individuals. It is vital to measure and control flicker to ensure LED lamps are safe and comfortable for users.

3. LISUN LSRF-3 System Overview

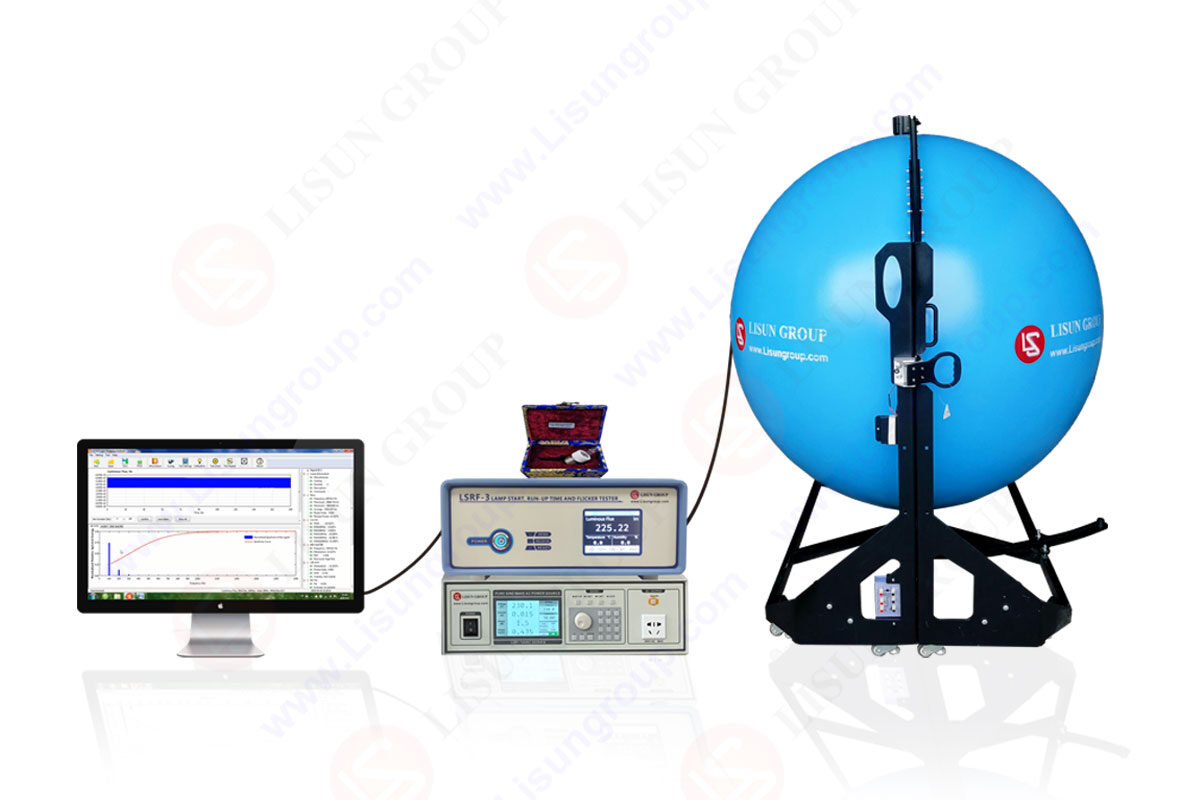

The LISUN LSRF-3 system is specifically designed to measure start-up time, run-up time, stabilization time, and flicker in LED lighting. The system’s design and functionality align with industry standards such as IEC TR 61547-1, which details the recommended practices for assessing these parameters in LED products.

3.1 Key Features of the LSRF-3

• Multi-Functionality: The LSRF-3 system is capable of simultaneously measuring start-up, run-up, and stabilization times, along with flicker parameters, making it a comprehensive solution for LED testing.
• High Precision: The system is equipped with advanced sensors and data acquisition technology to ensure high accuracy in measurements, crucial for meeting stringent industry standards.
• User-Friendly Interface: The LSRF-3 features an intuitive software interface, allowing users to easily set up tests, monitor results, and generate reports.
• Compliance with Standards: The system is designed to comply with international standards, ensuring that LED products tested with the LSRF-3 meet global quality requirements.

4. Technical Specifications
The LSRF-3 system offers a range of technical capabilities that make it suitable for comprehensive LED testing. The following table provides an overview of the key technical specifications:

Parameter	Specification
Start-Up Time Measurement	0-3 seconds (resolution: 0.001s)
Run-Up Time Measurement	0-10 minutes (resolution: 0.01s)
Stabilization Time	0-60 minutes (resolution: 0.1s)
Flicker Frequency Range	0-3000Hz
Flicker Index	0-1 (resolution: 0.001)
Data Output	Real-time display, report generation (PDF, Excel)
Standards Compliance	IEC TR 61547-1, IEC 61000-4-30
Software	Windows-compatible, intuitive user interface

5. LED Testing with the LSRF-3 System

5.1 Start-Up Time Testing

The LSRF-3 system measures start-up time with a high degree of accuracy. The system’s sensors detect the initial light output immediately after the lamp is switched on, and the software records the time taken to reach full brightness. The resolution of 0.001 seconds ensures that even the quickest start-up times are accurately captured.

5.2 Run-Up Time Testing

Run-up time is crucial for assessing the performance of LEDs in applications requiring immediate and consistent lighting. The LSRF-3 system measures the time taken from the initial light output to the point where the lamp reaches its stable light output. This measurement is crucial for evaluating the lamp’s efficiency and performance in real-world applications.

5.3 Stabilization Time Testing

The stabilization time is measured by monitoring the light output over a specified period, usually until the output stabilizes within a certain threshold. The LSRF-3’s high-resolution sensors and long measurement duration (up to 60 minutes) allow for accurate and reliable stabilization time assessments.

5.4 Flicker Testing

The LSRF-3 system is particularly adept at measuring flicker, a parameter that has gained increased attention due to its impact on human health. The system measures both flicker frequency and flicker index, providing a comprehensive assessment of flicker characteristics. The flicker index is particularly important as it quantifies the severity of flicker, which is essential for ensuring the comfort and safety of end-users.

6. Case Studies and Real-World Applications

To further illustrate the capabilities of the LSRF-3 system, several case studies and real-world applications are discussed. These examples demonstrate how the system has been utilized to assess LED products in various settings, ensuring they meet the required performance standards.

6.1 Residential LED Lighting

In residential settings, immediate start-up and minimal flicker are critical for user satisfaction. The LSRF-3 system has been used to test a range of residential LED lamps, ensuring they meet the required start-up time and flicker standards. Test results showed that high-quality residential LEDs typically have start-up times under 0.5 seconds and flicker indices below 0.1, indicating minimal discomfort to users.

6.2 Commercial LED Lighting

Commercial lighting systems, such as those used in offices and retail spaces, require stable light output and low flicker to ensure a comfortable environment. The LSRF-3 system was employed to test commercial LED products, focusing on run-up time and stabilization time. The tests revealed that commercial LEDs generally stabilize within 10 minutes, with flicker indices well within acceptable limits.

6.3 Industrial LED Lighting

Industrial applications often involve harsh conditions and extended operating hours, making stabilization time and flicker critical factors. The LSRF-3 system’s long measurement duration was particularly beneficial in these settings, allowing for accurate stabilization time assessments. The results indicated that high-quality industrial LEDs stabilize within 30 minutes, with flicker frequencies optimized to reduce potential health risks.

7. Discussion
The LISUN LSRF-3 system proves to be an invaluable tool for LED manufacturers and quality assurance professionals. By providing accurate and comprehensive measurements of start-up time, run-up time, stabilization time, and flicker, the LSRF-3 helps ensure that LED products meet both regulatory and market demands. The system’s compliance with international standards further enhances its relevance in a global market.

8. Conclusion
In conclusion, the LISUN LSRF-3 Lamp Start, Run-Up Time, and Light Flicker Test System is a market-ready solution that addresses the critical parameters necessary for evaluating LED lighting performance. Its advanced features, combined with high precision and compliance with industry standards, make it an essential tool for ensuring the quality and reliability of LED products. As the demand for energy-efficient and high-performance lighting continues to grow, the LSRF-3 system will play a crucial role in supporting the development of superior LED products.

References
LISUN Group. (2024). LSRF-3 Lamp Start, Run-Up Time, and Flicker Test System. Retrieved from https://www.lisungroup.com/products/led-test-instruments/lsrf-3-lamp-start-run-up-time-and-flicker-test-system.html

IEC TR 61547-1:2017. Electromagnetic compatibility (EMC) – Testing and measurement techniques – General immunity requirements for equipment.
