Tracking Current Test Chamber for Insulation Materials: A Comprehensive Overview of the LISUN TTC-1 Tracking Test Chamber

Introduction
In the field of electrical safety testing, the tracking resistance of insulation materials is an important criterion for evaluating their performance under high voltage and environmental stress. The phenomenon of tracking refers to the gradual deterioration of an insulating material’s surface due to leakage current, resulting in damage and potential failure. This process is of particular concern for materials used in electrical components, as it can lead to electrical faults, short circuits, and safety hazards. To address this concern, tracking current tests are employed, where specific test equipment, such as the Tracking Current Test Chamber for Insulation Materials, is used to simulate conditions that may lead to leakage tracking and assess the material’s resistance to such stress.

The LISUN TTC-1 Tracking Test Chamber is one such apparatus designed to perform leakage tracking tests in accordance with industry standards. This article explores the significance of tracking tests for insulation materials, outlines the principles and standards involved, and discusses how the LISUN TTC-1 Tracking Test Chamber is applied to evaluate insulation materials effectively.

1. The Importance of Tracking Current Tests in Electrical Safety
Insulating materials are essential in preventing electrical currents from unintentionally passing through unintended paths. However, under certain environmental conditions—such as exposure to moisture, dust, or high humidity—tracking currents may develop along the surface of insulation materials. These currents, caused by contamination or conductive materials, can erode the insulating surface, leading to catastrophic electrical failures.

Tracking current tests are therefore a crucial step in evaluating insulation materials’ performance. They help ensure the materials can withstand extended exposure to environmental stress and high voltages without succumbing to the destructive effects of leakage tracking.

2. Understanding Tracking Current and Its Effects
Tracking is a process where a conductive path forms on the surface of an insulating material due to leakage currents. This process typically occurs under the influence of electrical stress and environmental factors. The tracking phenomenon can cause:

• Surface degradation: The passage of current along the surface of insulation leads to the formation of conductive tracks, resulting in material degradation.
• Short circuits: When the surface of the insulation material becomes conductive due to tracking, the risk of short circuits and electrical hazards increases.
• Component failure: As tracking continues, it can lead to the breakdown of the material, compromising its insulation properties.
Therefore, tracking current tests help in evaluating the material’s durability and resistance to such deterioration over time.

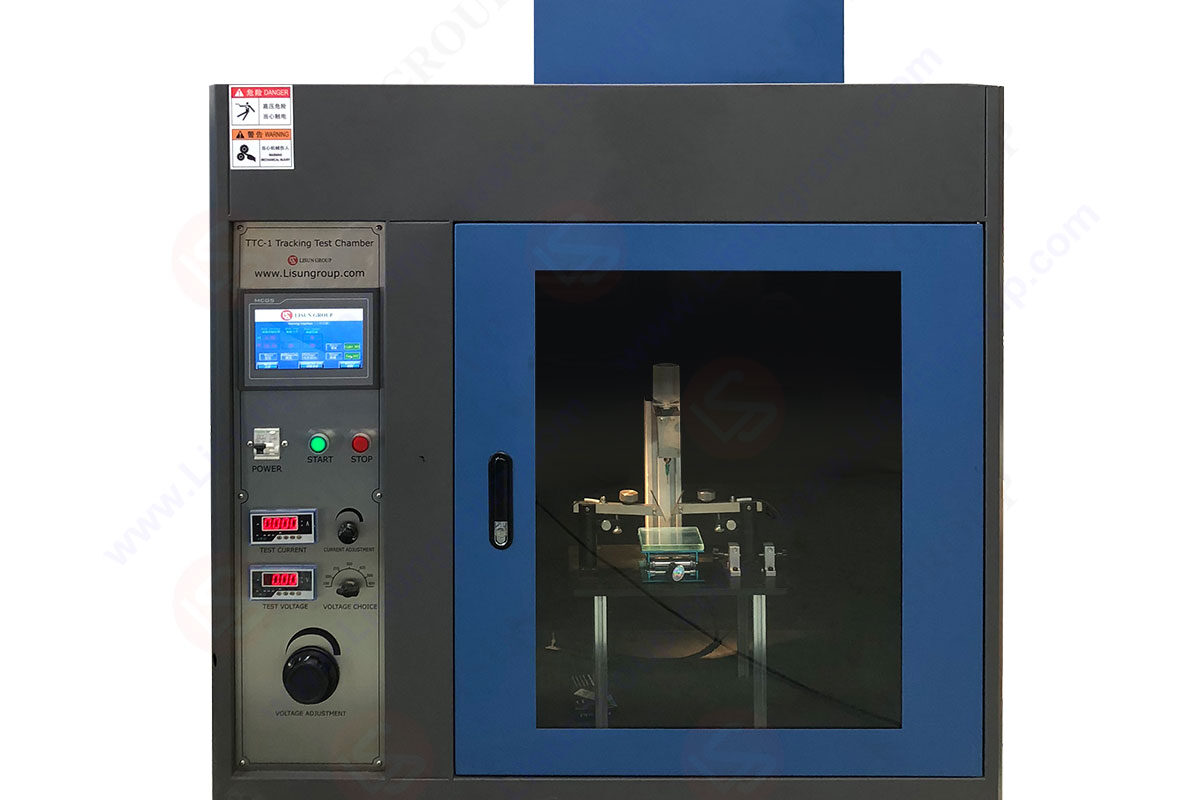

3. Overview of the LISUN TTC-1 Tracking Test Chamber
The LISUN TTC-1 Tracking Test Chamber is specifically designed to simulate conditions that promote leakage tracking in insulation materials. This chamber complies with international standards such as IEC 60112 and ASTM D2303, and is used to measure the tracking resistance of materials under electrical stress and environmental exposure. The test chamber features a controlled environment that replicates real-world conditions to assess how well a material resists the formation of tracking paths under voltage and moisture stress.

Key features of the LISUN TTC-1 Tracking Test Chamber include:

• Variable voltage control: The TTC-1 allows the adjustment of voltage levels to simulate real operational conditions.
• Moisture control: The chamber can maintain a high humidity level, simulating wet environmental conditions that contribute to leakage tracking.
• Comprehensive testing environment: The chamber offers precise control of the temperature and voltage, allowing for detailed tracking resistance testing under controlled conditions.
• Standard-compliant testing: It meets the requirements of various testing standards, including IEC 60112, which outlines procedures for evaluating the tracking resistance of solid electrical insulating materials.

4. The Testing Process Using the LISUN TTC-1 Tracking Test Chamber

The testing procedure in the Tracking Current Test Chamber for Insulation Materials involves several steps, including preparing the test specimen, setting up the chamber, and conducting the test.

4.1 Test Specimen Preparation

The first step involves preparing the specimen, typically a sample of the insulating material in question. This sample is often shaped into a specific size and format to fit the chamber’s electrodes. The specimen is thoroughly cleaned to remove any contaminants that could affect the results.

4.2 Setting the Test Chamber

Once the specimen is prepared, the LISUN TTC-1 Tracking Test Chamber is set up by configuring the following parameters:

• Voltage: The test voltage is applied to the specimen’s surface to simulate the electrical stress experienced during normal operation.
• Humidity: The chamber is set to a high humidity level to replicate conditions where moisture could contribute to the tracking process.
• Temperature: The chamber maintains a controlled temperature, ensuring that the material is exposed to realistic operational conditions.

4.3 Performing the Test

The test is conducted by applying a voltage across the specimen’s surface while controlling the environment inside the chamber. Leakage currents are allowed to pass through the material, and the time it takes for tracking to develop is measured. The test monitors:

• Tracking path formation: The formation of conductive tracks on the surface of the specimen.
• Breakdown time: The time it takes for the material to show significant degradation due to tracking.
• Current leakage: The leakage current that causes the degradation.

5. Relevant Standards and Test Methods
Several international standards guide the testing of insulation materials for tracking resistance. The most commonly referenced standards include:

• IEC 60112 (International Electrotechnical Commission): This standard specifies the methods for testing the tracking resistance of electrical insulating materials. It sets the guidelines for the voltage, temperature, humidity, and test duration required for accurate testing.
• ASTM D2303 (American Society for Testing and Materials): This standard provides procedures for the leakage tracking and erosion tests on solid electrical insulating materials.
These standards ensure that materials are tested under consistent and reliable conditions, providing manufacturers with accurate data on the insulation material’s performance in real-world environments.

6. Data and Results Interpretation
The results of the Tracking Current Test Chamber for Insulation Materials are typically presented in terms of:

• Tracking resistance: The resistance of the material to forming conductive paths under the applied voltage.
• Tracking time: The time required for a measurable tracking path to form.
• Material degradation: The extent to which the material’s surface is degraded due to tracking.
Table 1 below illustrates hypothetical test data for tracking resistance testing on different insulation materials.

Material	Test Voltage (V)	Tracking Time (hrs)	Tracking Resistance (Ω)	Comments
PVC Insulation	250	5	1,500	Resistant to short tracking
Silicone Rubber	300	3	1,200	Slight tracking degradation
EPDM Insulation	500	1	900	Shows significant degradation
Polycarbonate	400	4	1,300	Moderate resistance

7. Applications of the LISUN TTC-1 Tracking Test Chamber
The LISUN TTC-1 Tracking Test Chamber is widely used across various industries to ensure that insulation materials used in electrical components meet safety standards. Its applications include:

• Electrical component testing: Ensuring that components such as transformers, motors, and circuit breakers are safe for use in high-voltage environments.
• Cable insulation testing: Verifying the tracking resistance of cables used in electrical installations.
• Consumer electronics: Testing insulation materials used in everyday electrical appliances to prevent potential electrical failures.
• Automotive industry: Ensuring the insulation of electrical systems in vehicles can withstand high voltage and environmental conditions.

Conclusion
The Tracking Current Test Chamber for Insulation Materials, exemplified by the LISUN TTC-1 Tracking Test Chamber, plays a crucial role in evaluating the durability of insulating materials used in electrical applications. By simulating real-world conditions of voltage, humidity, and temperature, it helps manufacturers ensure that their products meet rigorous safety standards. As technology advances and the demand for reliable electrical components grows, the importance of such tests will only continue to increase, guaranteeing safer and more efficient products for consumers worldwide.
