UL 94 Flammability Test: Application of LISUN ZY-3 Needle Flame Tester in Evaluating Fire Hazards

Abstract
The UL 94 flammability test is crucial in assessing the flammability characteristics of materials used in electrical and electronic devices. This test is particularly important in identifying the risk of small flame ignition due to component failure under fault conditions. One of the key apparatuses employed in such testing is the LISUN ZY-3 Needle Flame Tester. This article explores the application of the needle flame test, its method, evaluation criteria, and the importance of testing in ensuring the safety and compliance of electrical and electronic devices. Furthermore, we provide detailed data and analysis on how materials respond to these flame tests, presenting crucial insights for manufacturers and engineers.

Introduction

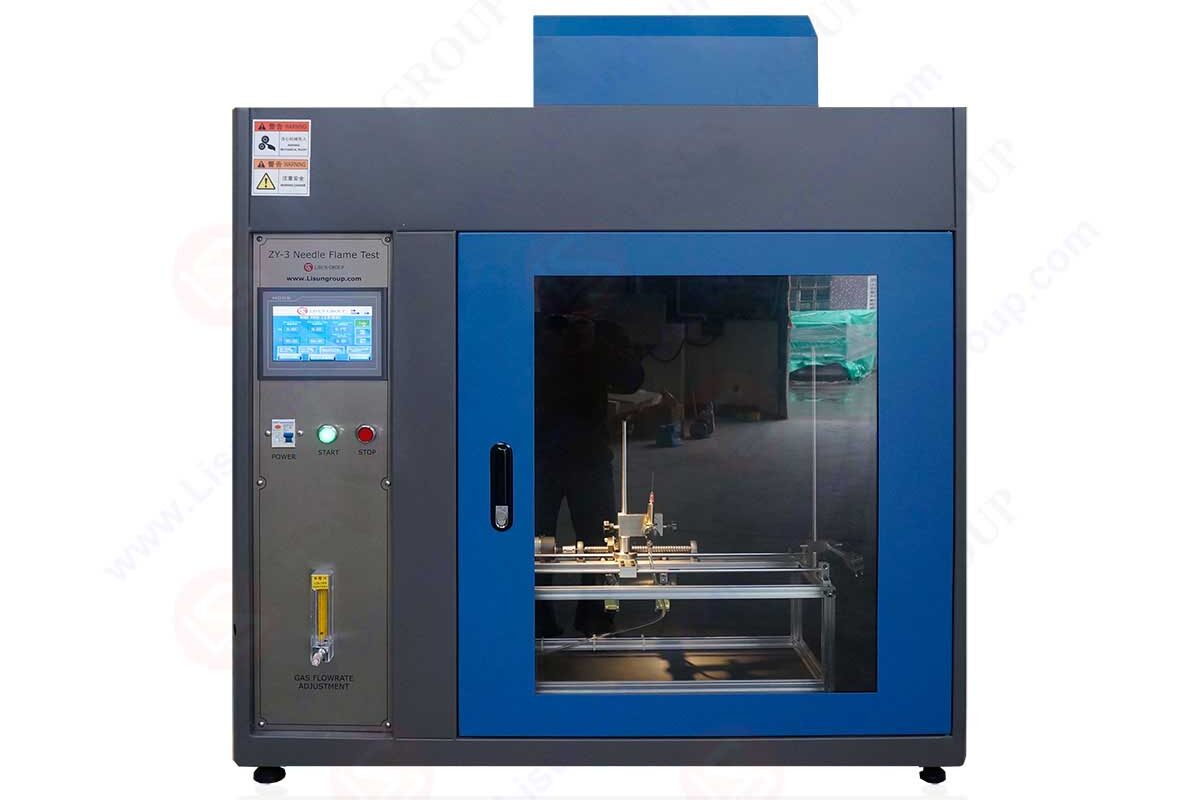

Fire safety is a paramount concern in the development and use of electrical and electronic equipment. The UL 94 flammability test plays a significant role in evaluating the ability of materials to withstand ignition and limit the spread of fire. The LISUN ZY-3 Needle Flame Tester is an essential tool used to simulate conditions where small flames, typically resulting from component failures, could pose a fire risk.

ZY-3 Needle Flame Test

This article will focus on the needle flame test performed using the LISUN ZY-3 Needle Flame Tester. The needle flame test method, test setup, and results interpretation will be discussed in detail. This article will emphasize the importance of understanding the factors that contribute to ignition and sustained burning and the significance of compliance with standards such as UL 94.

Overview of UL 94 Flammability Test
The UL 94 flammability test is a globally recognized standard for evaluating the flammability of plastic materials used in devices and appliances. It categorizes materials into various classes (such as V-0, V-1, and HB) based on their ability to extinguish a flame after ignition. The needle flame test is one of the tests used within this standard to assess the potential for small flame ignition due to electrical or mechanical failures.

Needle Flame Test Method
The LISUN ZY-3 Needle Flame Tester is specifically designed to evaluate the fire hazard posed by small flames. The test method involves using a needle-shaped burner of 0.9 mm in diameter, through which a combustible gas (typically butane or propane) is passed. The flame is applied to the test specimen at a 45-degree angle, simulating the flame that could occur within a device during a malfunction.
• Flame Application: The needle flame is applied for a specific duration, commonly between 1 and 30 seconds.
• Test Specimen Setup: The test specimen is placed on a horizontal plane with a flame-retardant pad underneath to assess the ignitability of both the material and the underlying surface.
• Observations: After flame application, the tester records whether the specimen ignites, the duration of flame spread, and whether the flame reaches a predefined length or ignites the padding below.

The table below provides an overview of test conditions and typical pass/fail criteria:

Evaluation Criteria
During the needle flame test, various factors are evaluated to determine the potential fire hazard:
• Ignition Time: How quickly the material ignites when exposed to the flame.
• After Flame Time: The time the material continues to burn after the flame is removed.
• Afterglow Time: The time the material continues to glow without flames.
• Burning Length: The extent to which the material burns or chars.
• Pad Ignition: Whether the flame spread to the underlying flame-retardant pad.

Based on these factors, materials are classified according to their fire safety characteristics. A material that self-extinguishes quickly and does not ignite the pad is rated more favorably than one that sustains a flame or allows flame propagation.

LISUN ZY-3 Needle Flame Tester Features
The LISUN ZY-3 Needle Flame Tester is equipped with several key features that make it ideal for UL 94 flammability testing:
• Automatic Timing: The tester includes precise timing controls to ensure that flame application times are consistent across tests.
• Adjustable Gas Flow: It allows for fine-tuning of the gas flow to maintain a consistent flame size and temperature, as required by testing standards.
• Safety Features: The device is equipped with safety interlocks and automatic gas shutoff features to prevent accidents during testing.
• Data Logging: The system can log test parameters and results, providing a clear record for quality control and compliance verification.

Test Procedure
The needle flame test procedure can be broken down into several key steps:
Test Preparation: The material specimen is mounted securely, ensuring that it remains in position during flame application. The needle flame burner is preheated and adjusted to the appropriate flame height.
Flame Application: The flame is applied to the specimen at a 45-degree angle for the specified time (e.g., 10 seconds). The test is repeated multiple times at different locations on the specimen.
Post-Flame Observation: After the flame is removed, the specimen is observed to record after flame time, afterglow time, and any ignition of the pad.
Final Evaluation: The data collected from the test, including ignition time, after flame time, and burning length, is analyzed to determine the material’s fire resistance rating.

Data and Results
The following table illustrates a sample data set obtained during the needle flame test of a plastic specimen using the LISUN ZY-3 Needle Flame Tester:

In this example, the specimen ignited in all cases but self-extinguished in most trials, with no pad ignition except during the 20-second flame application. This indicates that the material could be suitable for use in low-flame risk applications but may require additional treatment or protection in higher-risk environments.

Conclusion
The UL 94 flammability test is critical for evaluating the safety of materials used in electrical and electronic products. The LISUN ZY-3 Needle Flame Tester provides an accurate and reliable method for assessing the risk of ignition and flame propagation under fault conditions. Manufacturers must rigorously test materials to meet fire safety standards, minimizing the risk of fire hazards.

The data gathered through needle flame testing helps engineers select appropriate materials for devices, ensuring they meet UL 94 standards and provide adequate protection against small flame ignition. In conclusion, the LISUN ZY-3 Needle Flame Tester is an essential tool for conducting the UL 94 flammability test, ensuring compliance with safety regulations, and promoting safer product designs.
